2-way power distributor BANGKOK

Robust Energy Distributor Made of Stainless Steel

The BANGKOK energy distributor from Heitronic impresses with its high-quality housing made of brushed V2A stainless steel (stainless steel 304) and plastic. This combination ensures a particularly durable and resilient construction. With compact dimensions of 12.7 x 30 x 12.7 cm, the distributor is space-saving and can be mounted flexibly. The surface is brushed stainless steel, which is not only visually appealing but also easy to maintain and corrosion-resistant.

Practical Features with Child Protection and Spring Covers

The distributor features two Schuko sockets, each positioned on the front and back. Each socket is equipped with child protection, which provides increased safety and minimizes the risk of accidents caused by contact. Additionally, the sockets are fitted with spring-loaded flap covers that protect them from dust and splashing water. This thoughtful equipment makes the energy distributor especially user-friendly and safe.

Technical Details and Performance

The energy distributor operates at a supply voltage of 230 volts AC with a mains frequency of 50/60 Hz. The maximum current rating is 16 amperes, enabling a power output of up to 3680 watts. Connection is made via an internal 3-pole screw terminal, which ensures a secure and reliable connection. Protection class 1 and IP44 rating provide protection against splashing water and dirt, thus optimally protecting the electrical components.

Easy Installation and Extensive Accessories

The installation of the energy distributor is carried out via surface mounting with four fastening holes on the base plate. Suitable mounting accessories are included in the scope of delivery, so installation is quick and uncomplicated. The child protection and spring flap covers are already integrated, so no additional components are required. The connection cable is not included but can be purchased separately.

Flexible Applications and Variants

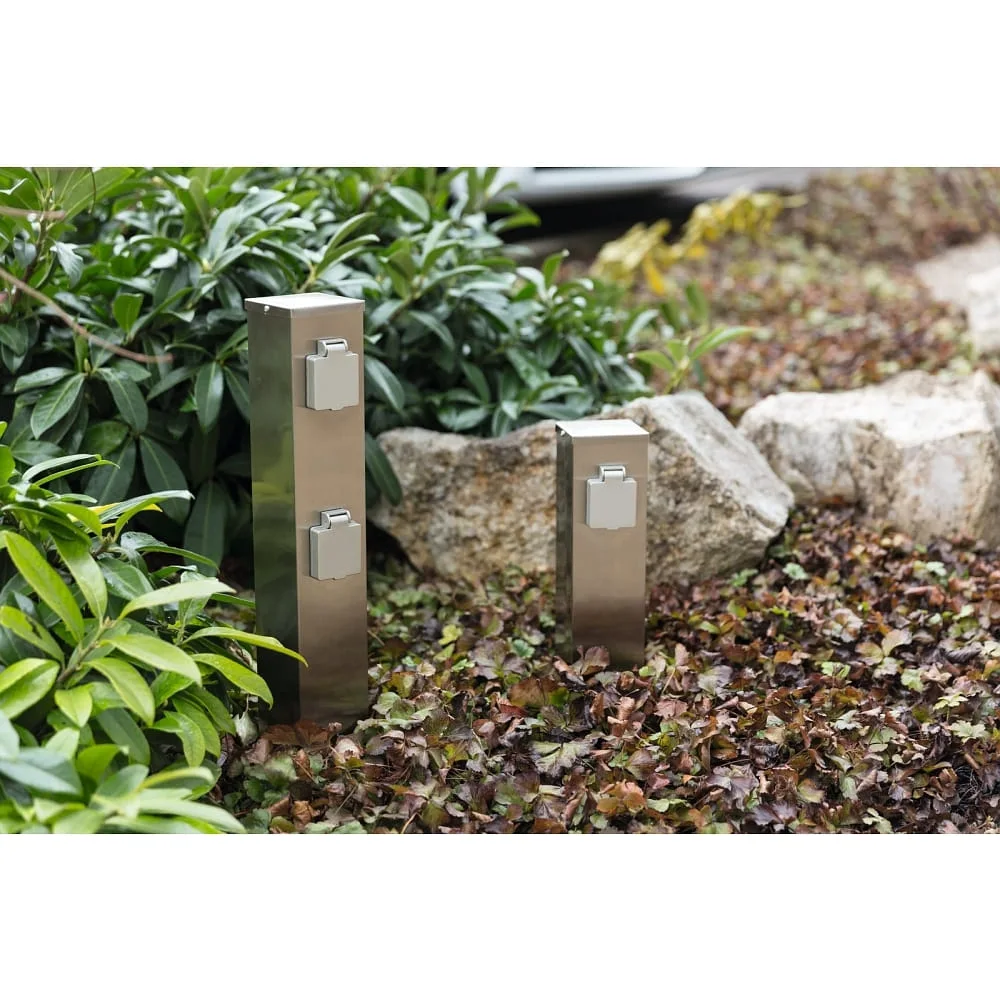

The compact energy distributor is ideal for various applications and is also available in versions with four sockets. In addition to the standard stainless steel version, there is also a variant with an anthracite powder-coated housing, which has slightly different dimensions. This product thus offers a flexible solution for different requirements and ensures a safe and practical power supply.
