3-phase spot TRACKSPOT P swivelling, suitable for VDU workstation IP20, black dimmable

High-Quality LED 3-Phase Spotlight with Efficient Light Output

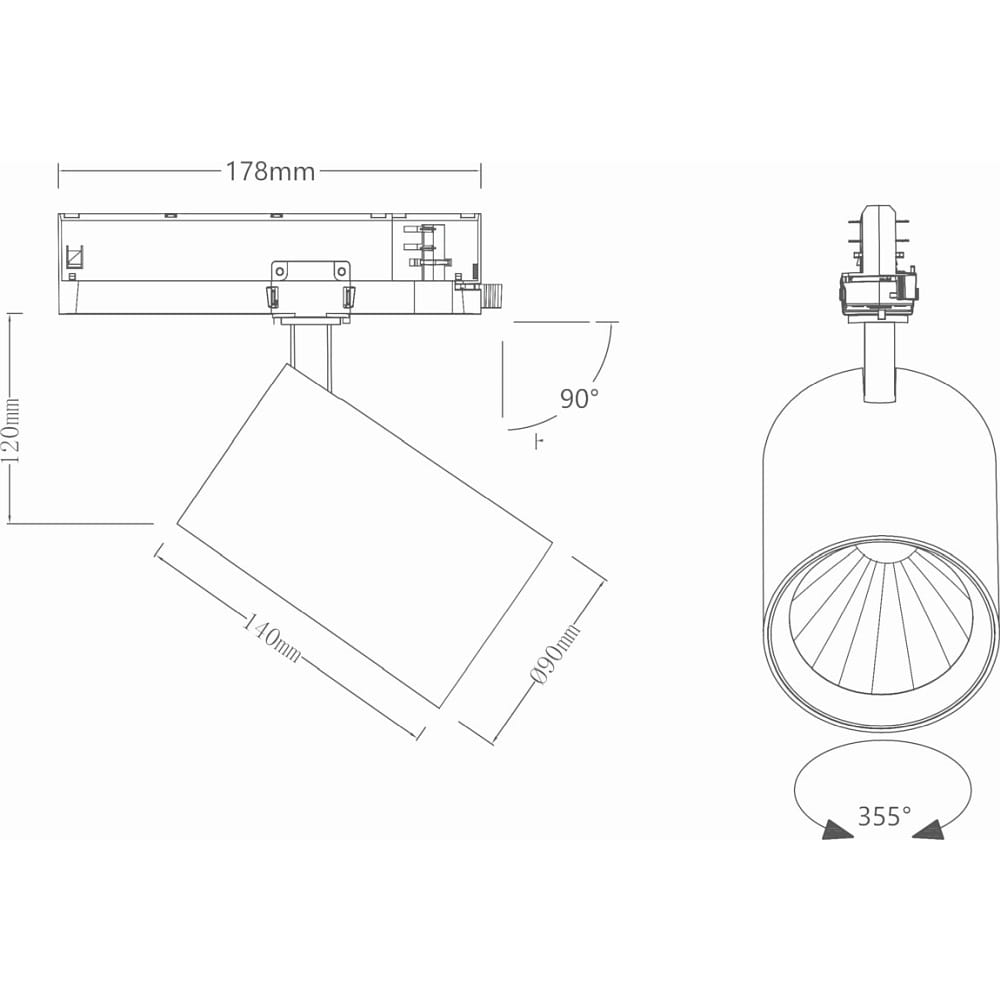

The LED 3-phase spotlight TRACKSPOT P from SLV impresses with its compact design measuring 17.3 x 17.8 x 14 cm and its elegant black aluminum housing. With a power consumption of only 12 watts, it offers a remarkable luminous efficacy of 153 lumens per watt, resulting in a strong luminous flux of up to 5843 lumens. The warm white light color at 3000 Kelvin creates a pleasant and inviting atmosphere. This model is equipped with an adjustable lamp head that allows flexible orientation of the light beam.

Flexibility through Dimmable DALI Control System

The spotlight features DALI and DALI-2 dimmability, allowing stepless adjustment of light intensity. This enables the light to be individually adapted to different requirements and moods. Control is handled via the LED driver, which is current-controlled and can be easily replaced if necessary. This accessory is already included in the scope of delivery, ensuring quick and uncomplicated installation.

Precise Light Beam and Versatile Beam Angles

With a beam angle of 47 degrees, the TRACKSPOT P provides a wide light cone that ensures even illumination. Additionally, the spotlight can be adjusted between 40 and 80 degrees, increasing flexibility in light design. Thanks to the swiveling function, the light beam can be optimally directed to highlight or illuminate specific areas.

Technical Safety and Easy Installation

The spotlight complies with protection class 2 and features IP20 protection rating, protecting it against finger contact. The operating voltage is between 220 and 240 volts, and the connection is made via a track adapter, which allows for easy and secure mounting on existing 3-phase tracks. The maximum number of luminaires that can be operated on one circuit breaker is 27 with B16 and 44 with C16, allowing flexible planning of lighting systems.

Optimal Conditions for Use and Versatile Applications

The spotlight is designed for ambient temperatures between -20 and 35 degrees Celsius, ensuring reliable operation under various conditions. With only one luminaire per device and the possibility to individually adjust the luminous flux, the TRACKSPOT P is ideal for targeted lighting. Additionally, it is particularly suitable for workspaces requiring glare-free lighting due to its suitability for screen workstations.
