bluetooth wall controller CASAMBI RTE4NBT230 MINI 4-fold, built-in version, black

Compact CASAMBI-enabled Bluetooth switch interface for flush-mounted wall box installation

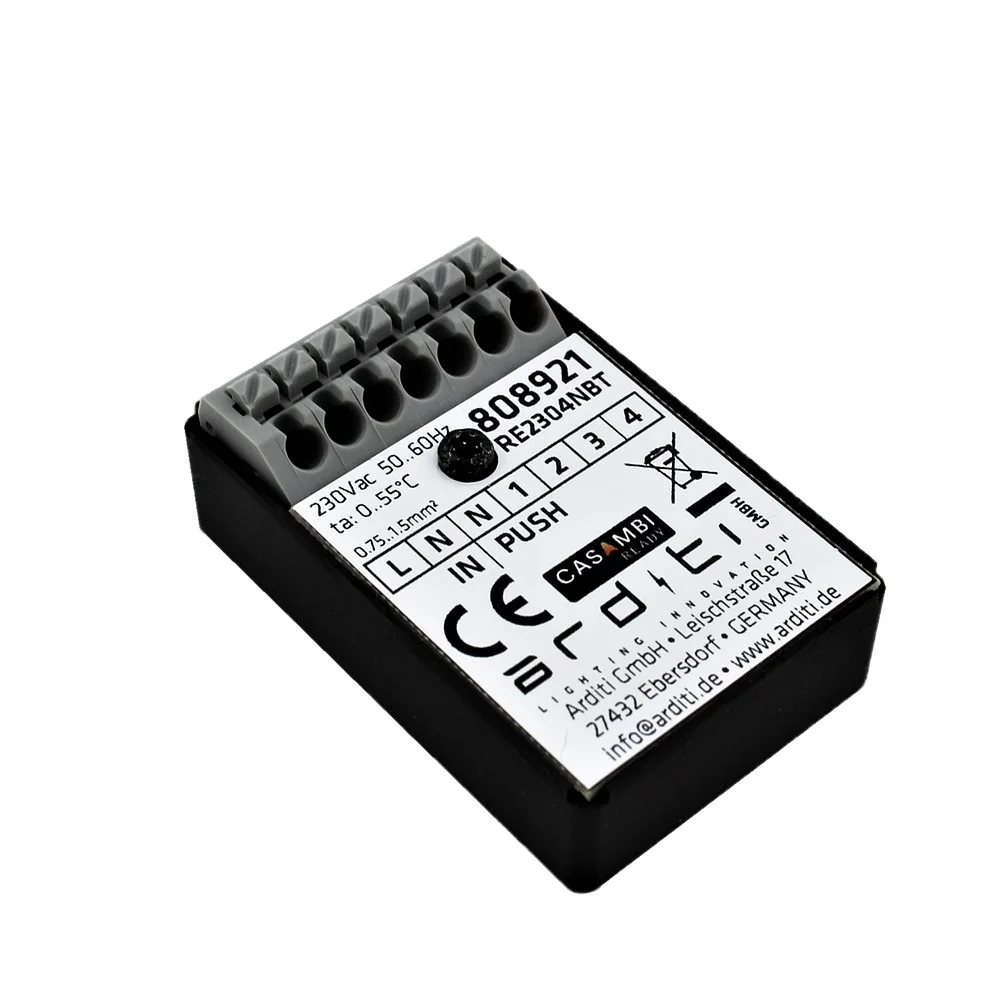

The Bluetooth switch interface CASAMBI RE2304NBT MINI is a practical device designed for flush-mounted installation. With 4 inputs for switches and an output for CASAMBI, it offers versatile options for controlling lights and other devices. The compact size of 2.9 x 4.5 x 1.7 cm allows for discreet integration into your living spaces. The article number is: ARD-808921.

Freely programmable inputs for up to 4 wall switches

The switch interface has 4 inputs for switches that are freely programmable. These contacts can be used to control the wireless output. With a maximum operating voltage of 100-240V~, the device is flexible to use. Connection cables, mounting housing, switches, and remote controls are optional, while the Bluetooth module is included in the package.

Control scenes, lights, and light colors with the CASAMBI app

With the CASAMBI Bluetooth switch interface, you can control scenes, lights, light colors, and much more. Using the CASAMBI app allows for easy configuration and customization of settings. The range of the wireless signal is up to 30 meters, enabling flexible remote control.

Integrated short-circuit protection and dimmable function

The switch interface has integrated short-circuit protection, ensuring safe use. The dimmability of the device allows for individual adjustment of light intensity. With a maximum current consumption of 2mA and an operating temperature of 0 to +55°C, the device is reliable and efficient.

Versatile and easy to configure

The CASAMBI Bluetooth switch interface is versatile and easy to configure. With plug and clamp connections, installation is straightforward and quick. The compact design and the option for individual programming make the device an ideal solution for controlling lights and other devices in your living spaces.
