CASAMBI controller Bluetooth controller cBU-PWM4, input: 12-24V DC, 72W / 144 w /

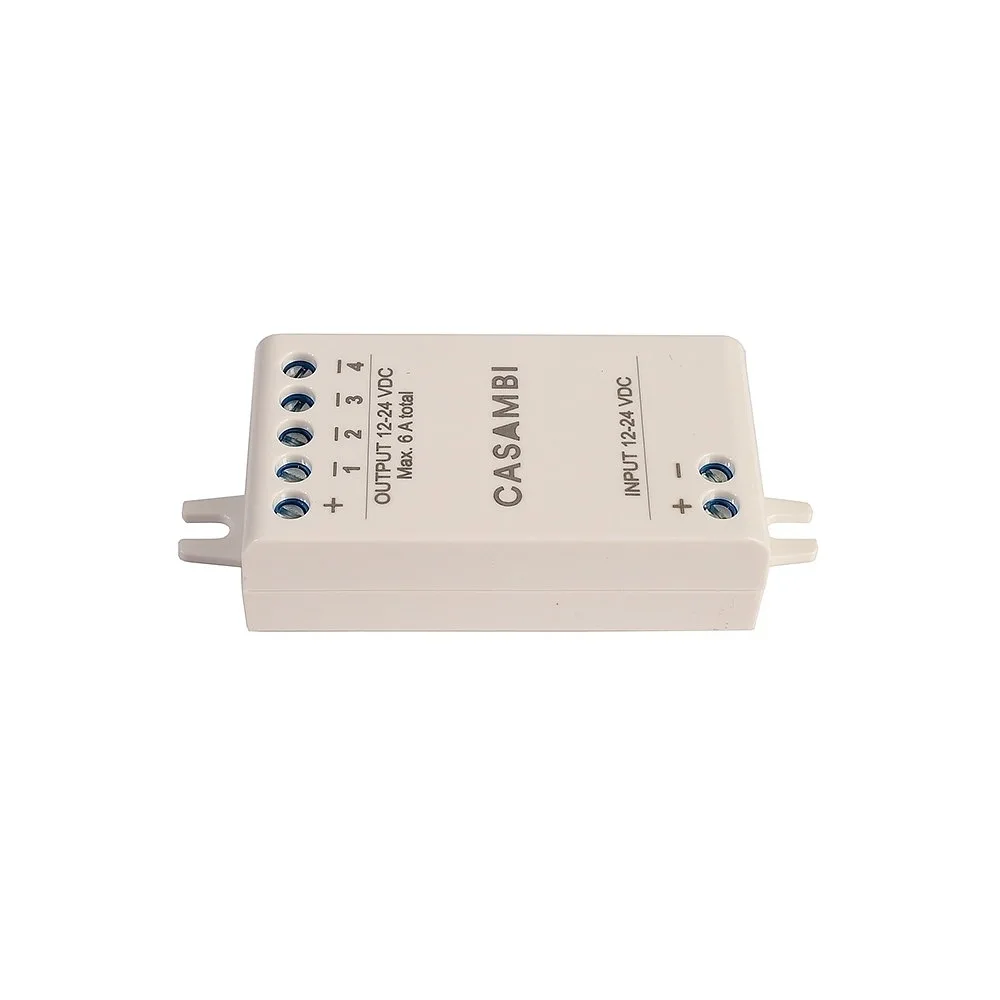

CASAMBI LED Bluetooth Controller CBU-PWM4

The CASAMBI LED Bluetooth Controller CBU-PWM4 is a four-channel PWM dimmer designed for constant voltage LED loads such as LED strips and constant voltage LED modules. With an operating voltage of 12-24V DC and a power consumption of 72W / 144W, this dimmer is versatile and suitable for various applications.

Technical Details

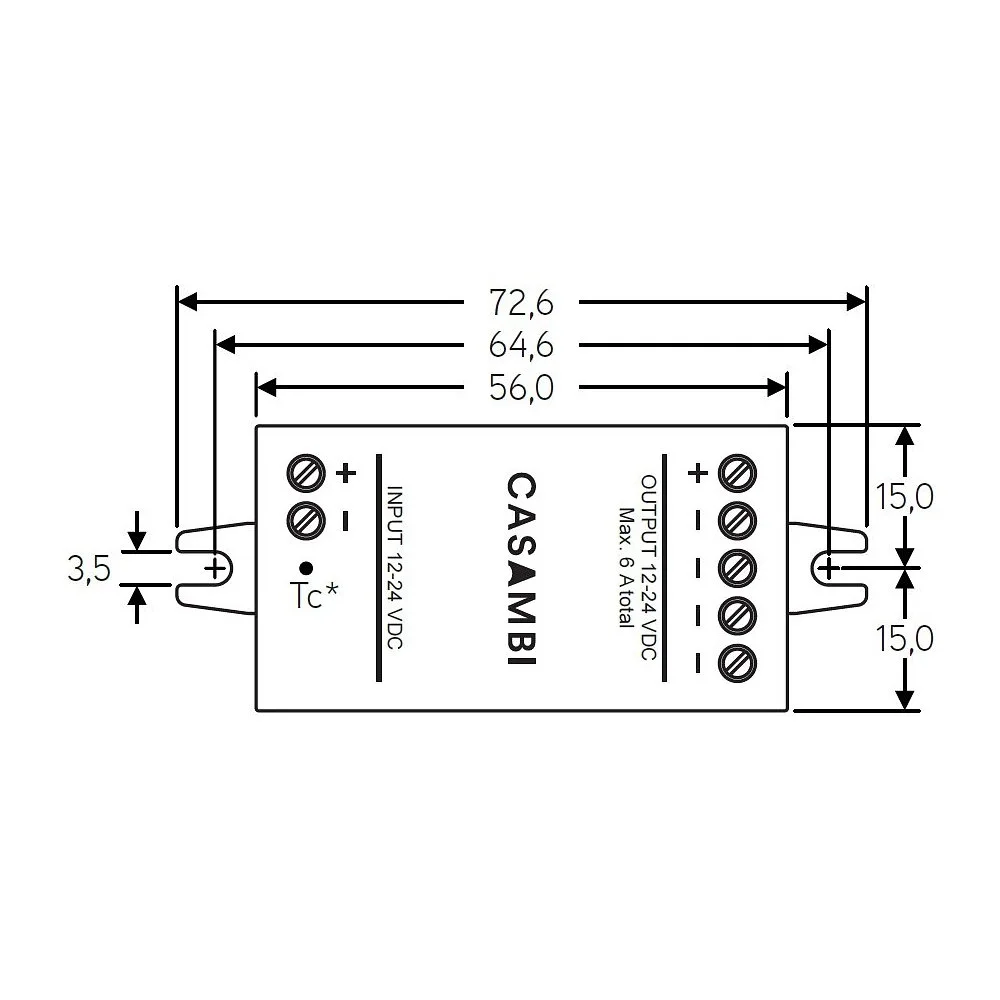

The CASAMBI LED Bluetooth Controller CBU-PWM4 has dimensions of 7.26 x 3 x 1.8 cm and is available in white color. It has a protection rating of IP20 and a maximum current load of 6A. With a simple and straightforward installation using a terminal block for power connection.

Control Options

The CBU-PWM4 can be controlled via Bluetooth using the Casambi app, which can be downloaded for free from the Apple App Store and Google Play Store. This dimmer can control up to four channels and is ideal for RGBW and tunable white (TW) applications.

Safety and Reliability

The CASAMBI LED Bluetooth Controller CBU-PWM4 is protected against overvoltage and overcurrent, ensuring safe operation. With a protection class of 3 and a current rating of 6A, this dimmer provides reliable performance.

Applications

The CBU-PWM4 is suitable for indoor use only and can enable smart lighting control. With the ability to integrate up to 127 units into a smart mesh network, this dimmer is ideal for a variety of applications.
