ceiling recessed luminaire KADUX TRIPLE square IP20, black dimmable

Modern Design and High-Quality Materials

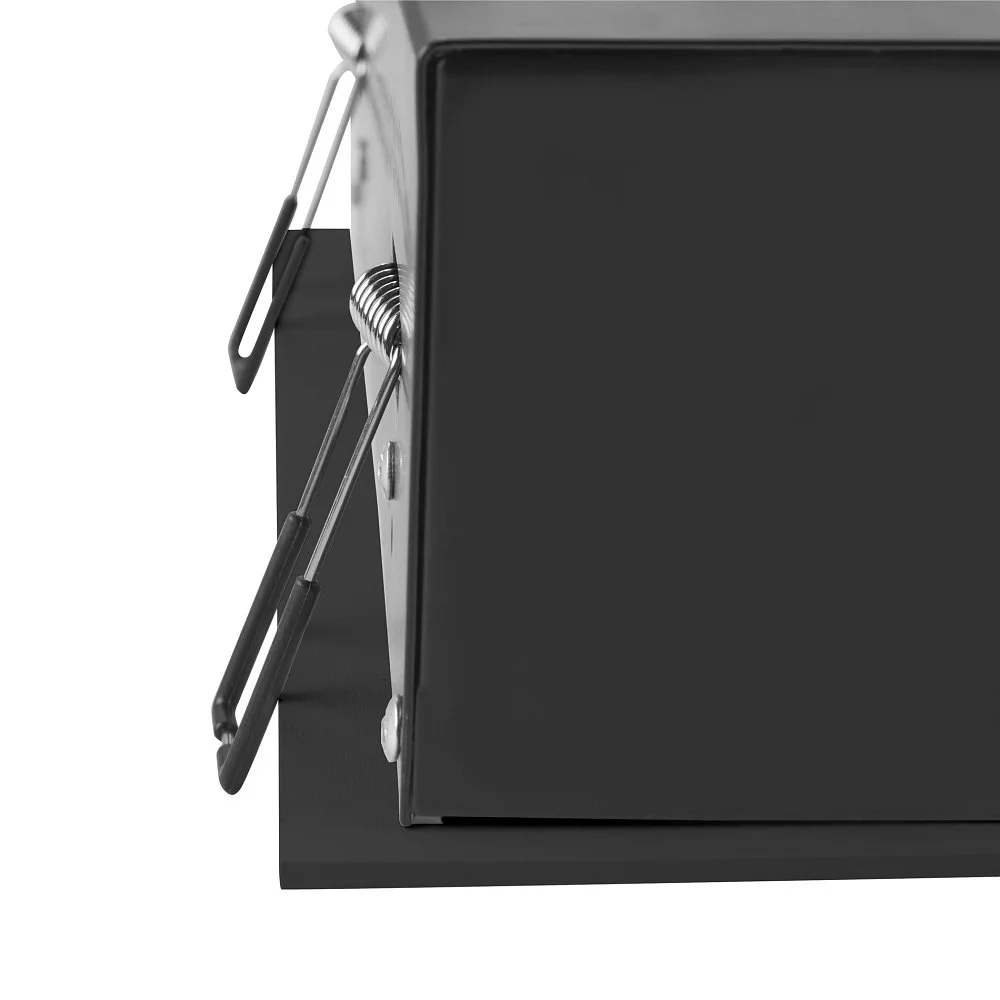

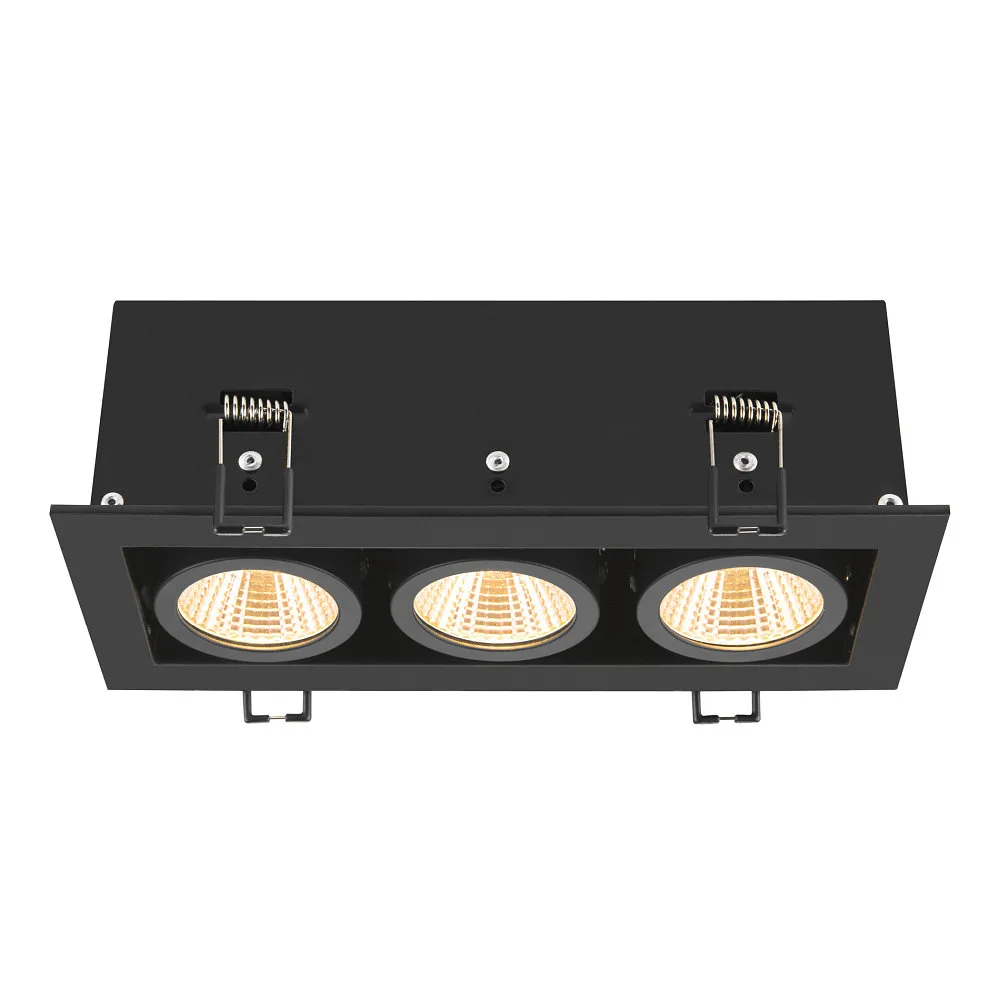

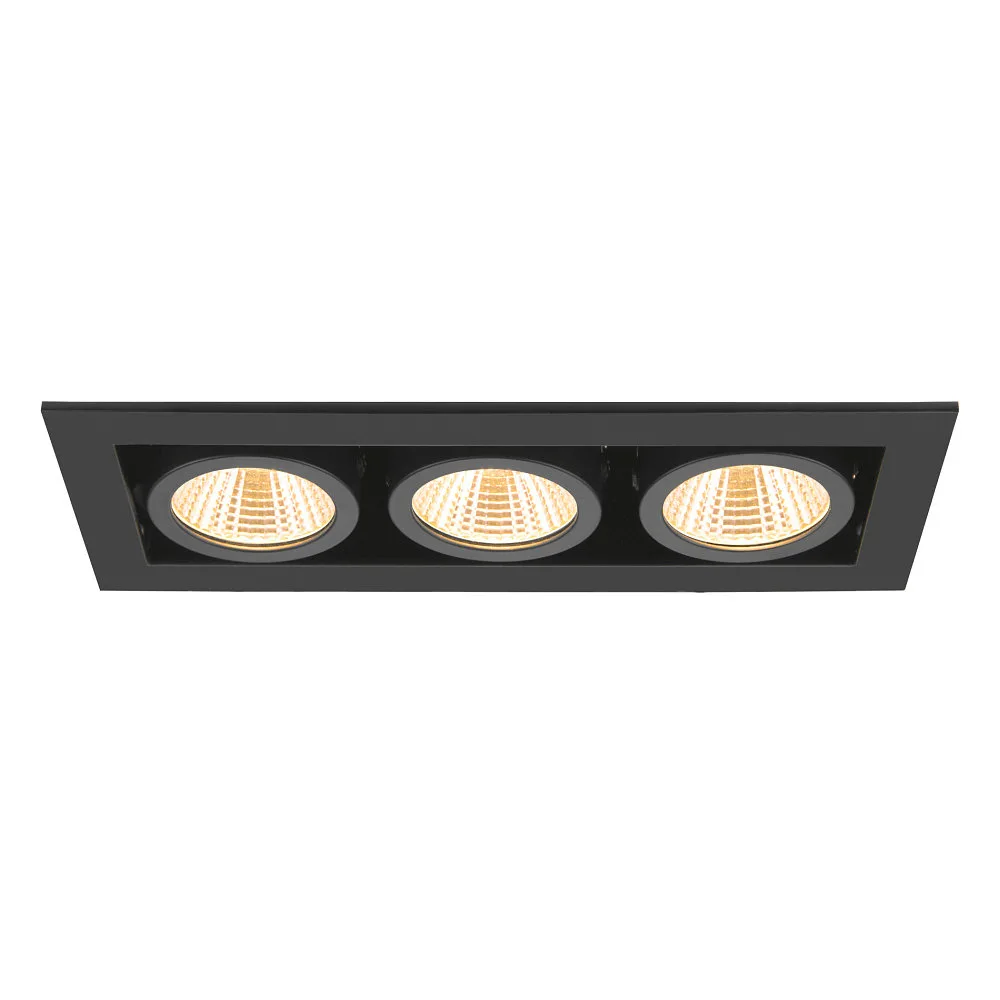

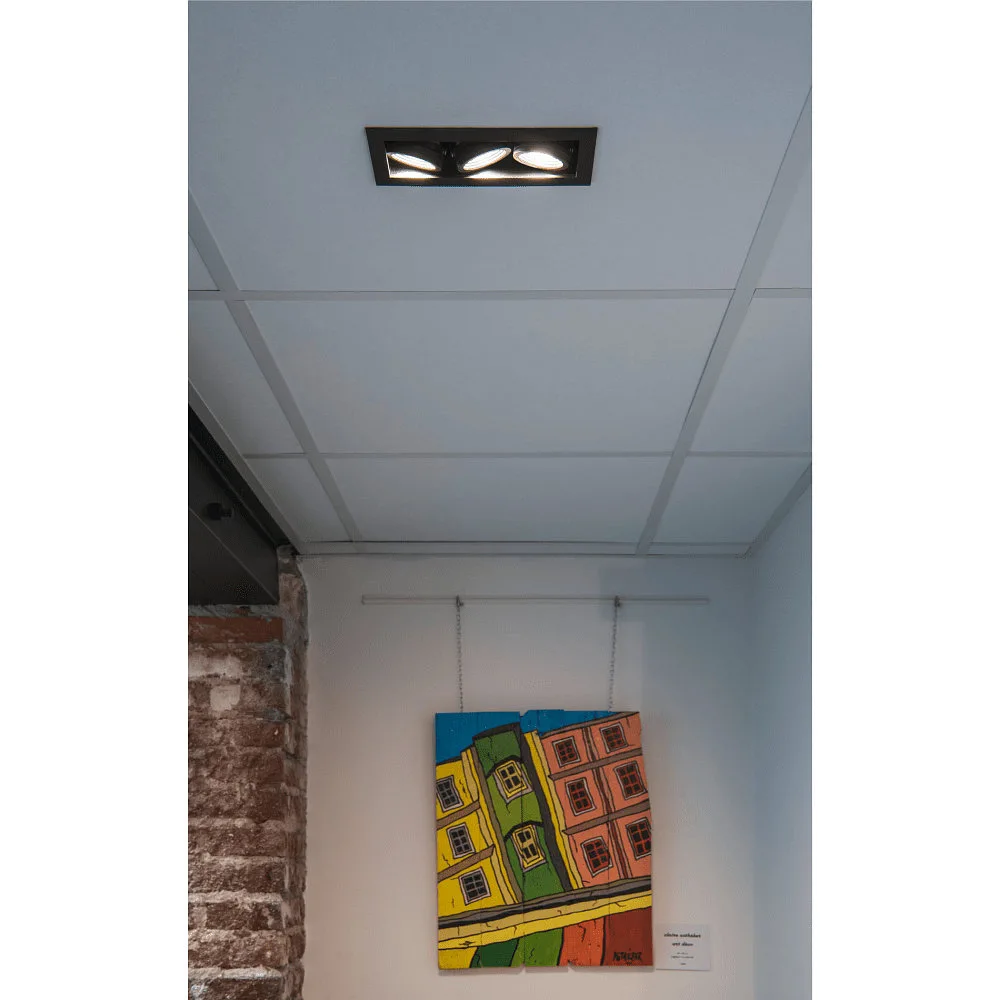

The KADUX TRIPLE PHASE LED recessed ceiling spotlight impresses with its rectangular housing, made of robust aluminum and steel and painted. With dimensions of 21 x 9 x 8.3 cm, the luminaire integrates unobtrusively into ceilings. The visible part measures only 21 x 9 x 0.3 cm, ensuring an elegant appearance. The slim design is complemented by the black color scheme, while a version with a white frame and black inner surfaces is also available. Four integrated clip springs facilitate installation and provide secure hold.

Efficient and Flexible Lighting

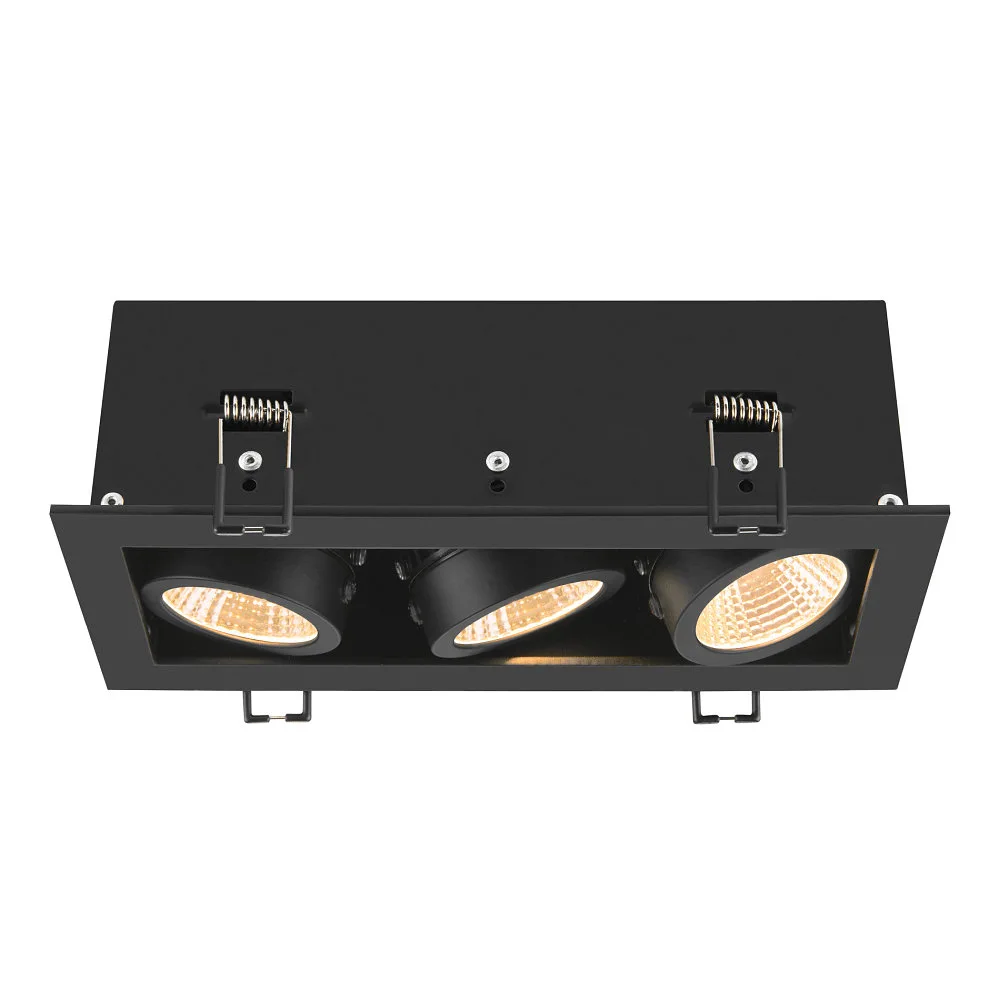

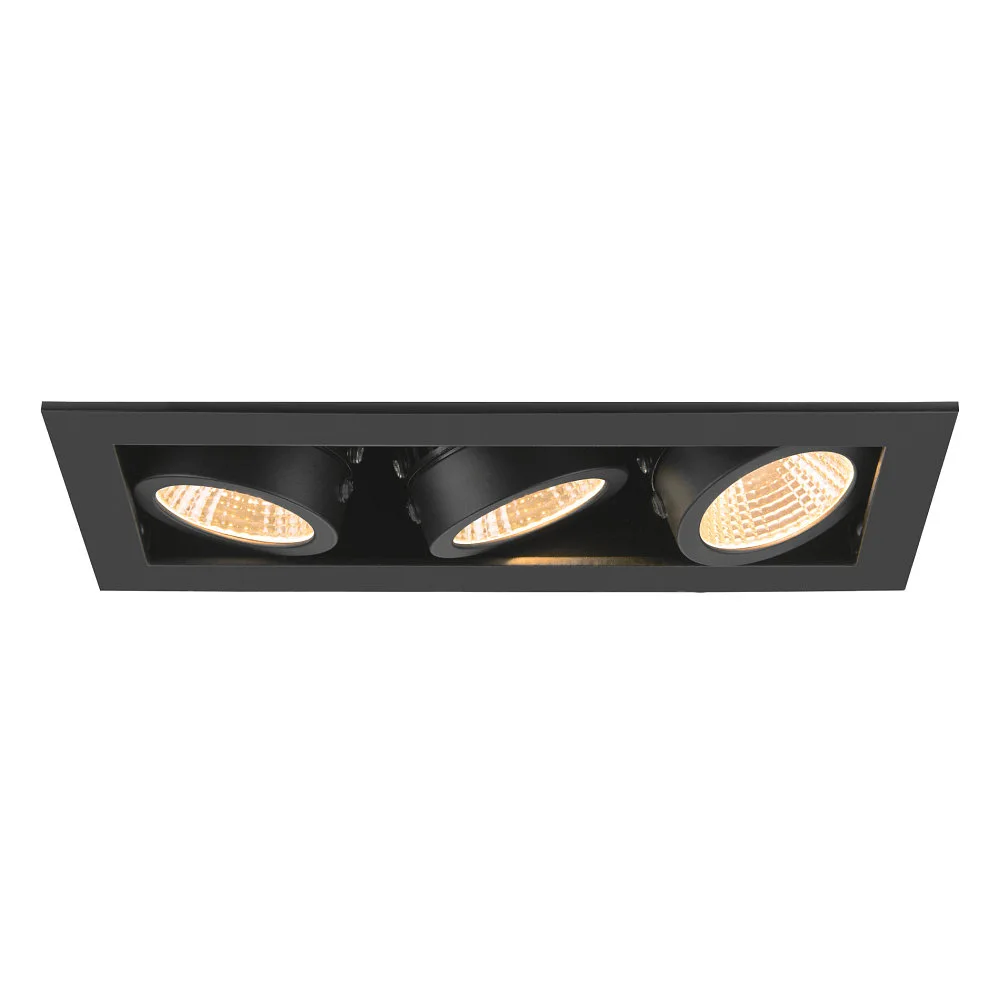

The spotlight features three swivel lamp heads, each adjustable 20° to both sides. This allows the light to be directed precisely and adapted to individual requirements. With a total power of 20 watts, the recessed spotlight produces a luminous flux of 2350 lumens at a warm white color temperature of 3000 Kelvin. The beam angle is 38°, ensuring balanced light distribution. Thanks to the high luminous efficacy of 117.5 lumens per watt, the lighting is particularly energy-efficient.

Excellent Light Quality and Dimmability

The luminaire convinces with a very high color rendering index of over 90 Ra, making colors appear natural and brilliant. The warm white light creates a pleasant atmosphere and is ideal for accent lighting or general illumination. Furthermore, the spotlight is dimmable and supports both phase-cut (leading edge) and phase-cut (trailing edge) dimming. This allows the light intensity to be flexibly regulated and individually adapted to the desired mood.

Technical Details and Safety

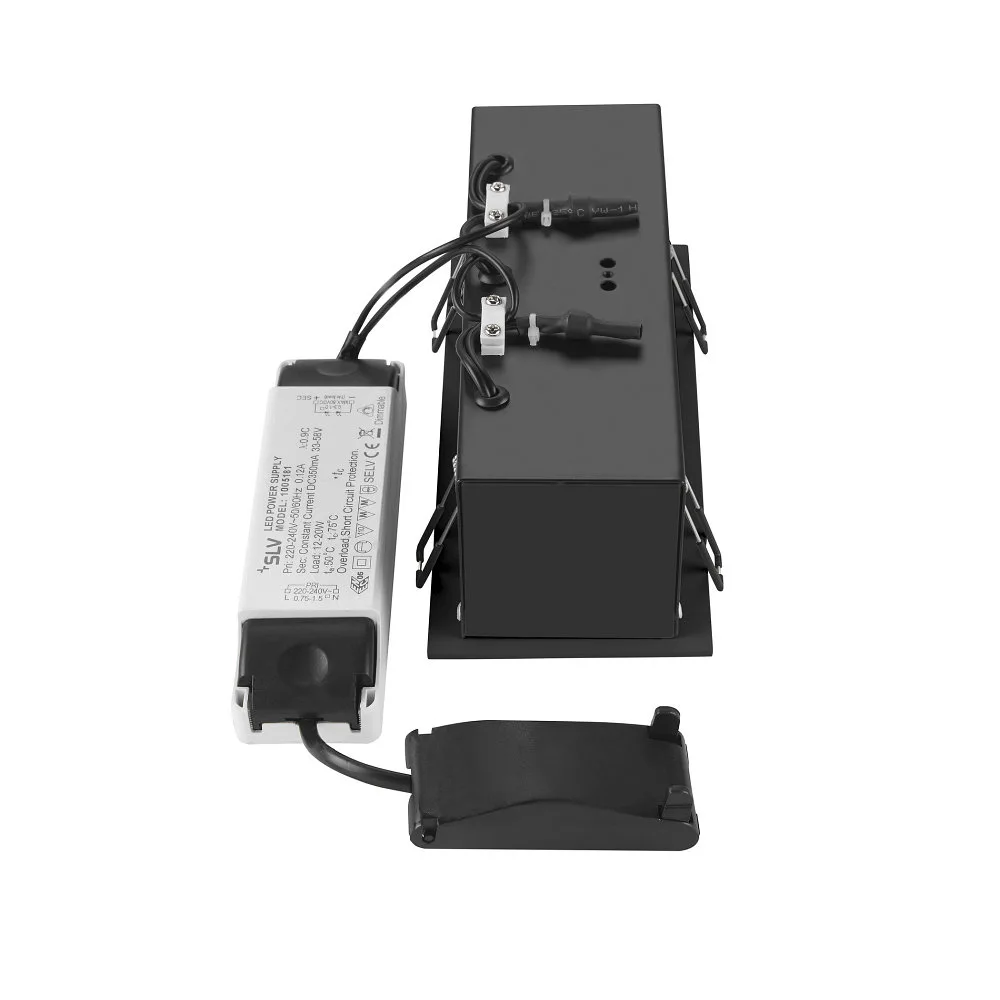

The KADUX TRIPLE PHASE comes with an external driver and connection box, ensuring safe conversion from 220-240V AC voltage to a constant DC current of 350mA. The low-voltage operation from the output of the driver guarantees additional protection. The current consumption is 350mA, the protection class is 2, and the IP20 certification protects against contact and solid foreign objects larger than 12.5 mm. The luminaire is designed for an ambient temperature from -20 to +40 °C and has an average lifespan of 50,000 hours, which speaks for a long service life.

Versatile Applications and Series Expansion

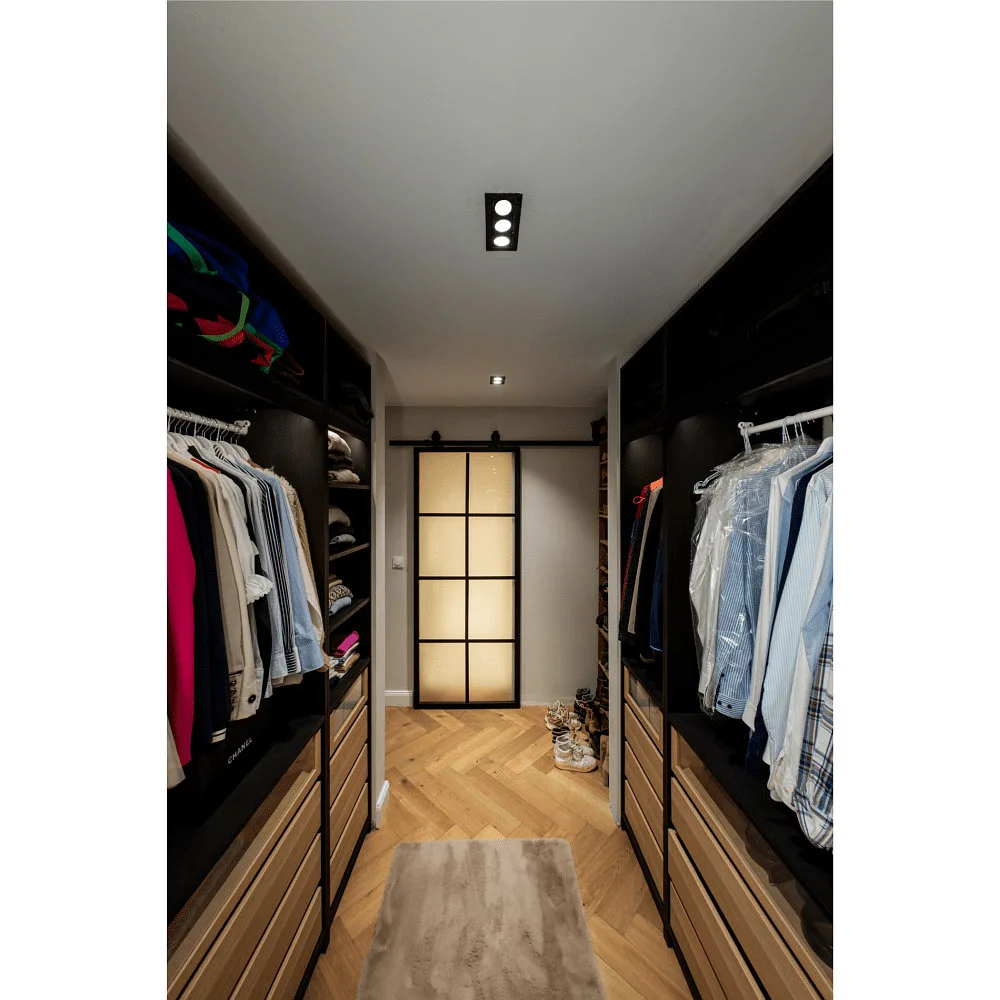

The recessed spotlight is suitable for various indoor areas and is part of the KADUX series, which also includes single- or double-flame versions as well as variants with interchangeable reflector lamps. This allows customers to choose the appropriate solution according to their needs and style. Installation is done by mounting in cavity ceilings with a maximum material thickness of 3 cm. A light distribution curve can be requested if desired to better plan the lighting effect. Overall, the KADUX TRIPLE PHASE offers a modern, flexible, and durable lighting solution.
