Flat surface mount LED luminaire LED Top-Stick H, IP20, with LED 24 connecting cable, CRi> 95, 31cm, 7.5W 3000K

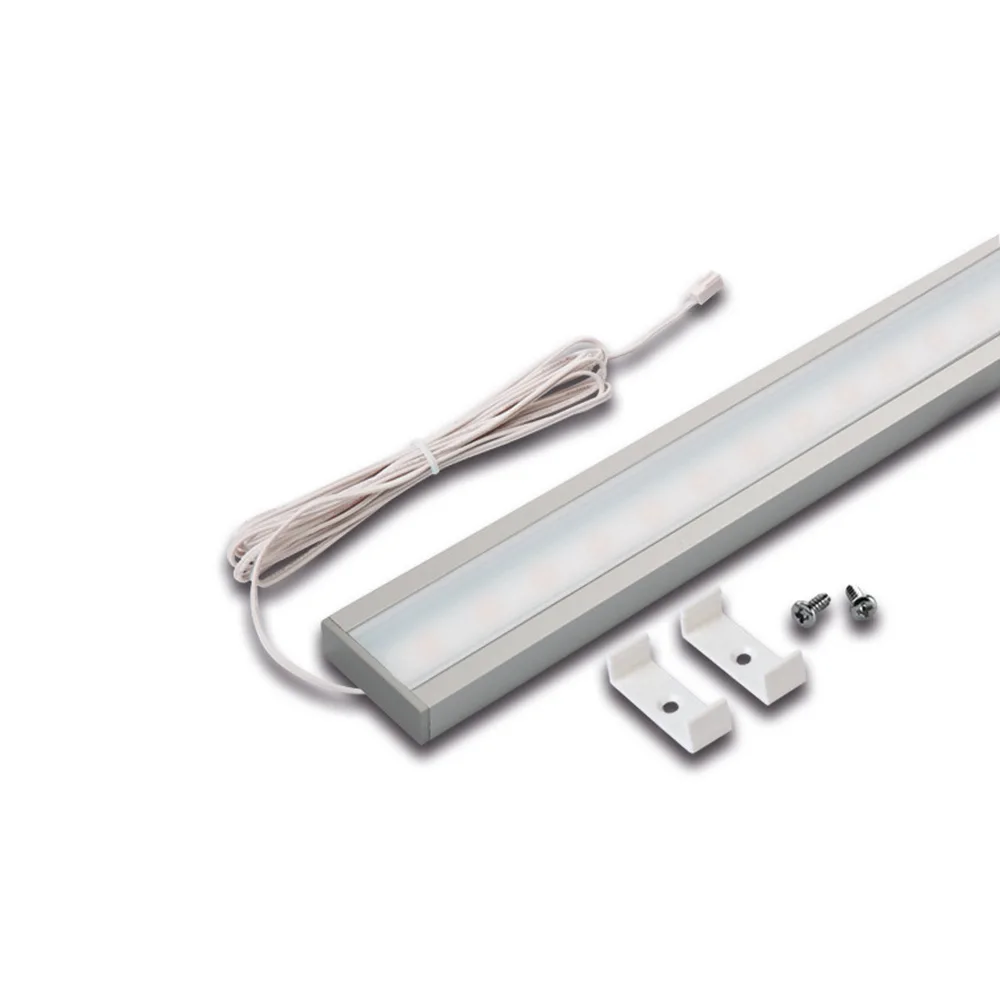

Flat LED surface-mounted luminaire LED TOP-STICK H

The flat LED surface-mounted luminaire LED TOP-STICK H from Hera is a high-quality lighting solution for indoor spaces. With a power consumption of 7.5W and a luminous flux of 405lm, it offers an excellent light output of 52lm/W. The light color is warm white and the color rendering index is 90-100Ra, ensuring very good color reproduction.

Technical details

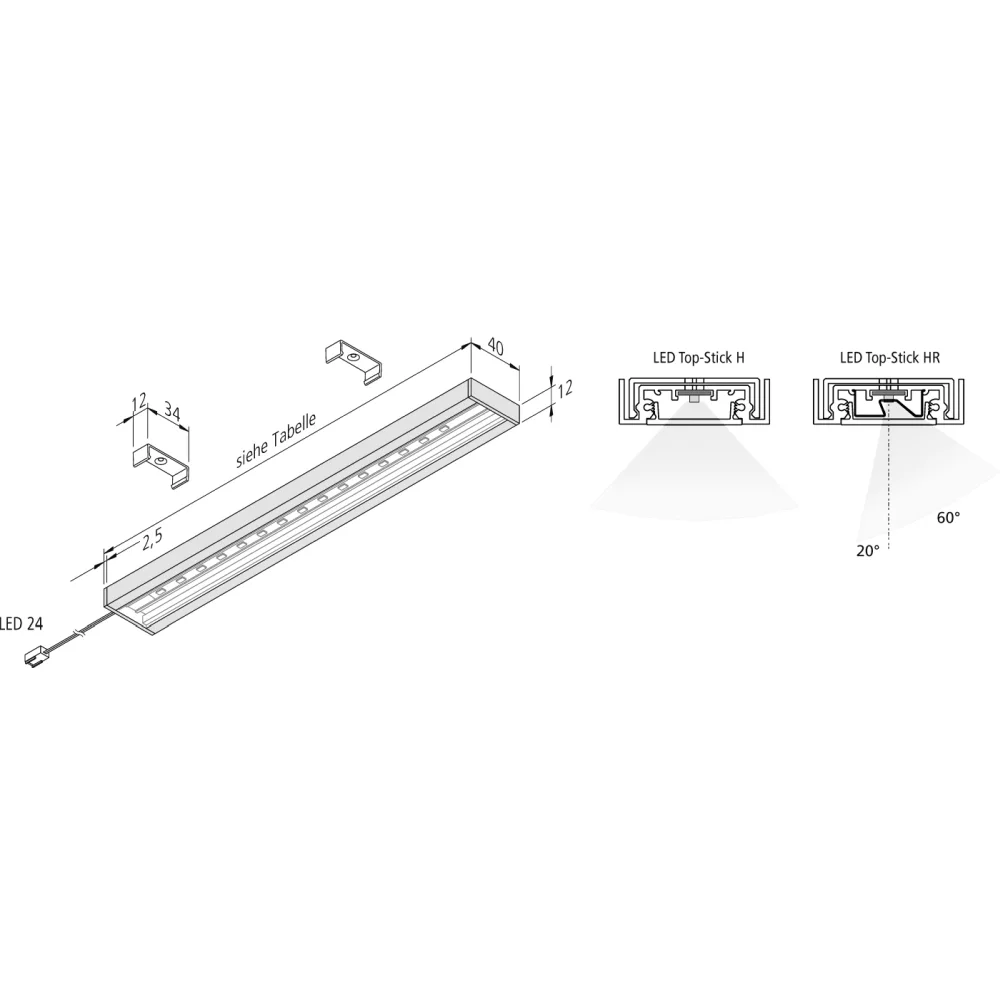

The LED surface-mounted luminaire has an operating voltage of 24V= and a constant current of 315mA. It is dimmable with the appropriate accessories and can be connected with the LED-24 plug system. The dimensions are 31x4x1.2 cm and the material is aluminum and plastic. The average lamp life is 60000 hours.

Application and installation

Thanks to the extremely wide beam angle of over 80°, the surface-mounted luminaire is ideal for use in furniture and on walls. The installation is easy and uncomplicated, and the product is suitable for indoor use only. The IP protection rating is 20, providing sufficient protection against dust.

Additional information

This linear luminaire is equipped with a voltage-controlled LED operating device and has a plug type LED-24. The color temperature is 3000K and the color rendering level is 1A. The product comes with a non-replaceable LED light source. The energy efficiency class is G.

Accessories and certifications

An operating device is required for commissioning, which is not included in the delivery. The surface-mounted luminaire is certified according to EPREL No. 933151 and meets the requirements of the glow wire test according to IEC 60695-2-11. With its high-quality workmanship and modern technology, the LED surface-mounted luminaire LED TOP-STICK H is the ideal solution for effective and energy-efficient lighting in indoor spaces.
