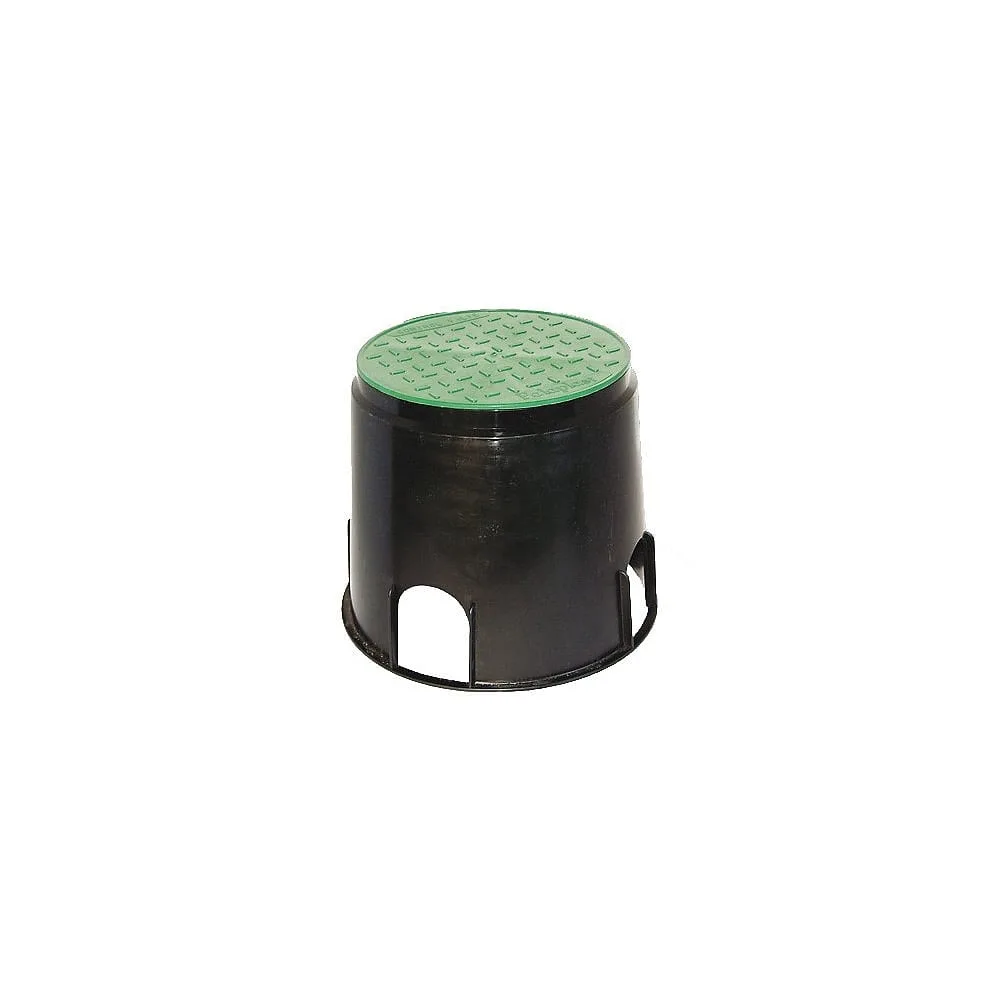

Heitronic Floor installation box Ø top 16,8cm, Ø below 20cm, with 2 outputs open and 2 outputs to open later

Robust Floor Mounting Box from Heitronic

The floor mounting box from Heitronic is a high-quality installation enclosure specially designed for cables, pipes, and valves. With a diameter of 16.8 cm at the top and 20 cm at the bottom, it ideally adapts to various installation requirements. The enclosure is made of durable polypropylene (PP), known for its longevity and resistance. The combination of a black housing and green lid provides a discreet yet functional appearance.

Practical Protective Features and IP44 Certification

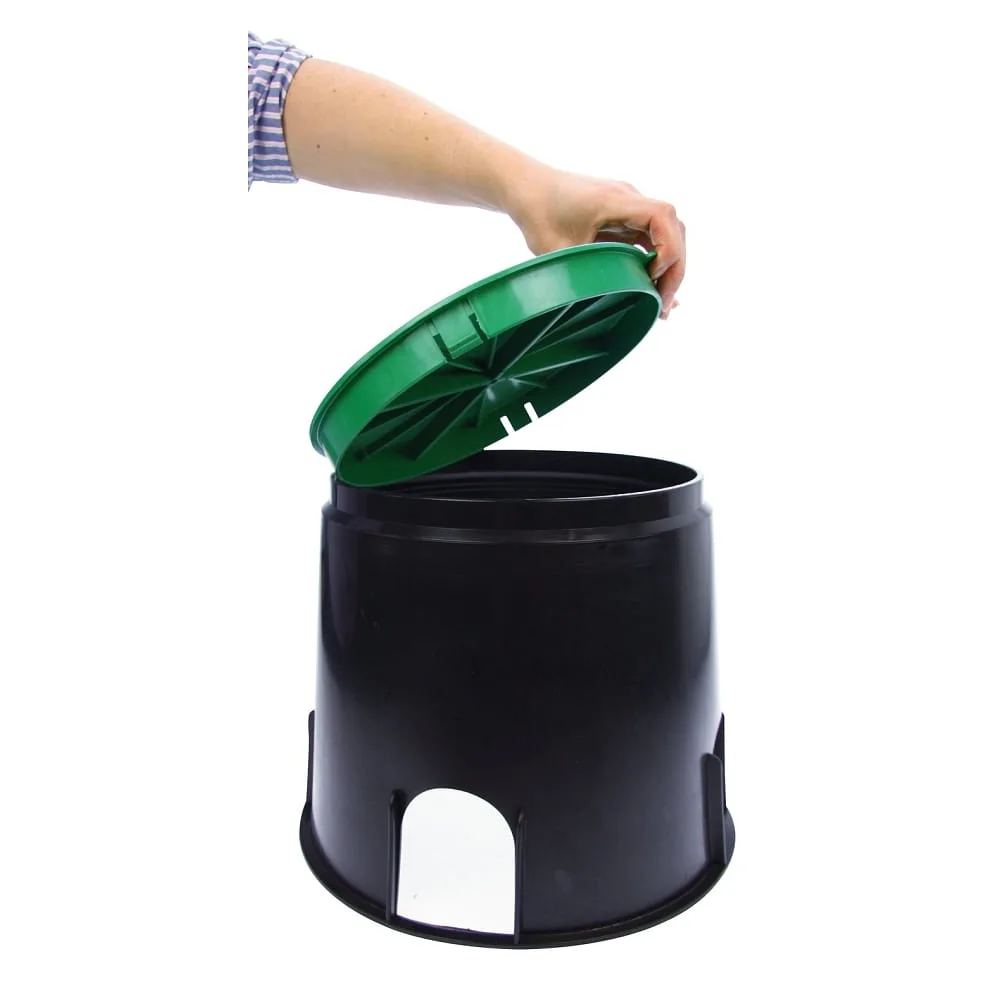

The mounting box features protection class IP44, which ensures protection against splashing water and solid foreign objects from above. The bottom is open, so during installation, it must be ensured that the cable connections used have at least protection class IP68. This guarantees that the cables are reliably protected from moisture and dirt. The green lid is included in the delivery and provides secure coverage.

Flexible Outlets for Various Applications

The floor mounting box offers two side openings as well as two additional optional knock-out openings at the bottom. These allow flexible routing of cables or pipes in different directions. Due to these versatile outlets, the enclosure is ideal for different installation situations where multiple lines need to be combined or branched off.

High Load Capacity and Safe Use

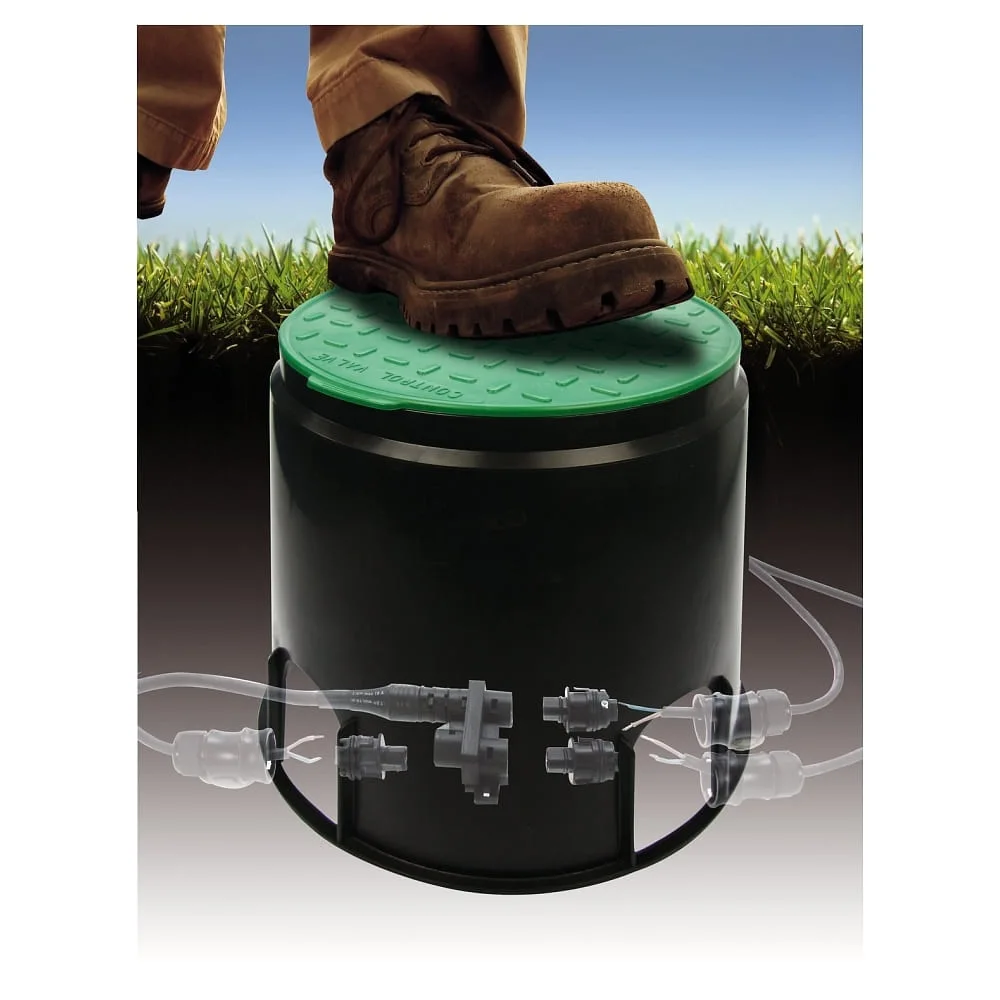

The enclosure is walkable and withstands loads up to 150 kg. This feature makes it especially reliable when installed under surfaces that are occasionally walked on or subjected to load. The stable polypropylene construction also ensures a long service life and effectively protects the cables and pipes inside from mechanical impacts.

Easy Installation and Versatile Applications

Thanks to its well-thought-out design, the installation of the floor mounting box is straightforward and time-saving. The combination of robust material, protection class IP44, and flexible outlets makes the product a practical solution for various installations. Whether for cables, pipes, or valves – the Heitronic mounting box offers a reliable and secure foundation for your projects.
