LED driver with 24V constant voltage EL-9R-24V

LED operating device with 24V constant voltage EL-9R-24V

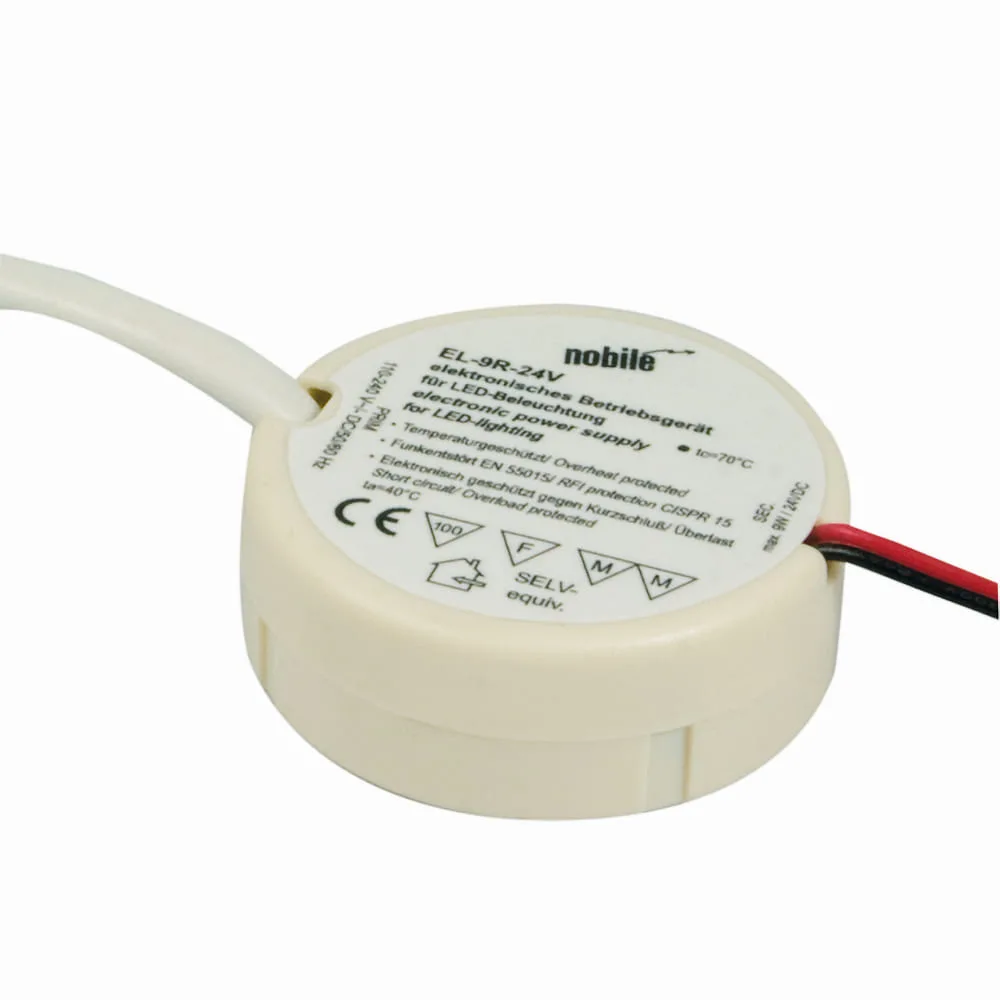

The LED operating device with 24V constant voltage EL-9R-24V is a high-quality power supply unit specifically designed for indoor use. With a power consumption of 0-9W and an output voltage of 24V, it is ideal for operating LED light sources. The item number is NO-8996150000.

Technical details

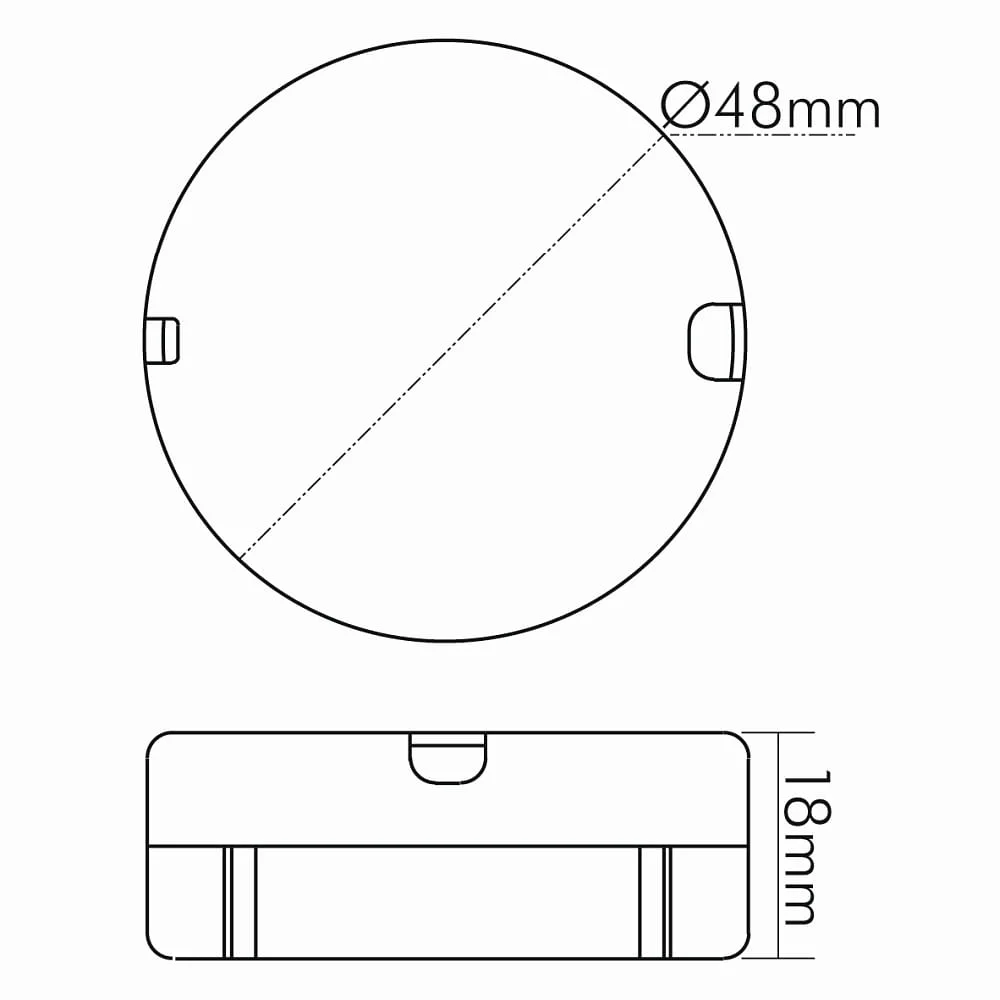

The size of the operating device is Ø/H: 4.8/1.8 cm and it weighs only 0.047 kg. It is available in white and has an IP protection rating of IP20. The short-circuit window safety transformer provides additional safety.

Additional information

The power supply unit has an input voltage of 110-240V (AC/DC) and a mains frequency of 50/60Hz. The temperature protection is at 100°C and the maximum measuring point tc is 70°C. The ceiling cutout is 51mm and the connection type on the primary side is open wire ends.

Installation

The connection type on the secondary side is via a snap-in system with a 2-pole RST plug. The cable type on the primary side is H03VVH2-F 2x 0.75mm2 and the wire cross-section is 0.75mm2 on the primary side and 0.5mm2 on the secondary side. The cable length is 15cm.

Summary

Overall, the LED operating device with 24V constant voltage EL-9R-24V is a reliable and efficient power supply unit for indoor use. With its technical details and safety features, it is the ideal choice for operating LED light sources in various applications.
