light bar BATTEN FLAT P 1200 52 ON-OFF CCT Switch, switchable, multipower IP44/20

Versatile LED Light Strip with Adjustable Color Temperature

The LED light strip BATTEN FLAT P 1200 from SLV impresses with its flexible light color, which can be set as needed to warm white (3000K), neutral white (4000K), or cool white (5000K). This adjustment is made directly on the fixture via a convenient DIP switch, allowing you to create the ideal lighting for different situations at any time. With a beam angle of 120°, the fixture ensures an even and broad light distribution that guarantees a pleasant atmosphere.

Efficient and Long-lasting Lighting Solution

The light strip operates with a power consumption of 35 watts and achieves an impressive luminous efficacy of 146 lumens per watt. This energy efficiency makes it an economical choice for continuous use. The fixture provides a luminous flux between 3069 and 5113 lumens, depending on the selected color temperature. With a protection rating of IP44 and protection class 1, the fixture is robust and reliable, while the durable materials aluminum and polycarbonate ensure stable and high-quality construction.

Easy Installation and Flexible Mounting

The compact and especially flat LED linear light is designed for surface mounting and can be installed quickly and easily thanks to a removable cover and tool-free openable end caps. The scope of delivery already includes important accessories such as the driver, color temperature switch, and through-wiring. Optional accessories such as pendant sets or mounting brackets can be purchased separately to optimally adapt the light strip to your individual needs.

Optimal Technical Features for Professional Use

The LED light strip is particularly suitable for commercial applications such as offices, schools, or retail spaces, as it offers good color rendering with a CRI of over 80Ra. The fixture operates in a voltage range of 220-240V with a frequency of 0/50/60Hz and is designed for an ambient temperature from -20 to +40°C. Integrated dimming is controlled via a switch directly on the fixture, allowing easy brightness adjustment. Additionally, the fixture is classified in the photobiological risk group RG1, which ensures safe use.

Robust Construction and Modern Design

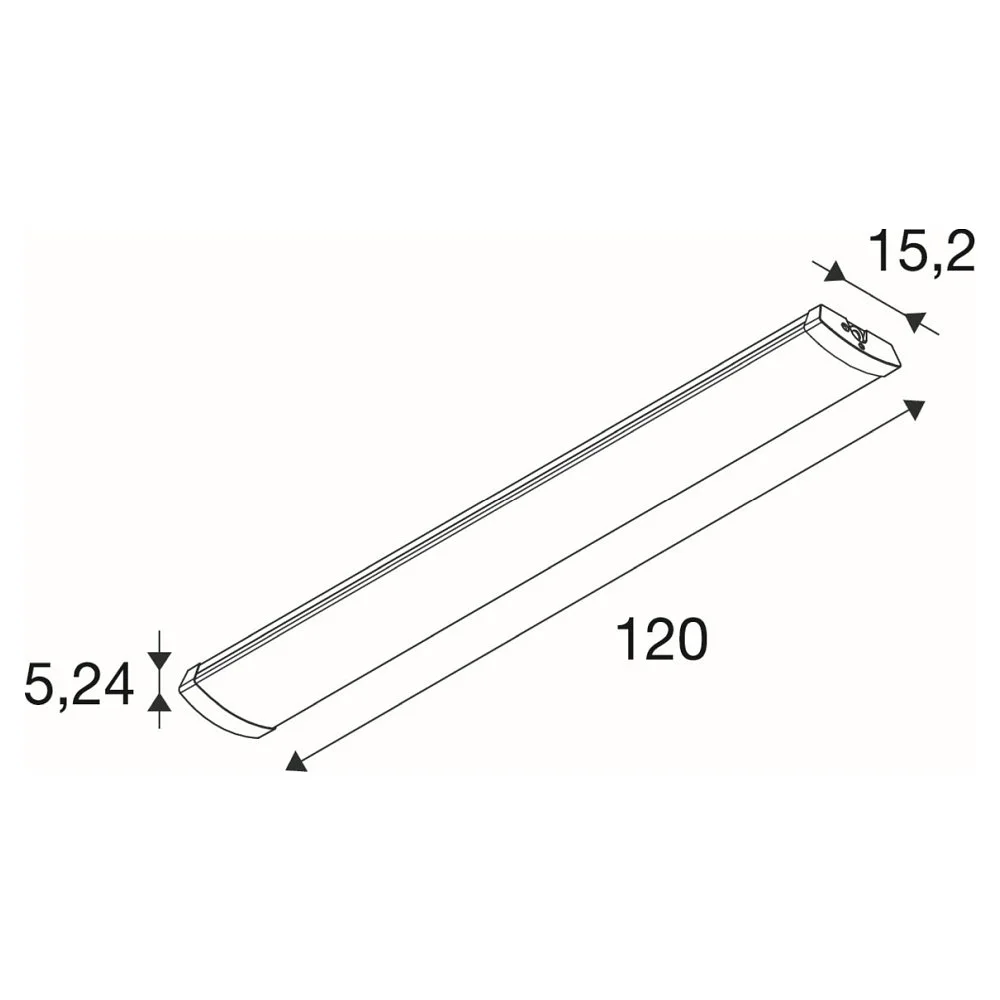

With dimensions of 120 cm length, 15.2 cm width, and 5.2 cm height, the SLV BATTEN FLAT P 1200 presents itself as a slim and unobtrusive lighting solution in modern white. The aluminum housing combined with a polycarbonate cover ensures durable construction that also withstands mechanical stress (IK04). Thanks to the integrated push-in terminal for mains connection, the electrical connection is safe and simple. Overall, this LED light strip offers a high-quality, flexible, and energy-efficient lighting solution for versatile applications.
