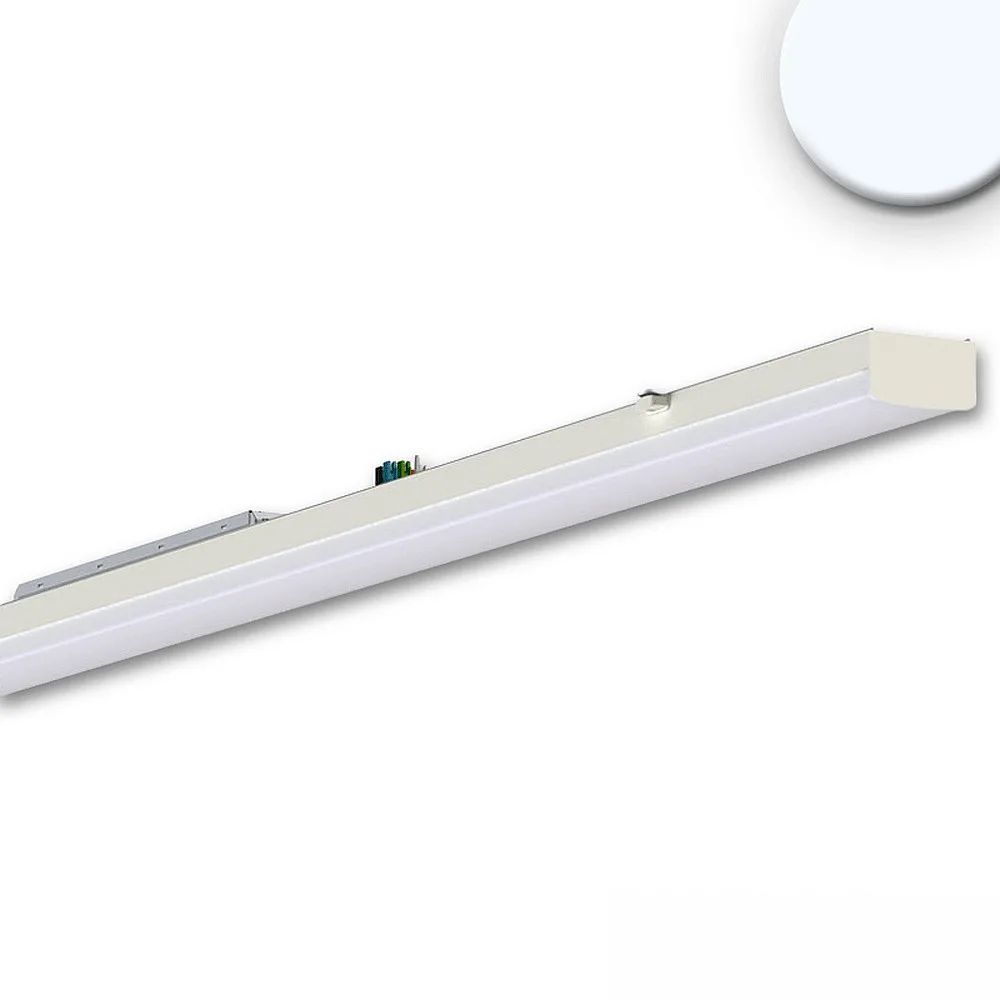

light strip system FAST FIX LINEAR SYSTEM IP54 MODULE DALI controllable IP54, white dimmable

ISOLED



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

Efficient Lighting System for Indoor Use

The FastFix LED Linear System IP54 Module from ISOLED offers an efficient lighting solution for indoor spaces. With a power consumption of 25-75W and a luminous flux of 10600lm, this light band system provides bright and uniform illumination.

Versatile Use with Practical Accessories

The linear system comes with various accessories, including a cover and a control gear. With the option for DALI dimming, the light intensity can be individually adjusted. The square shape and neutral color temperature of 5000K make this system versatile for various applications.

High Quality and Long Lifespan

The FastFix LED Linear System IP54 Module impresses not only with its performance but also with its high-quality construction. With an aluminum and plastic housing, it is robust and durable. The average lamp lifespan is an impressive 36000 hours.

Energy Efficient and Environmentally Friendly

With an energy efficiency class of C and an energy consumption of 25-75kWh/1,000h, the ISOLED linear system is not only cost-effective but also environmentally friendly. The high color rendering index of over 80Ra ensures natural colors and a pleasant lighting atmosphere.

Easy Installation and Safe Application

The FastFix LED Linear System can be easily and safely installed, both surface-mounted and system-bound. With an IP protection rating of IP54, it is protected against dust and splash water. The use of an electronic transformer also ensures a safe and reliable power supply.

Article number:
ISO-115229
Purchasing quantity:
1 piece
Brand:
ISOLED
Energy efficiency category:
C
EPREL No:
824403
Product type:
light strip system
Energy consumption:
25-75 kWh/1.000 h
Manufacturer:
ISOLED
Operating voltage:
180-265 V~
Dimmable:
yes
Dimmability:
DALI
Lamp shape:
square
Power frequency:
50/60 Hz
Power consumption:
25-75 W
Emitting angle:
120 °
Bulbs in delivery:
yes
LED can be replaced :
no
Bulb type:
LED
Number of bulbs:
33
Light colour:
neutral white
Light emission:
symmetric
Light flux:
10600 lm
Nominal current:
416-283 mA
Colour temperature:
5000 K
Average life span of a bulb in hours:
36000 h
Colour rendering index:
>80 Ra
1B
Colour:
white
Material:
plastic
aluminium

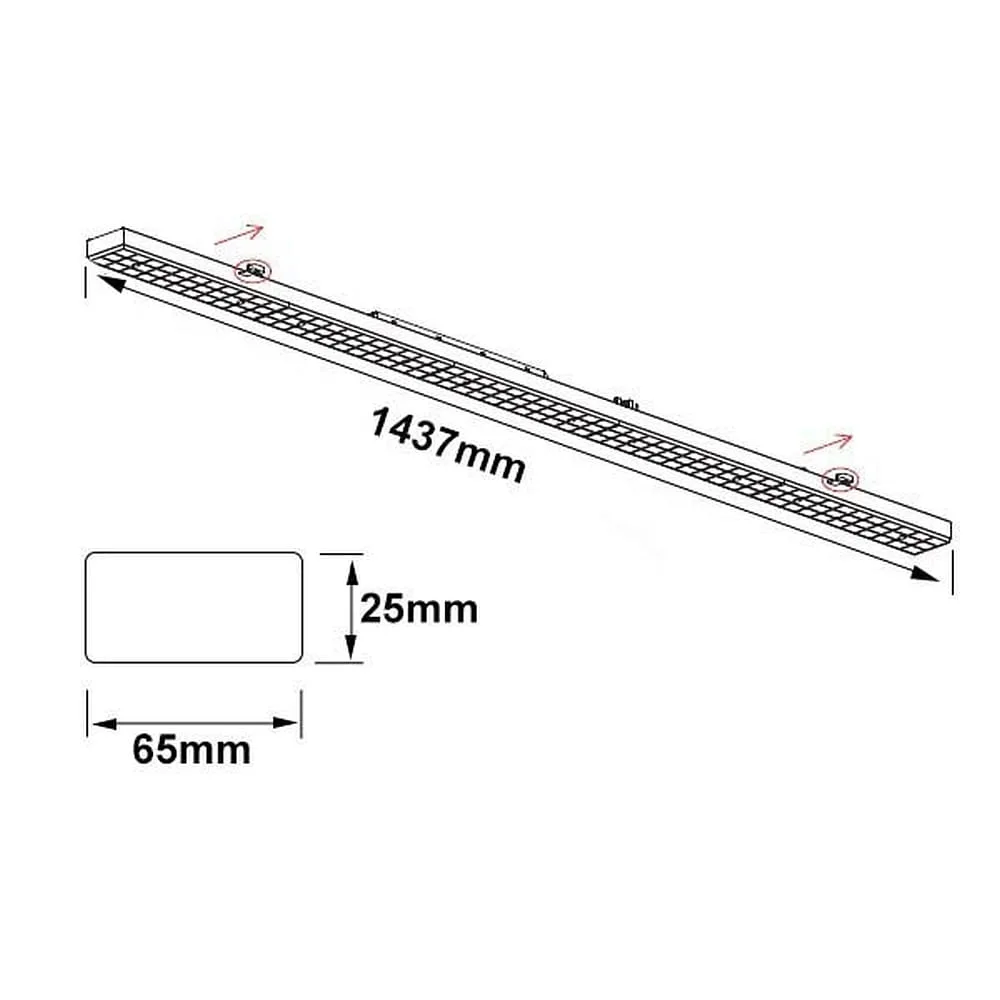

Dimension:
L∕ W∕ D: 143,7∕ 6,8∕ 4,2 cm
Wire/connection lead diameter:
2,5 ² mm
Plug type:
plug
Mounting:
mounting accessories required
system based mounting
surfaced mounting
Field of application:
ceiling
Protection class:
1
IP-protection class:
IP54
Application area:
only suitable for indoor use
Additional information:
Transformer power: 21 VA
Accessories:
mounting accessories excl
switch excl
control excl
bar recording excl
cover incl
control gear incl
ambient temperature:
-20 ... +45 °C
