Outdoor Multi 10-fold-distributor for 2-10 cable 4-14 mm, 0.5-4 mm², max. 450V AC/24A

Robust 10-Way Cable Distributor for Versatile Applications

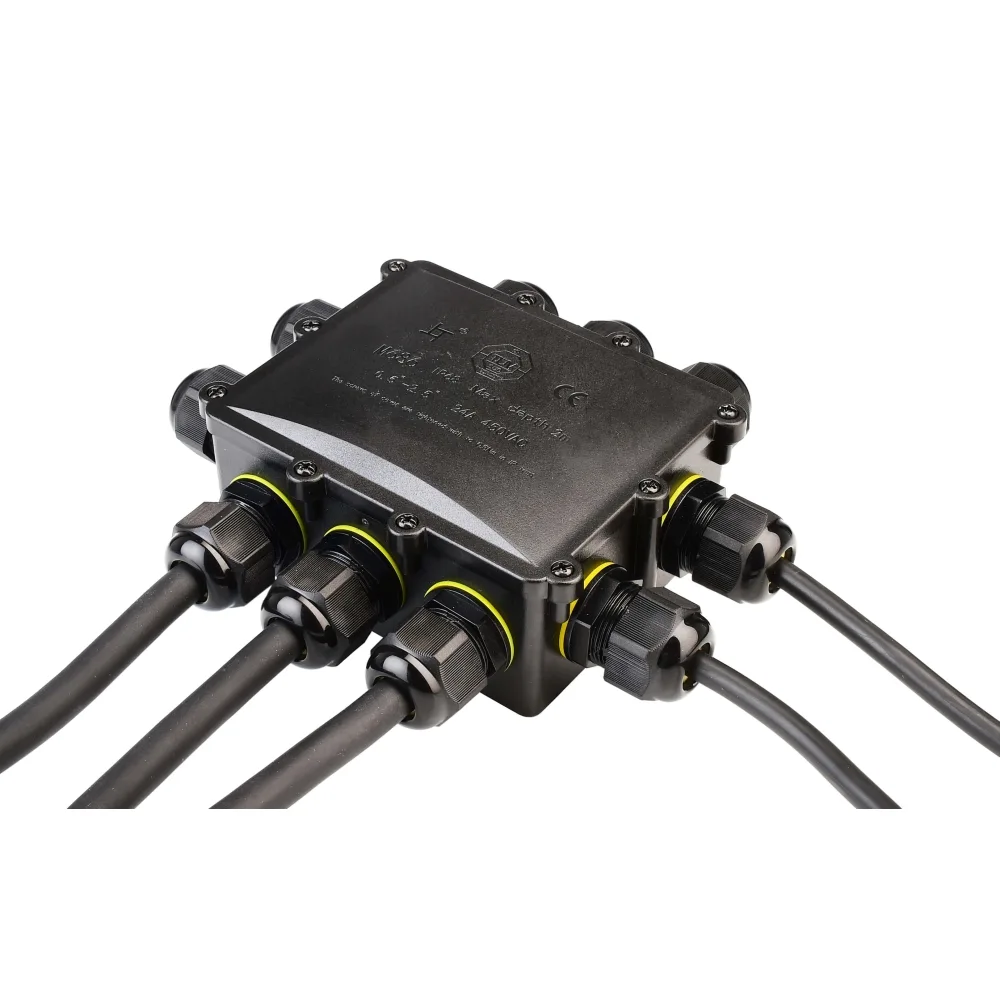

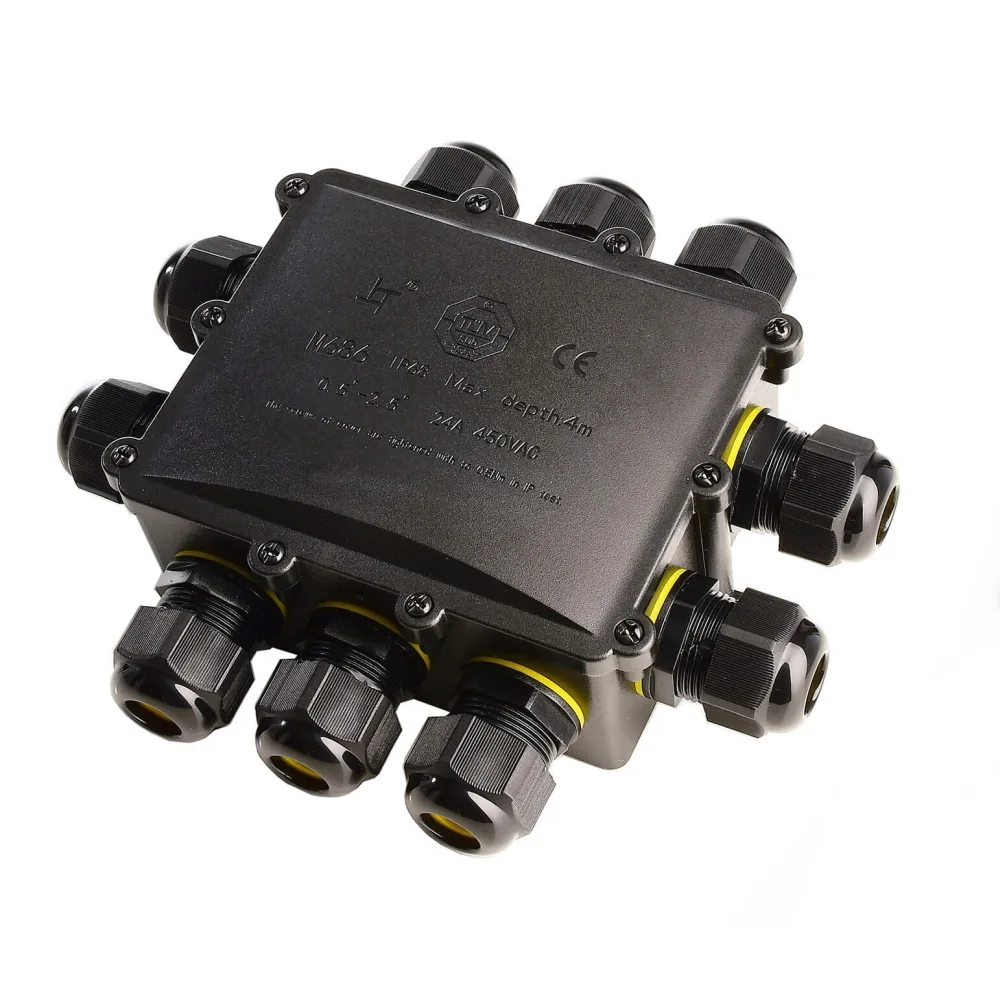

The Outdoor Multi 10-way distributor from Deko-Light is a high-quality cable distributor that can accommodate up to ten cables with a diameter of 4 to 14 mm or a conductor cross-section of 0.5 to 4 mm². Thanks to its robust polyamide housing and high-quality rubber materials, the distributor offers a durable and secure solution for wiring low-voltage and high-voltage components. The combination of black and yellow colors not only provides an attractive appearance but also ensures good visibility during installation.

Waterproof and Reliable Thanks to IP68 Protection Class

With an IP68 protection rating, this cable distributor is waterproof and can easily withstand water depths of up to two meters. The screwed cover, included screws, and the waterproof M25 cable gland ensure a secure seal against moisture, dust, and other environmental influences. This keeps the electrical connection protected and fully functional at all times, even under demanding conditions.

Easy Installation with Comprehensive Accessories

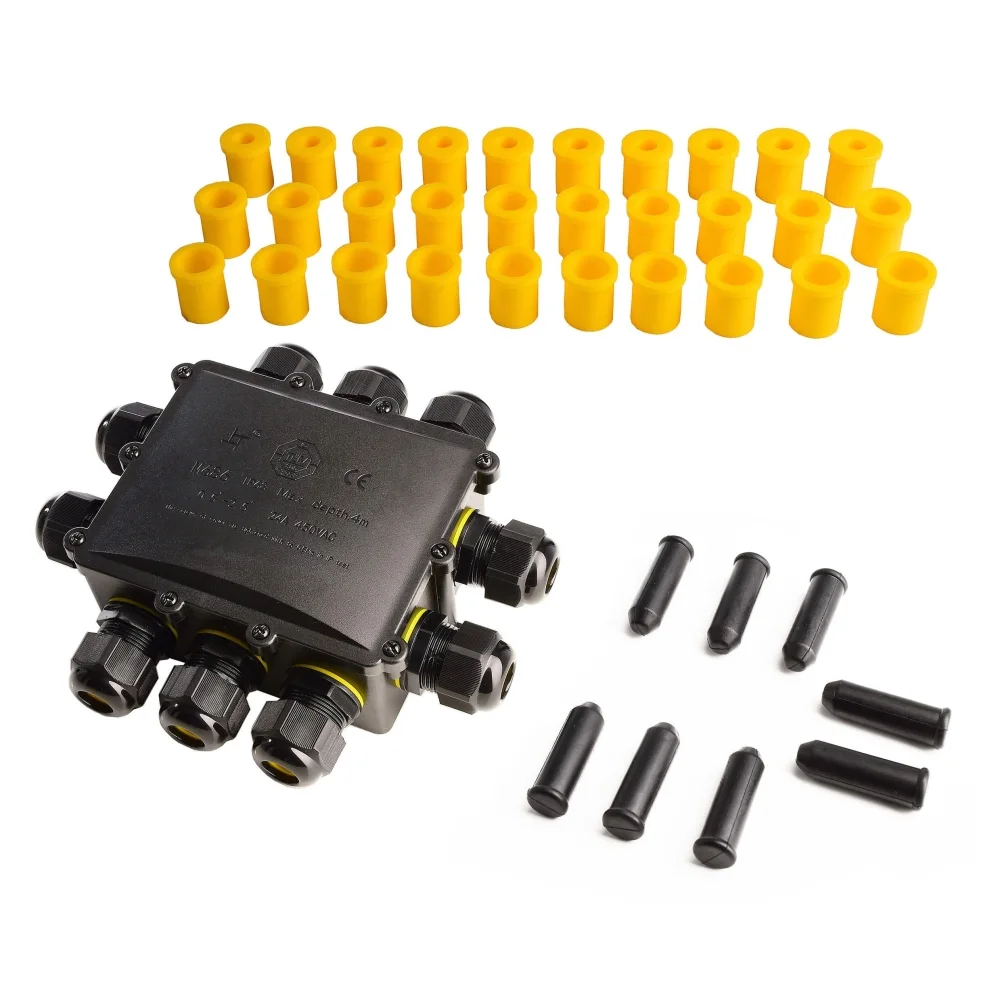

The distributor comes with practical accessories that significantly simplify installation. These include blind plugs to safely seal unused cable entries, as well as various grommets and rubber reducers. These allow adaptation to cables with different diameters—from 4 to 14 mm. This makes the distributor flexible in use and easily adaptable to different wiring requirements.

Technical Data for Professional Use

The cable distributor supports an operating voltage from 12 to 450 volts AC with a rated current capacity of up to 24 amperes. The mains frequency is 50/60 Hz, making it universally suitable for numerous applications. Additionally, the distributor is designed for a temperature range of -20 to +90 degrees Celsius, allowing reliable operation even under extreme temperature conditions. With a compact size of 18.3 x 13.53 x 5.94 cm and a weight of only 0.467 kg, the distributor is easy to handle.

Versatile Applications and Expandability

The Outdoor Multi 10-way distributor is ideal for professional wiring of various components and can be flexibly expanded thanks to its modular design. It is particularly suitable for use with other professional cable connectors and distributor solutions from Deko-Light. This allows the creation of individual and secure wiring systems that meet the high demands of modern electrical installations.
