Power supply ABN transformer 300VA conventional, voltage constant, 220-240V AC / 50-60Hz, 12V AC, 300W

Powerful Power Supply ABN 300VA

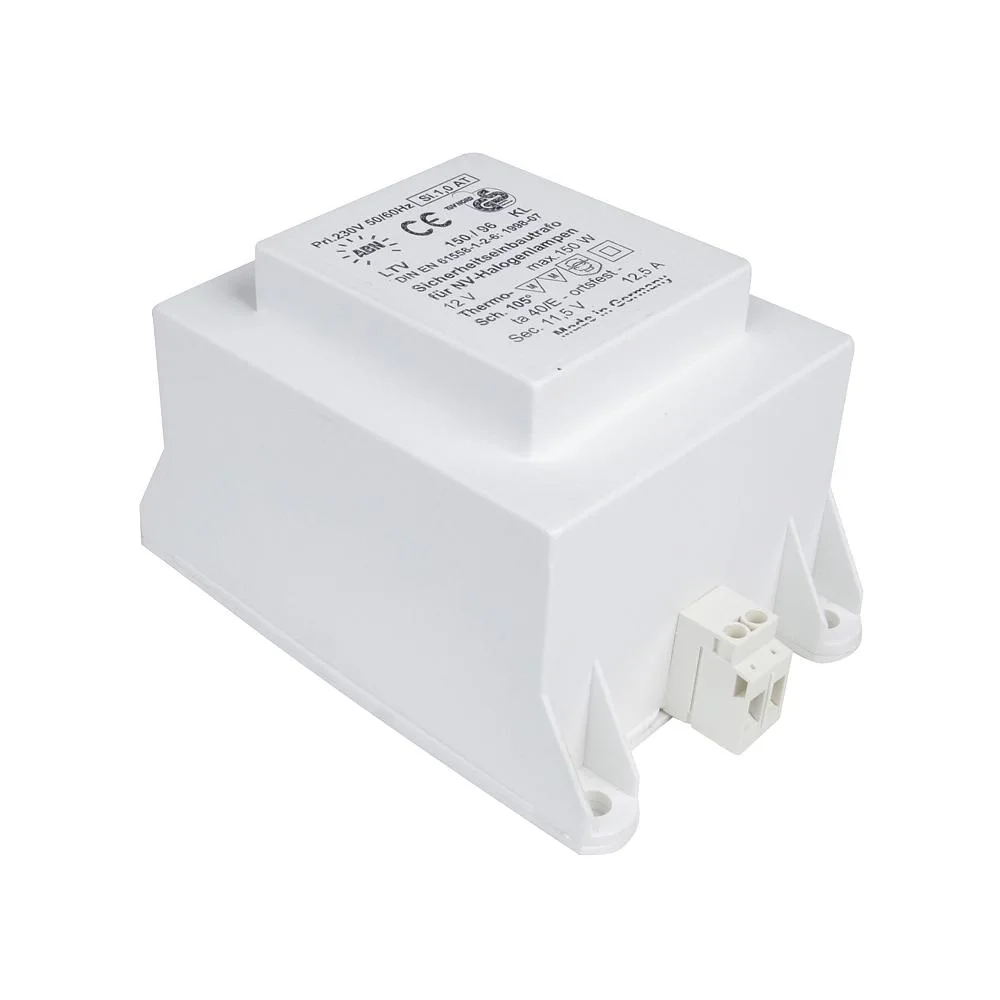

The ABN 300VA power supply is a high-quality conventional transformer specifically designed for operating low-voltage halogen lamps. With a constant output voltage of 11.5 V AC, it provides a gentle voltage that significantly extends the lifespan of your lamps. The device operates with an input voltage of 220-240 V AC at 50-60 Hz and offers a maximum power of 300 watts. Thanks to the Euro plug, the power supply can be easily and safely connected to the mains voltage.

Robust Construction and Safe Materials

The power supply is made from a combination of plastic and metal to ensure a durable and stable construction. It is wound and vacuum-encapsulated, which increases resistance to external influences and guarantees reliable operation. Protection class 2 and the integrated short-circuit window fuse provide additional safety during operation. Weighing just under 4 kilograms and with compact dimensions of 13 x 8.8 x 10.3 cm, the device is sturdy yet space-saving.

Easy Handling and Long Connection Cable

The power supply features a connection cable with a length of 200 cm, offering sufficient flexibility during installation. The secondary side is equipped with a terminal that allows a secure and straightforward connection of the lamps. It is important that conventional transformers like this model are loaded to at least 50% to ensure optimal function and a long lifespan of the connected lamps.

Compatible and Dimmable for Individual Light Control

The ABN 300VA power supply is suitable for operation with phase-cut dimmers, enabling stepless control of light intensity. The dimming function is specially designed for inductive loads, which is particularly advantageous for halogen lamps. This way, you can adjust the lighting according to your needs and create a pleasant atmosphere with energy-saving technology.

Technical Details and Protection Features

The power supply offers a maximum current load capacity of up to 25 amperes and is equipped with an integrated fuse that protects the device against overloads and short circuits. The IP protection rating IP20 indicates that the device is protected against foreign objects larger than 12.5 mm but offers no protection against water. The operating temperature is up to 105 °C, ensuring safe and reliable use over long periods.
