recessed spotlight DIONE IP44 DIM 830 swivelling, wired through IP44, chrome dimmable

Modern Design and High-Quality Materials

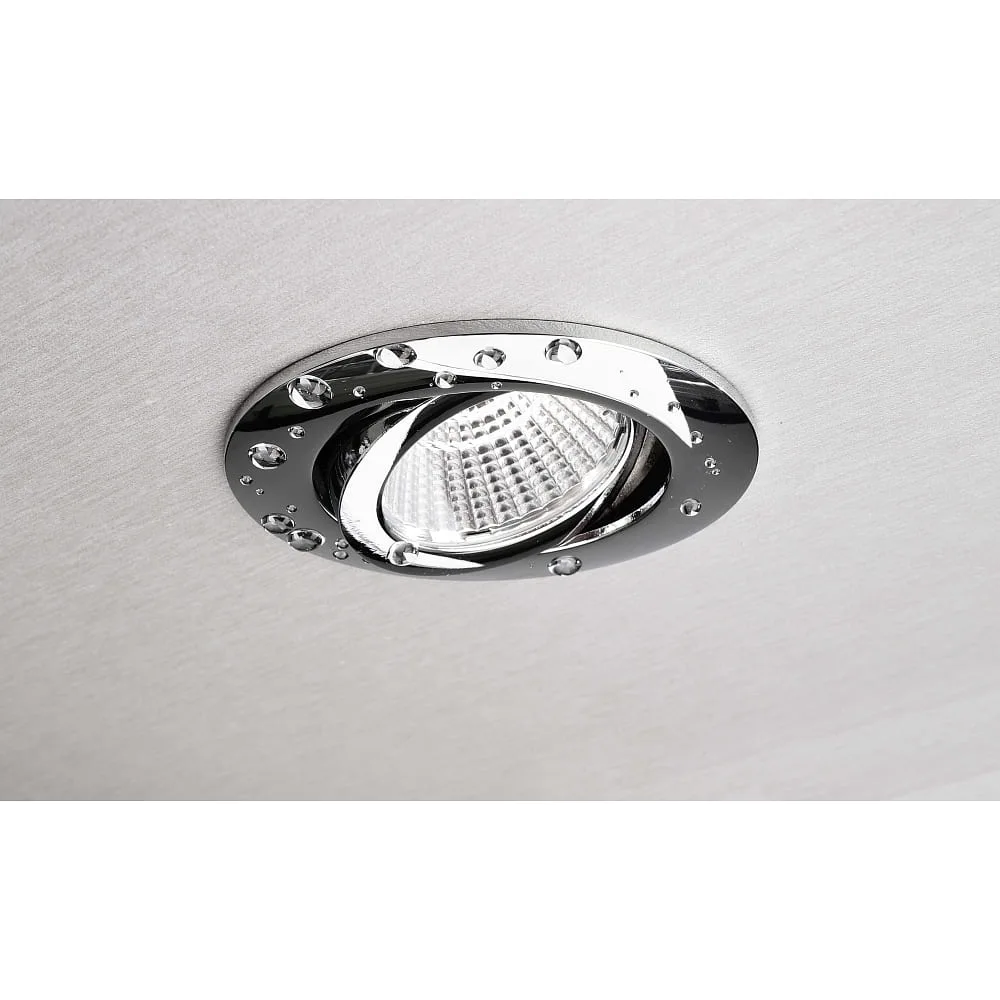

The DIONE IP44 LED recessed spotlight impresses with its elegant chrome-colored design and the combination of aluminum and plastic, which ensures durability and robustness. With its flat construction and a diameter of 8.2 cm, the spotlight blends unobtrusively into any ceiling. The visible installation height is only 0.3 cm, making the luminaire particularly discreet. Thanks to the securely built-in spring clips, installation is safe and straightforward.

Efficient Illumination with Warm White Light

The spotlight features a fixed COB LED with a power output of 8.5 watts, generating a luminous flux of 800 lumens. The color temperature is a pleasant 3000 Kelvin, providing warm white light and creating a cozy atmosphere. With a color rendering index of over 80Ra, colors appear natural and vivid. The beam angle of 36° allows for a medium-wide light distribution, ideal for targeted general lighting.

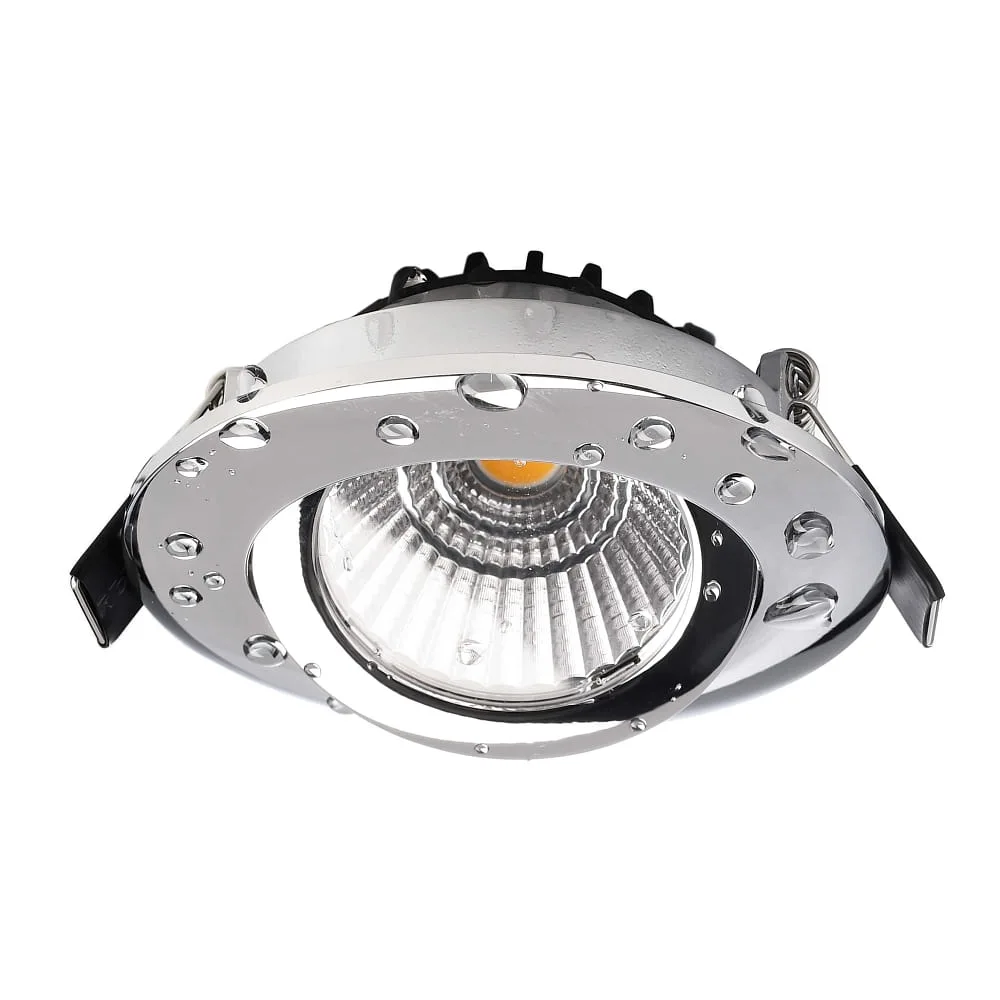

Flexibility through Swiveling and Dimming Function

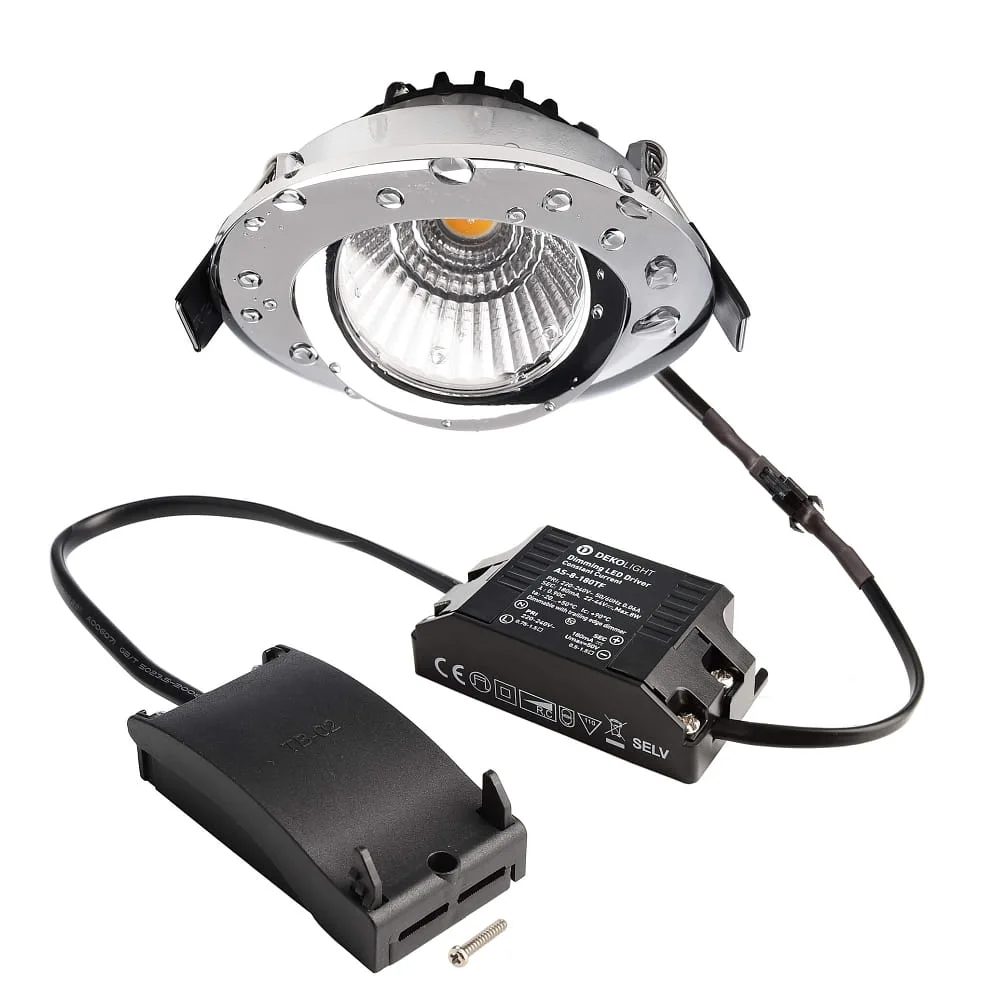

The LED module of the DIONE spotlight can be swiveled by 30°, allowing optimal alignment of the light beam. This enables individual adjustment of the spotlight to specific lighting needs. Additionally, the luminaire is dimmable and supports both trailing edge and leading edge dimmers. Connection is made via a practical clamp connection with quick terminal, which simplifies installation. An external dimmable LED driver is also included in the scope of delivery.

Robust Technology and Easy Installation

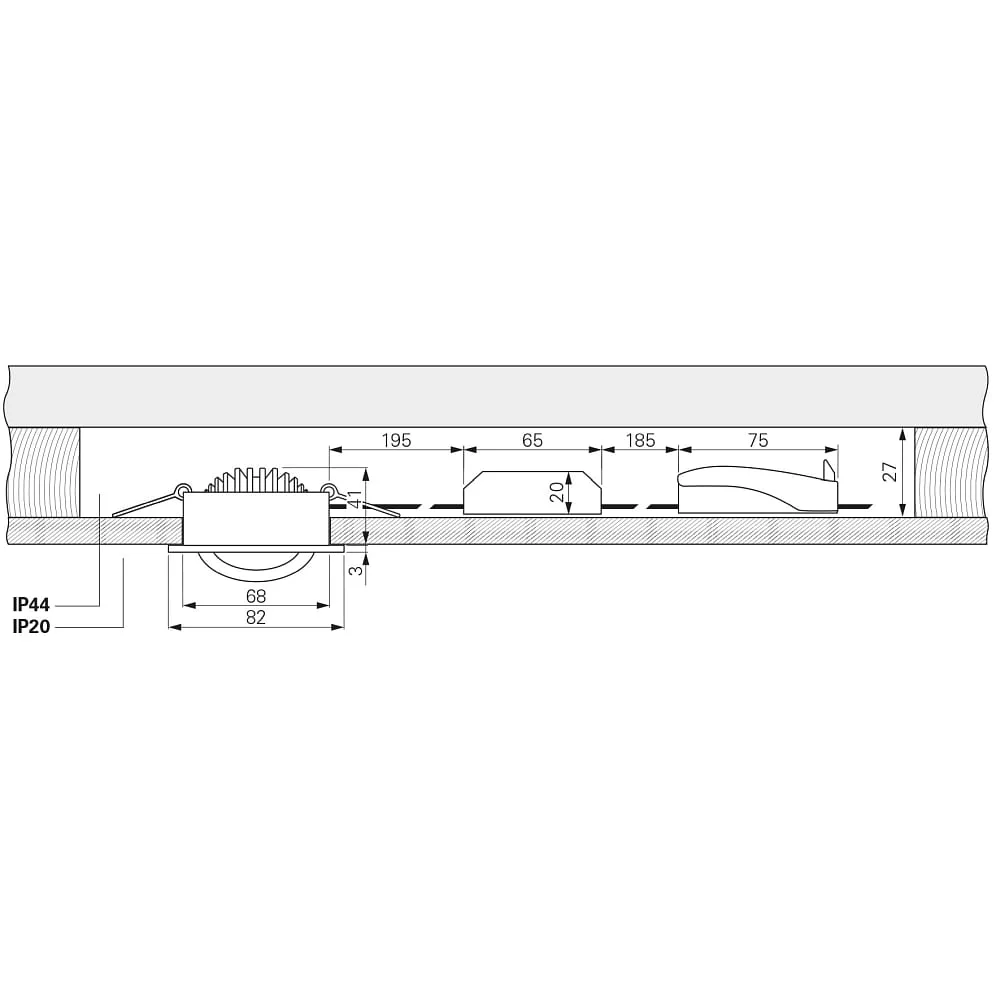

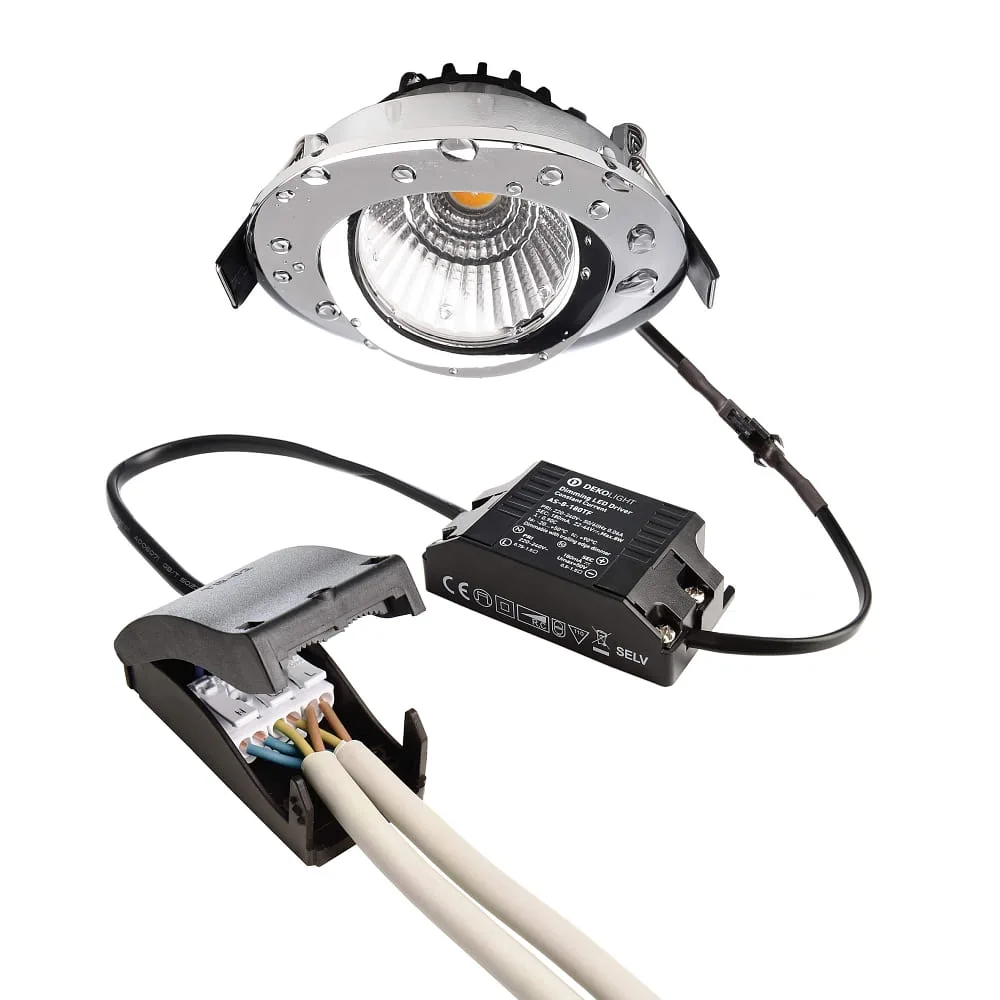

The spotlight is rated IP44, making it splash-proof. The installation depth of only 3.9 cm and the possibility to fit it into standard drill holes with a diameter of 68 mm facilitate retrofitting and new installation. The connection box with plug terminals and through-wiring is included, allowing for quick and tool-free electrical connection. The luminaire is designed for an operating voltage of 220-240V at 50/60 Hz and convinces with a long service life of up to 50,000 hours.

Versatile Applications and Accessories

The DIONE LED recessed spotlight is versatile and offers an ideal solution for various lighting requirements with its efficient light and good color rendering. Additionally, various accessories are available, including safety distance holders, reduction rings, and alternative covers such as frosted diffusion lenses or interchangeable reflectors for soft area lighting. There are also versions with dim-to-warm functionality, enabling even more flexible lighting design.
