surface luminaire SHINE 22 IP20, white dimmable

High-Quality SHINE LED Surface-Mounted Light by SIGOR

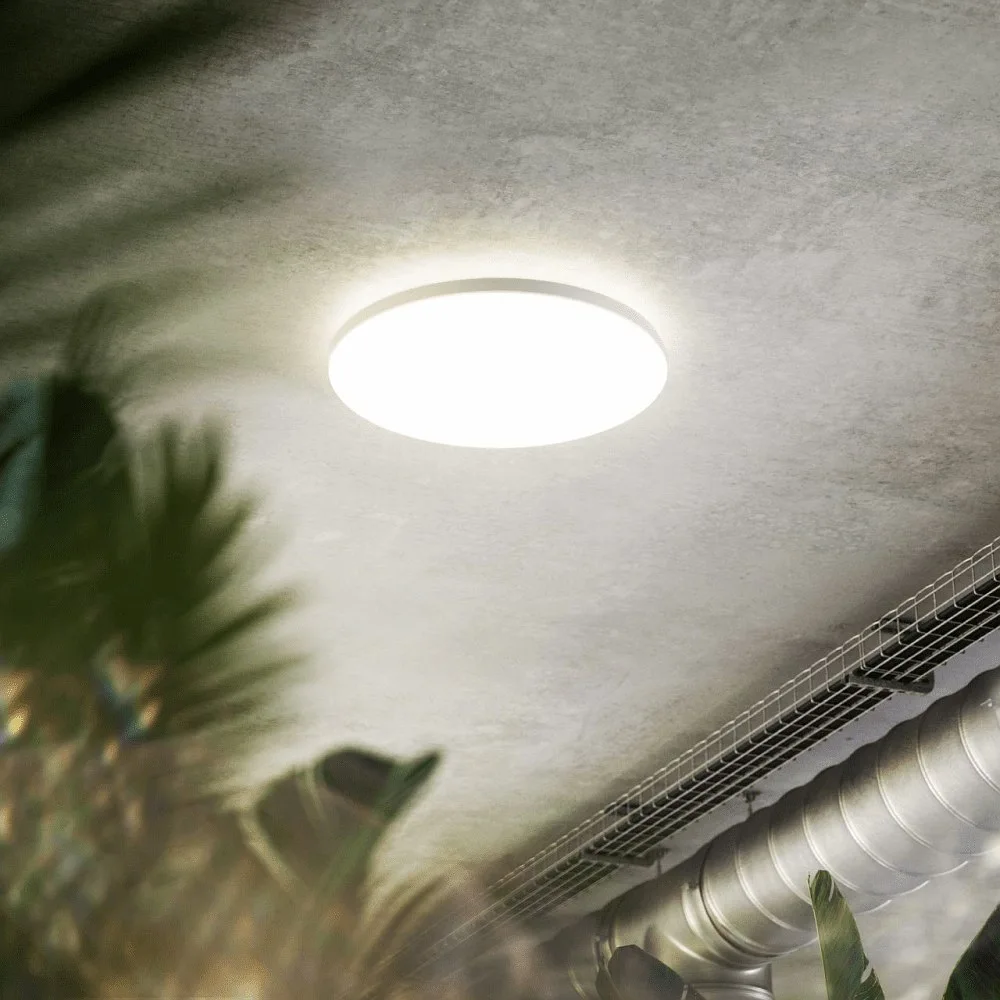

The SHINE LED surface-mounted light impresses with its modern, round design featuring a diameter of 220 mm and a height of only 3.9 cm. It is specially designed for ceiling installation and offers an elegant white lighting solution that harmoniously integrates into various room designs. Weighing 1.3 kg, the luminaire is robust yet unobtrusive, making it ideal for a wide range of applications.

Efficient and Flexible Light Output

This surface-mounted light is available in three power levels: 8, 10, and 15 watts. Depending on the version, it produces a luminous flux of 800, 900, or 1350 lumens. The color temperature is available in two settings: 3000 K for warm white light and 4000 K for neutral white light. Thanks to Tunable White technology, the light color can be continuously adjusted, creating a pleasant and flexible lighting atmosphere. A wide beam angle of 120° ensures even illumination of the room.

Durability and Energy Efficiency

The SHINE LED surface-mounted light is characterized by a long lifespan of up to 50,000 hours, significantly reducing maintenance efforts. With an energy consumption of only 15 kWh per 1,000 hours, the luminaire is particularly economical in power usage. Protection class 2 ensures safe operation, while the IP20 rating secures use in protected environments. Additionally, the lights are equipped with a robust switching cycle of 100,000, emphasizing their reliability.

Easy Control and Installation

The SHINE LED surface-mounted light is equipped with a DALI dimming system that allows for continuous brightness adjustment. This enables optimal lighting adaptation to different needs and times of day. The luminaire is delivered including the light source, with the LED chip permanently installed and non-replaceable. Installation is straightforward as a surface-mounted variant, ensuring quick and secure mounting.

Technical Details and Quality

With a nominal current of 70 mA and an operating voltage of 230 V~, the luminaire is designed for common electrical systems. The color rendering index of Ra 90 ensures natural and vivid color reproduction, making rooms appear friendly and inviting. The mains frequency of 50/60 Hz guarantees interference-free operation, while the permissible ambient temperature range from -10 to +40 °C highlights the luminaire’s versatility. The SHINE LED surface-mounted light by SIGOR stands for quality, efficiency, and modern design.
