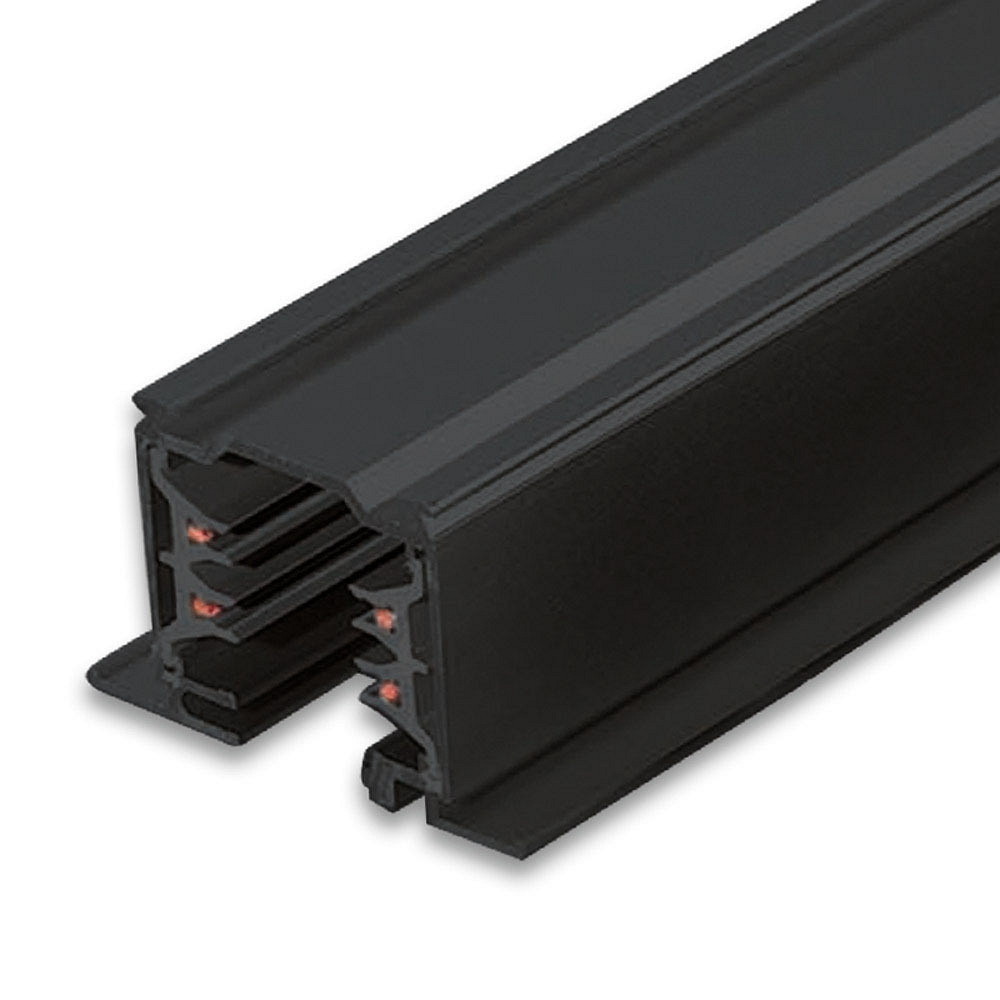

3-phase CLASSIC - power track, recessed mount, 200cm, black

Robust 3-Phase Recessed Busbar CLASSIC by ISOLED

The 3-phase recessed busbar CLASSIC by ISOLED impresses with high-quality workmanship and durable materials. Made from black, matte aluminum, it offers an elegant and modern appearance. With a length of 200 cm and compact dimensions of 4.2 cm width and 3.3 cm height, the busbar blends unobtrusively into any design. Its light weight of only 1.92 kg also facilitates mounting and handling.

Technical Features and Performance

This busbar is designed for a maximum current load of 16 amperes and can supply consumers with up to 3600 watts of power. It operates at a voltage of 220 to 240 volts and supports a network frequency of 50 to 60 hertz. Protection class 1 ensures safe operation, while the installation depth of 3.2 cm and the rectangular installation opening with a width of 3.6 cm allow for precise integration.

Flexible Application with Versatile Accessories

The CLASSIC busbar is particularly versatile and compatible with switchable as well as analog dimmable components such as phase-cut, phase-angle, or TRIAC dimmers. This makes it easy to realize individual lighting concepts. Necessary accessories like power feed units, luminaires, and mounting accessories are available separately, facilitating customization and expansion of the busbar to meet various requirements.

High Load Capacity and Stable Mounting

With a load capacity of 2 kg per 20 cm at a maximum distance of 80 cm between mounting points, the busbar offers sufficient stability for a variety of luminaires. For higher loads up to 5 kg per 20 cm, the distance between mounting points should be reduced to a maximum of 40 cm. These values guarantee secure and durable mounting that meets the demands of modern lighting systems.

Optimal Operating Conditions and Easy Installation

The busbar is designed for operation within a temperature range of -20 to +40 degrees Celsius and is ideally suited for dry environments. Surface mounting enables uncomplicated installation in hollow ceilings or other building elements. Thanks to the high-voltage lighting system, you can realize energy-saving and powerful lighting solutions with the CLASSIC busbar that optimally illuminate your space.
