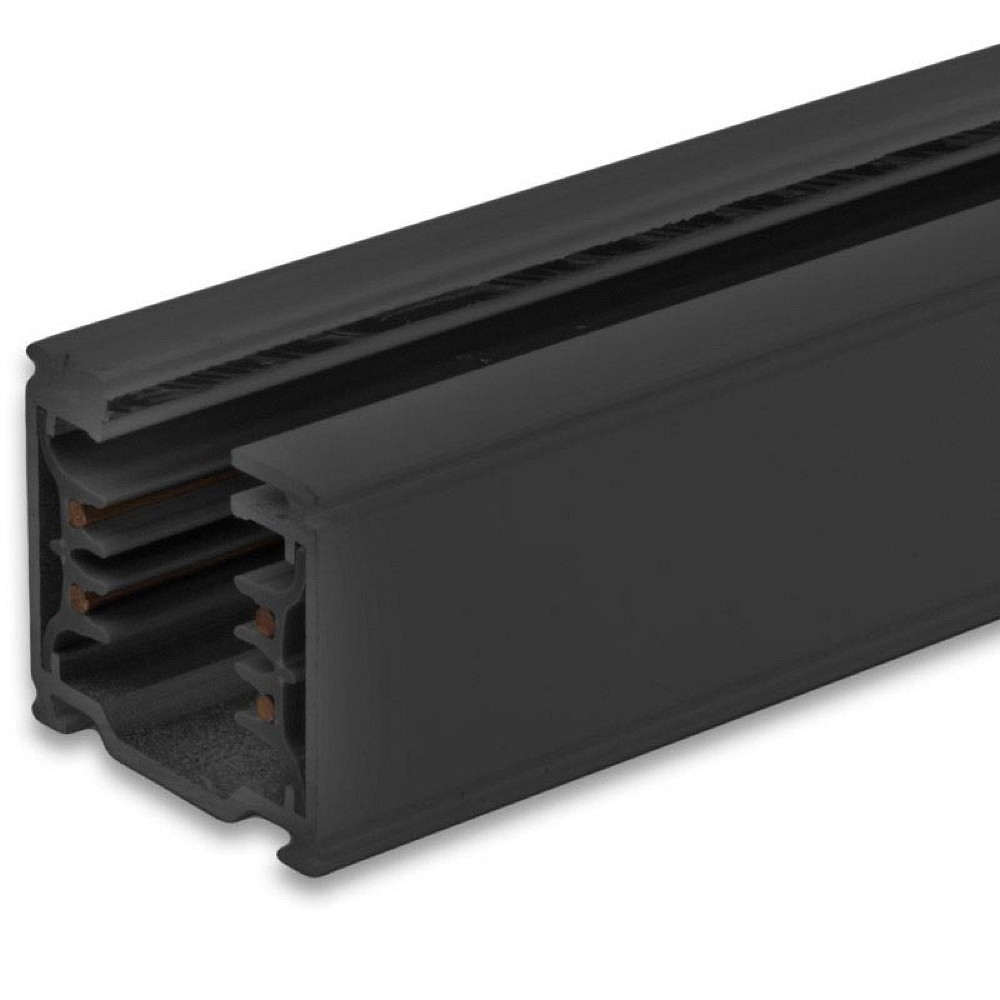

3-phase CLASSIC - power track, surface mount, 200cm, black

Robust 3-Phase Surface-Mounted Busbar CLASSIC

The 3-phase surface-mounted busbar CLASSIC from ISOLED is a high-quality lighting system with a length of 200 cm. Made from sturdy aluminum, it impresses with its sleek black design and compact dimensions of 200 x 3.6 x 3.3 cm. Weighing only 1.788 kg, the busbar is easy to handle and install. The product is specially designed for high-voltage lighting systems and offers a maximum current load capacity of 16 amperes at an operating voltage of 220-240 volts.

Efficient Power Supply and Compatibility

The busbar operates at a mains frequency of 50 to 60 Hz and supports a wide range of lamp types. It is ideally suited for consumers with a total power of up to 3600 watts. Thanks to compatibility with switchable and analog dimmable components such as phase-cut, phase-control, and TRIAC, it offers maximum flexibility in light control. The mains connection is made via a power feed or system plug, although the power feed is not included in the delivery.

High Load Capacity for Versatile Applications

The busbar impresses with a high load capacity, allowing up to 2 kg per 20 cm at a maximum distance of 80 cm between mounting points. If the distance is reduced to 40 cm, a load capacity of up to 5 kg per 20 cm can be achieved. These features make the CLASSIC busbar particularly robust and suitable for a wide range of lighting applications where secure and stable mounting is important.

Simple Installation with Extensive Accessories

Although luminaires, power feeds, mounting accessories, and pendant sets are not included, an extensive range of accessories is available. This allows for individual design of lighting concepts according to personal needs and requirements. Particularly practical is the optional pendant set, which offers additional flexibility during installation and enables an elegant suspension of the busbar.

Reliable Operation under Various Conditions

The CLASSIC busbar is designed for a temperature range from -20 to +40 degrees Celsius, ensuring reliable operation under different environmental conditions. With protection class 1, it provides safe protection against electric shock. This combination of safety, performance, and flexibility makes the 3-phase surface-mounted busbar CLASSIC from ISOLED an excellent choice for professional lighting solutions.
