ceiling recessed luminaire KADUX DOUBLE 2 flames, DALI controllable, cardanic swivelling IP20, white dimmable

SLV



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

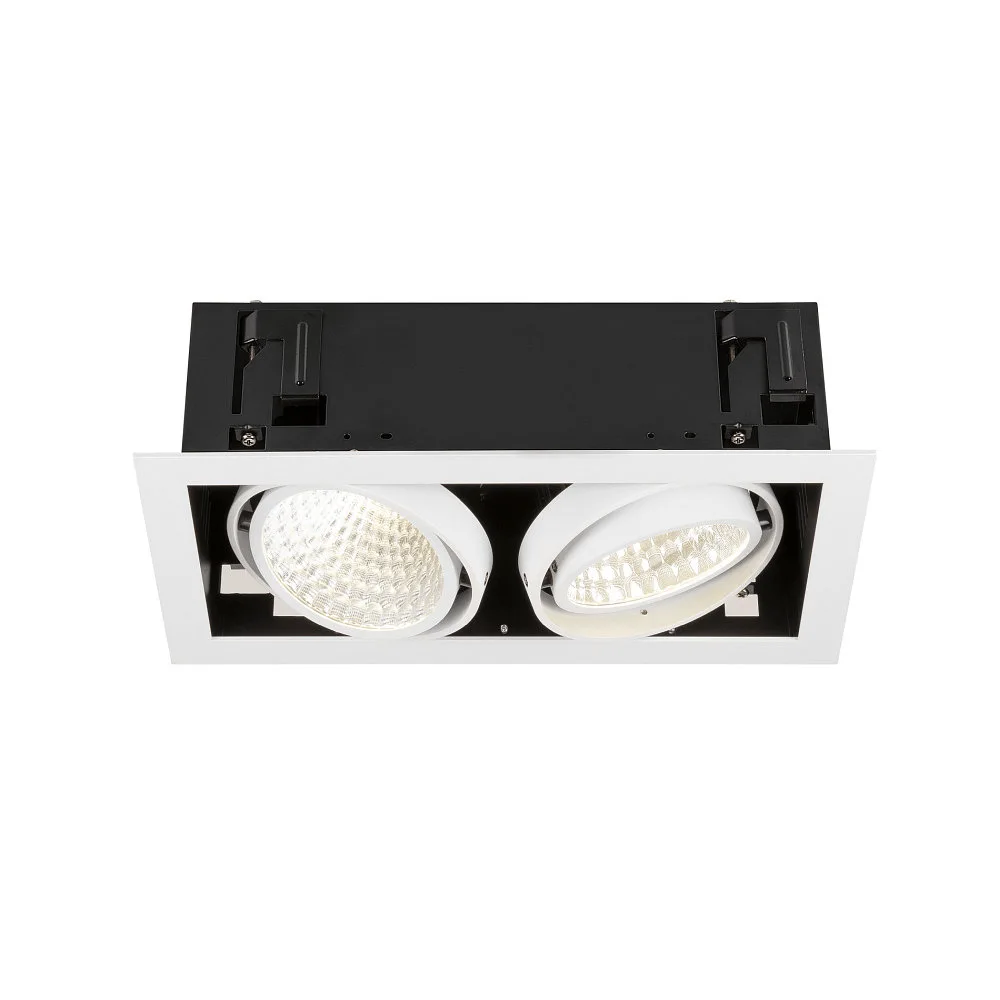

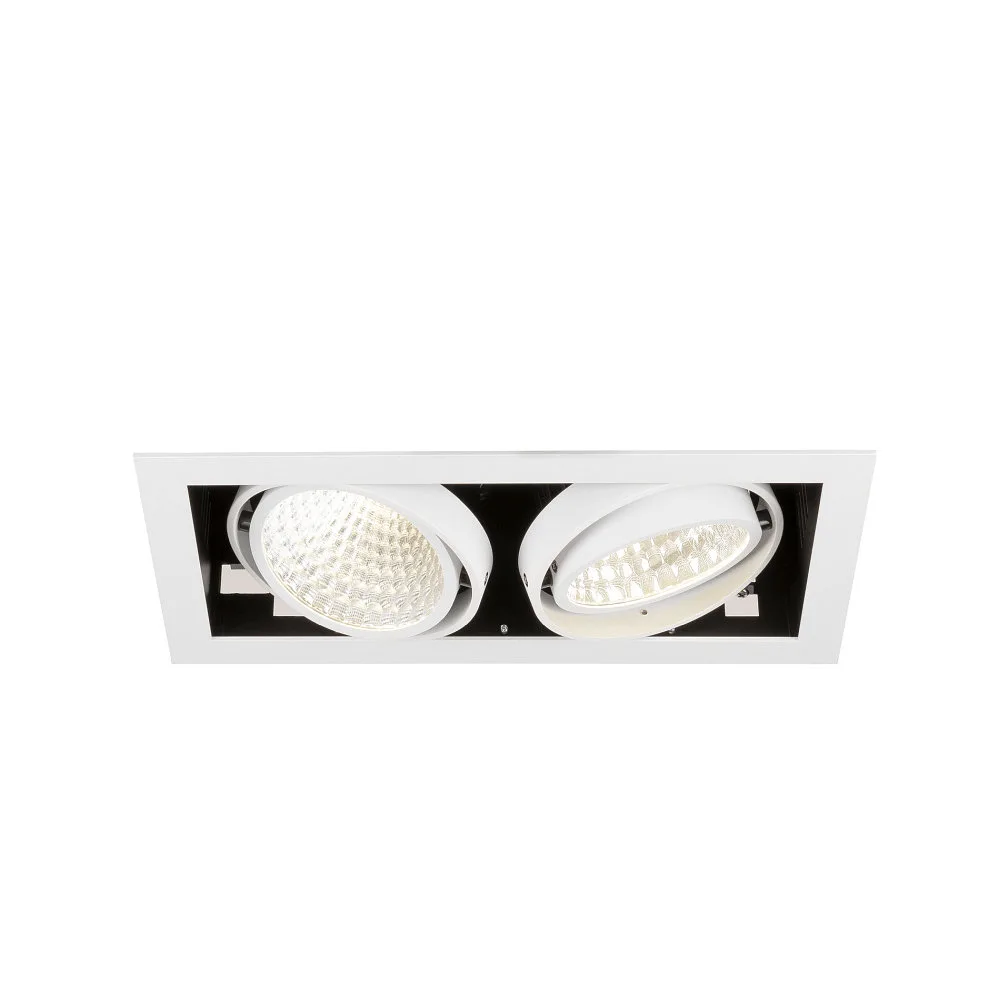

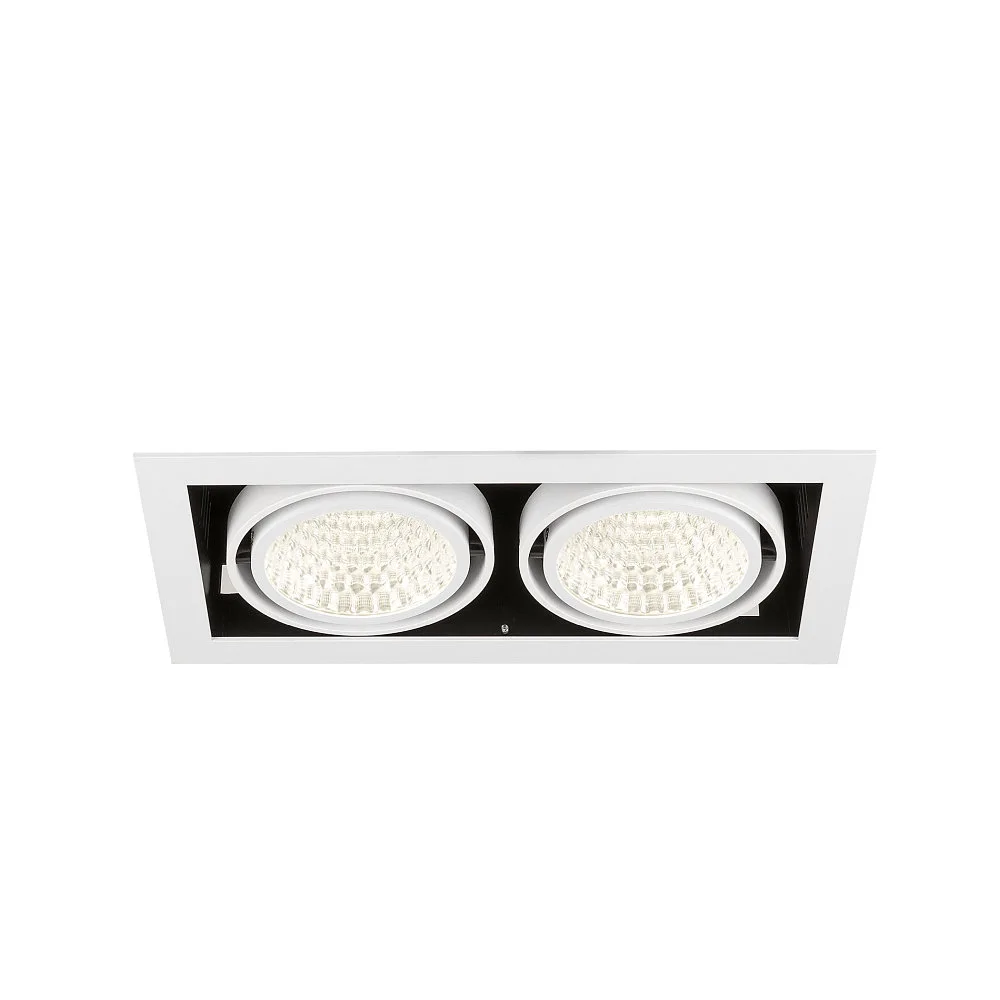

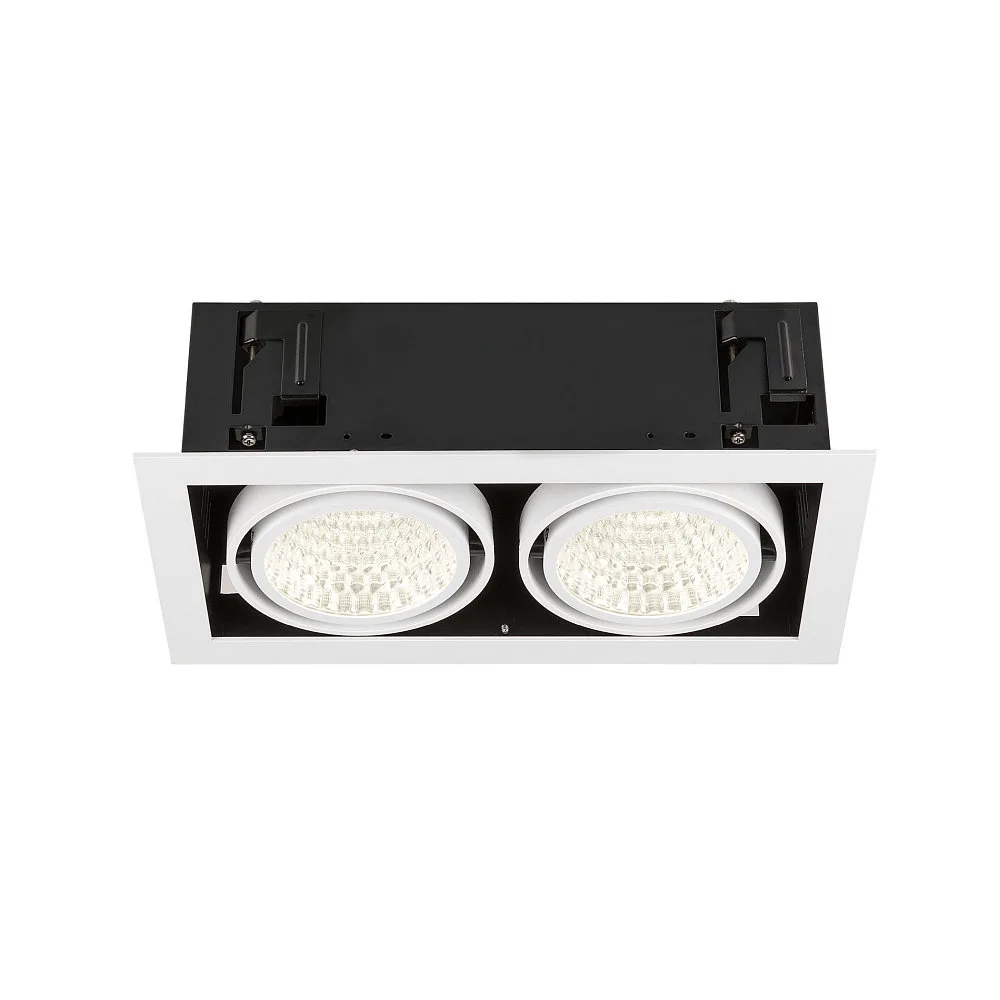

High-Quality LED Recessed Ceiling Spotlight KADUX DOUBLE

The KADUX DOUBLE LED recessed ceiling spotlight from SLV impresses with its modern, angular design and dual-lamp configuration. With a power of 54 watts and a luminous flux of 6800 lumens, it provides bright and even illumination. The luminaire is made of robust aluminum and steel, which are painted to ensure a long service life of up to 50,000 hours. The installation depth is 12.5 cm, allowing for a discreet integration into the ceiling. Thanks to the rectangular shape with two round, adjustable lamp heads, the light can be directed individually.

Excellent Light Quality and Technical Features

The light color is neutral white at 4000 Kelvin and offers an excellent color rendering index of over 90 CRI, ensuring natural and vivid colors. The spotlight has a luminous efficacy of 125.93 lumens per watt, making it particularly energy-efficient. The beam angle is 30 degrees, ideal for targeted lighting. The luminaire is equipped with an external driver that converts the mains voltage of 220-240V to a constant low voltage current of 350 mA. This ensures safe and reliable operation. Heat dissipation is effectively managed via the external connection box and driver.

Versatile Dimming Options for Individual Lighting Ambiances

The KADUX DOUBLE is continuously dimmable and compatible with DALI, DALI-2, as well as push-dimmer systems. This allows flexible adjustment of light intensity and easy integration into digital building automation systems. This way, you can optimally tailor the lighting to your needs and times of day. The luminaire is ENEC certified and corresponds to protection class 2, ensuring high safety standards. The IP20 protection rating guarantees reliable operation within the intended area.

Practical Installation and Versatile Applications

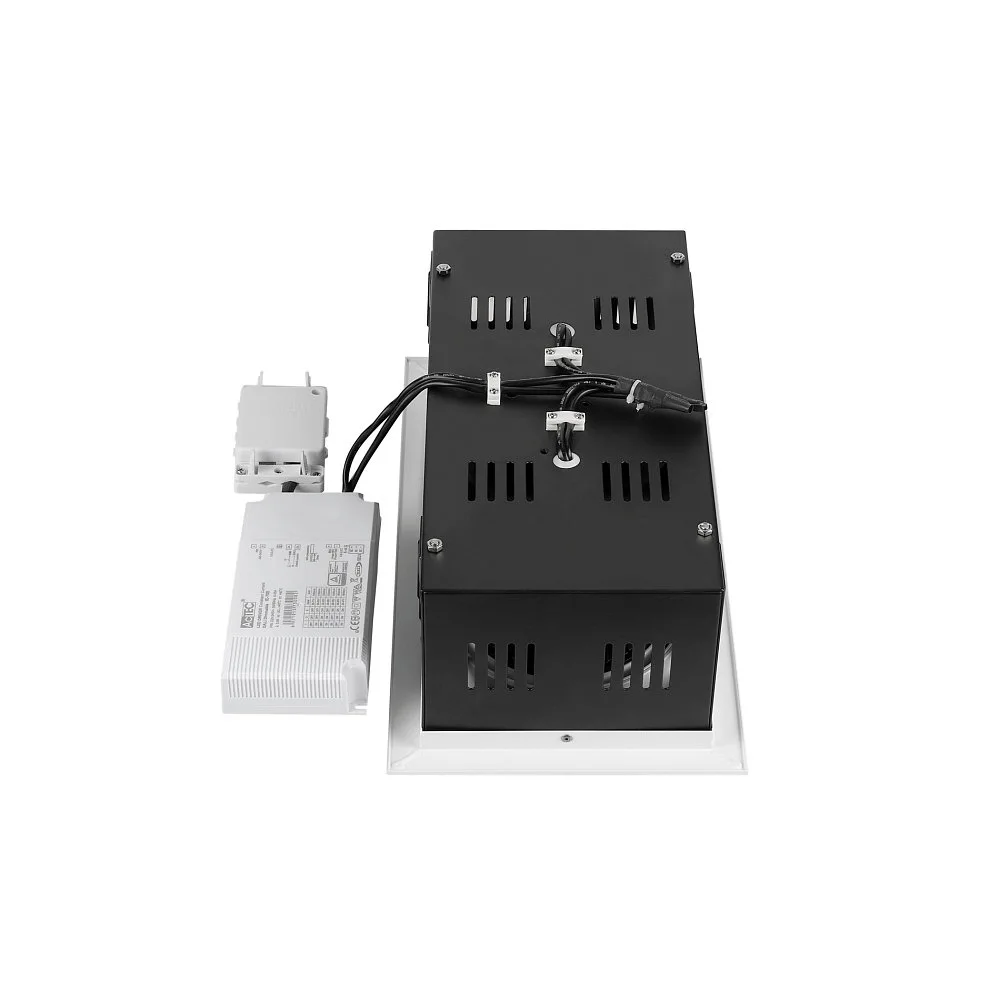

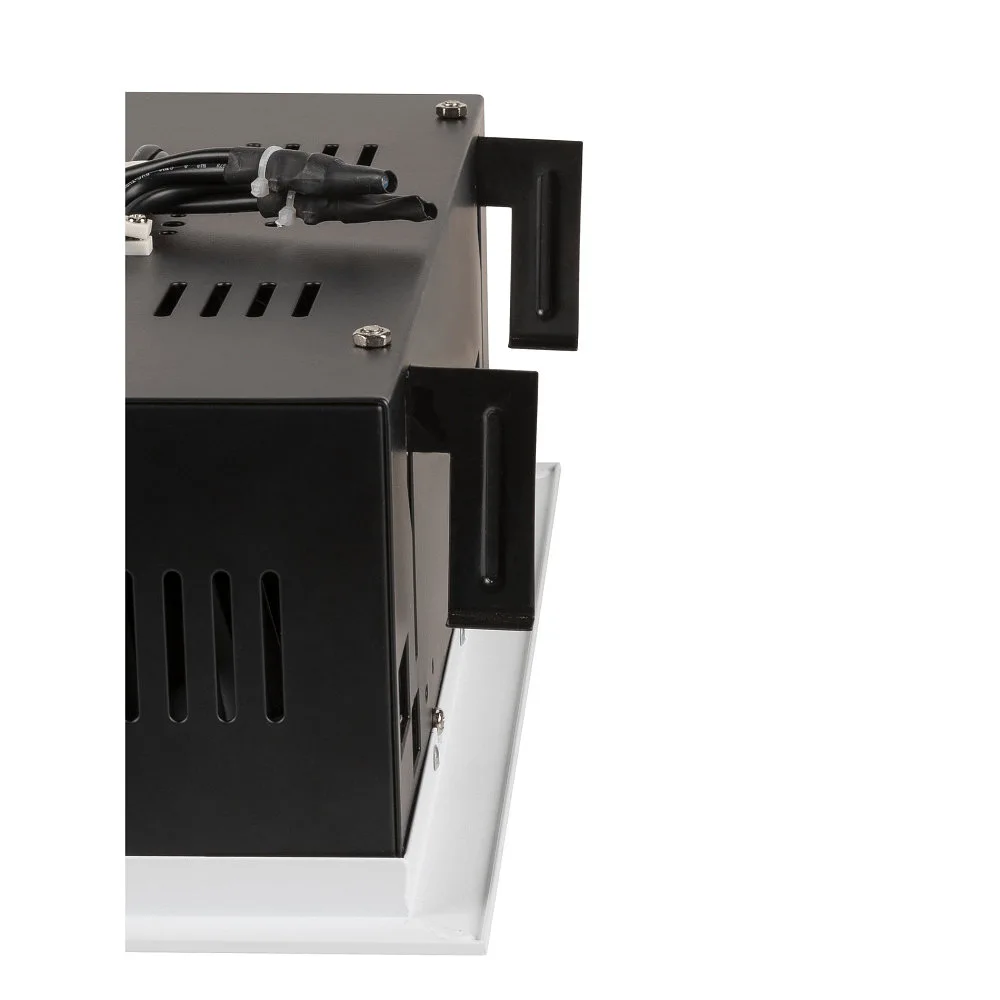

Installation is done as a recessed fitting in hollow ceilings with a maximum material thickness of 2.5 cm. The luminaire is supplied including a connection box with integrated through-wiring, which simplifies installation. Four integrated spring clips ensure secure retention in the installation shaft. The black or white housing with a painted surface blends harmoniously into various room designs. Additionally, the spotlight is also available as a single-lamp version and is part of the KADUX series, which offers other models with different LED modules and reflector lamps.

Sustainability and Energy Efficiency Combined

With an annual energy consumption of only 54 kWh per 1000 operating hours, the KADUX DOUBLE is particularly economical. The high luminous efficacy and long service life help to significantly reduce operating costs and maintenance efforts. Thanks to precise color consistency (SDCM6), a consistent light quality is ensured, which is ideal for professional and demanding lighting tasks. Overall, this LED recessed spotlight offers a perfect combination of design, functionality, and modern technology.

Colour:
black
white
Secondary color:
black
Glass color:
clear
Reflector color:
silver,faceted

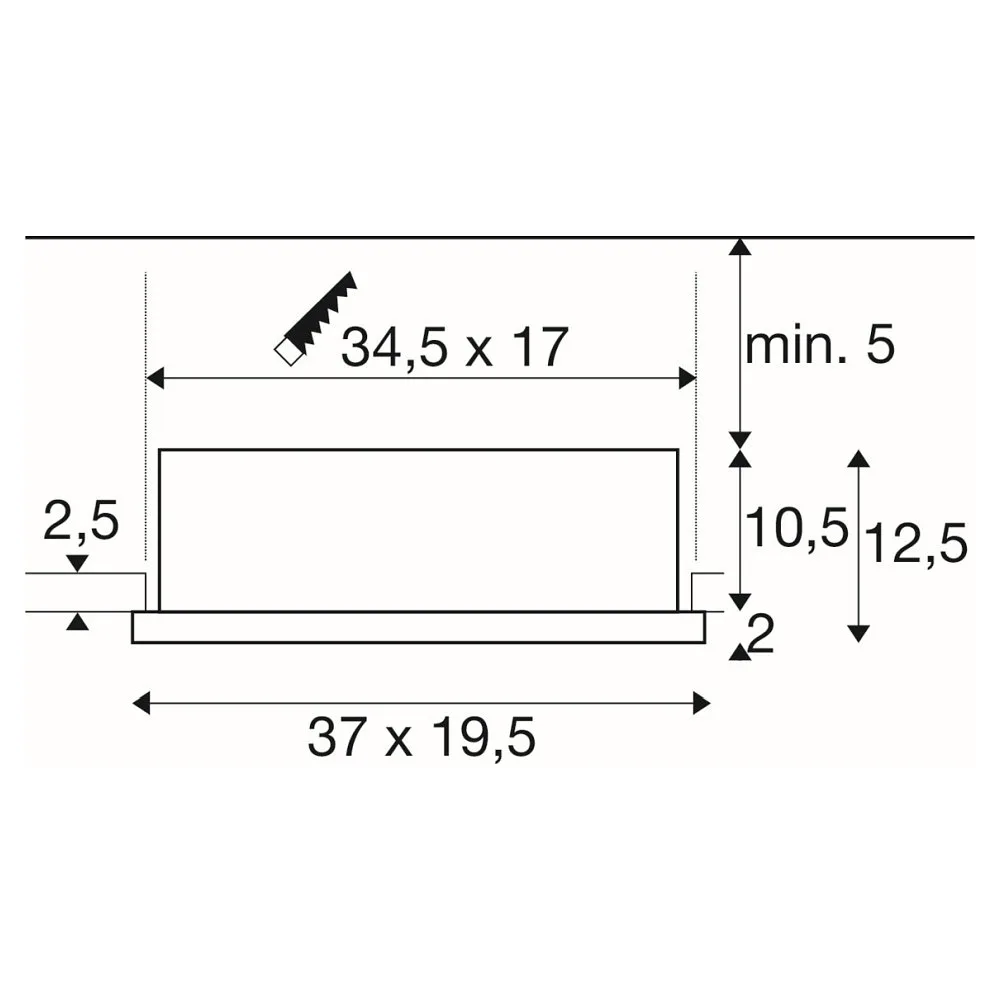

Dimension:
total-L∕ B∕ H: 37∕ 19,5∕ 12,5 cm
visible part-L∕ B∕ H: 37∕ 19,5∕ 2 cm
max. material thickness-H: 2,5 cm
Material:
aluminium
steel
lacquered
Weight:
2,8 kg
Product type:
recessed spotlight
Lamp shape:
square
Accessories:
connection box - included in delivery
through wiring - included in delivery
driver - included in delivery
controller - not included in delivery
dimmer - not included in delivery
Warranty period:
5 years
Application area:
suitable for indoor use
Field of application:
ceiling
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
push dimmer,DALI-2
Power frequency:
50/60 Hz
Power consumption:
54 W
Emitting angle:
30 °
Number of bulbs:
2
Light colour:
neutral white
Light emission:
direct
Beam direction:
swivelling
Light flux:
6800 lm
Light yield:
125,93 lm/W
Colour temperature:
4000 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
>90 Ra
1A
IK-Rating:
IK02 up to 0.20 Joule
Fitting depth:
12,5 cm
Fitting opening length:
34,5 cm
Fitting opening width:
34,5 cm
Wire/connection lead diameter:
2,52 mm
Mounting:
recessed mounting
Protection class:
2
IP-protection class:
IP20
Product ENEC tested:
yes
Additional information:
Material thickness ceiling: 25mm max.
System power: 54W
Color consistency (McAdam ellipse): SDCM6
ambient temperature:
-20 ... +40 °C
Energy efficiency category:
D
EPREL No:
2093766
Energy consumption:
54 kWh/1.000 h
Article number:
1008573
Purchasing quantity:
1 piece
Brand:
SLV
Manufacturer:
SLV
Manufacturer information
SLV GmbH, Daimlerstraße 21-23, 52531, Übach-Palenberg, Germany, info@slv.de
