ceiling recessed luminaire KADUX SINGLE square IP20, black, white dimmable

Modern Design and High-Quality Materials

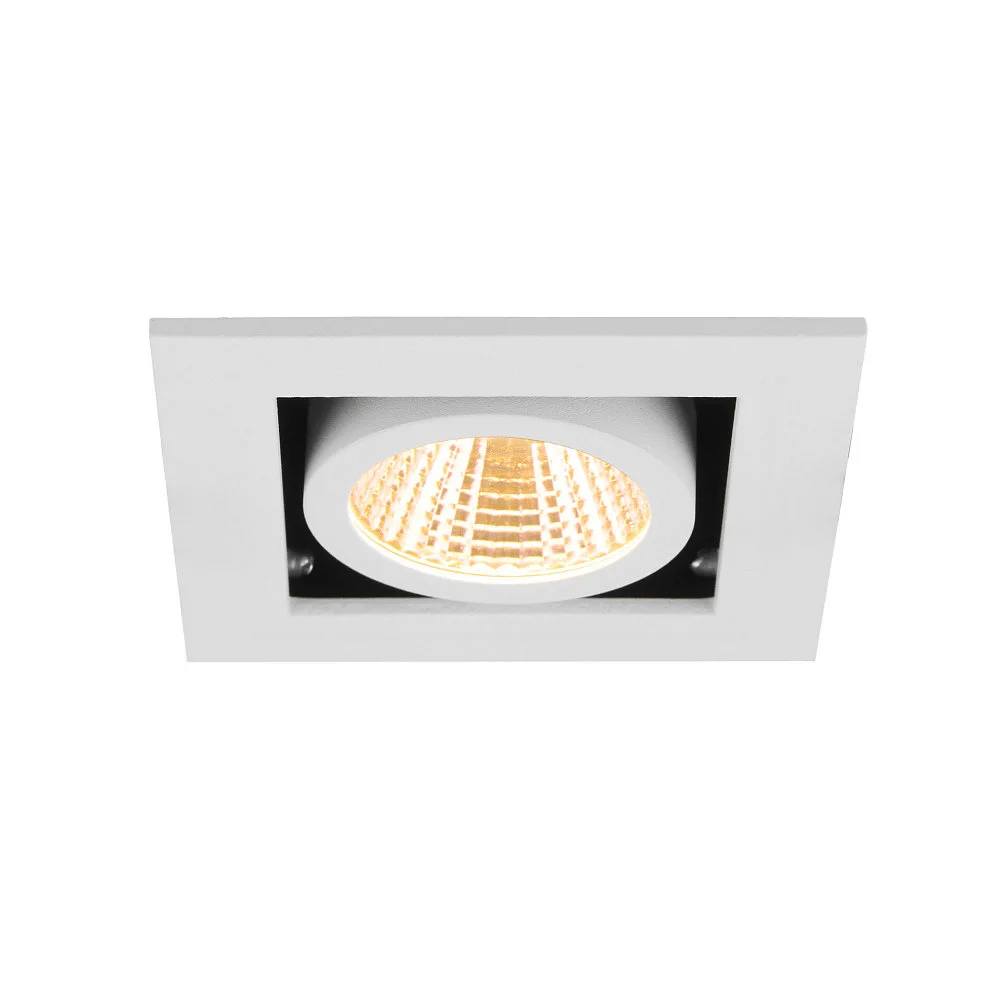

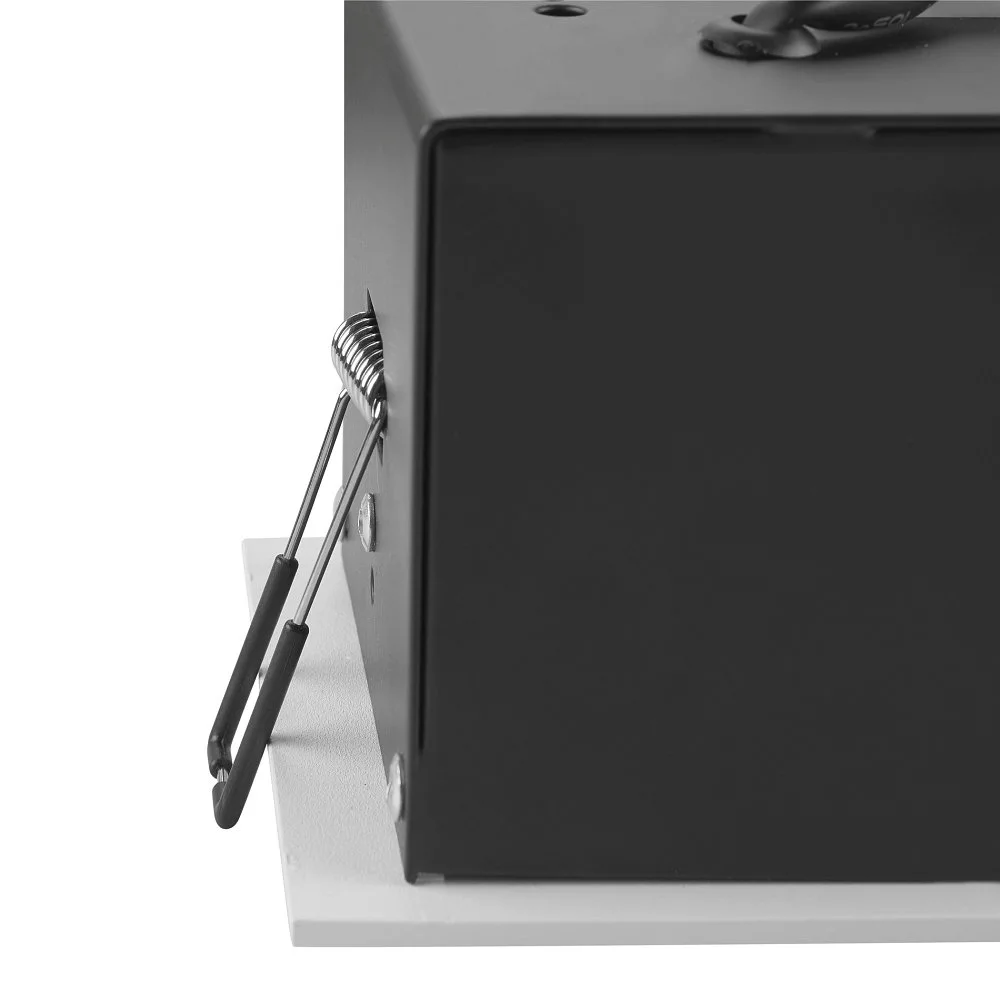

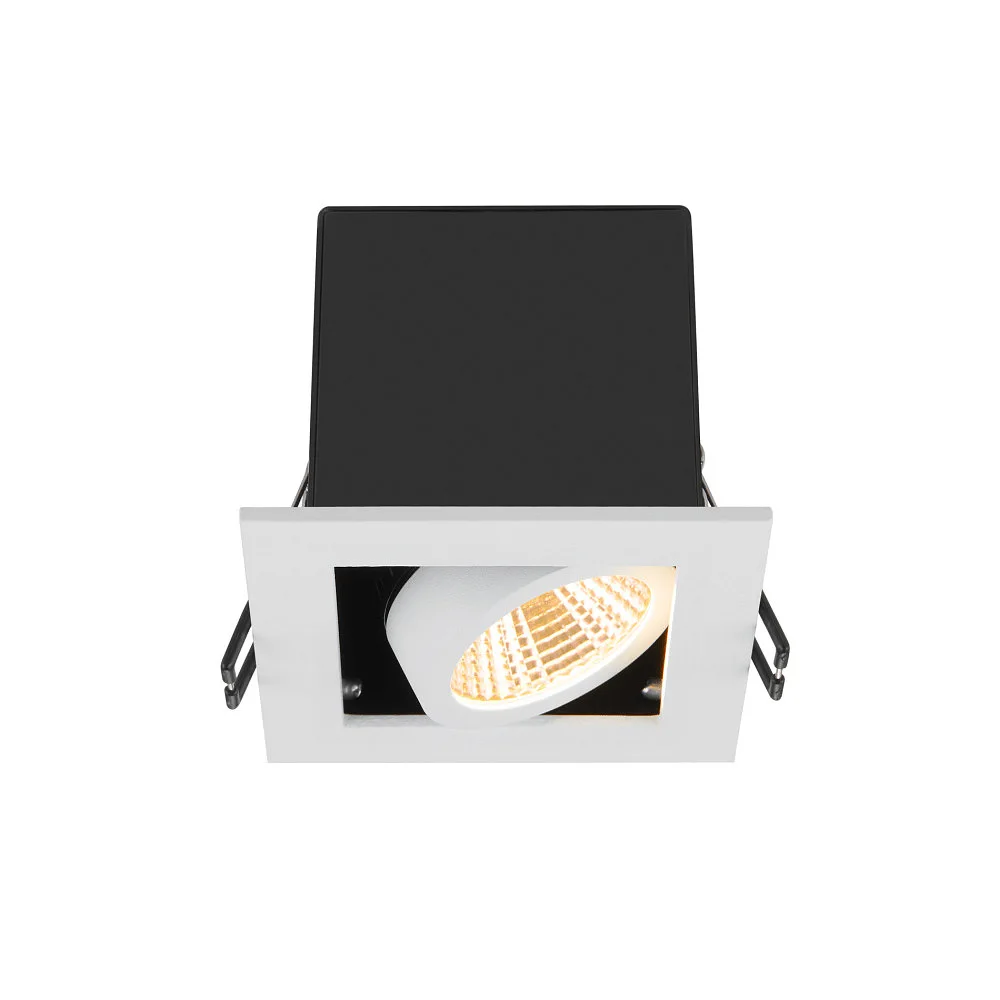

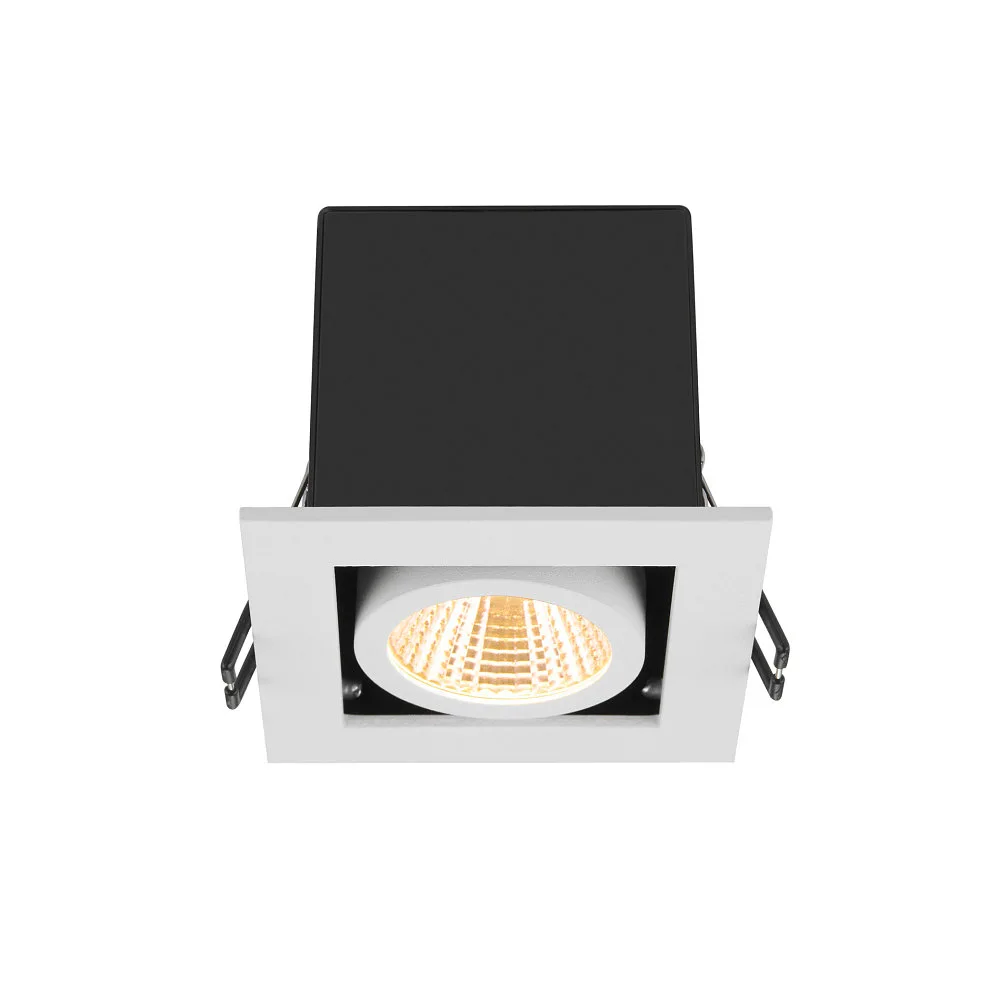

The KADUX SINGLE PHASE LED recessed ceiling spotlight impresses with its elegant, square design featuring a swiveling, round lamp head. It is available in black and white, with the white version having a black interior. Made from robust aluminum and acrylic, the light fixture convinces with durability and high-quality craftsmanship. With dimensions of 9 x 9 cm and an installation depth of only 8 cm, the spotlight integrates unobtrusively into any ceiling. The two integrated spring clips facilitate installation and ensure a secure hold.

Efficient LED Technology for Warm White Light

Equipped with a permanently installed LED light source, the spotlight delivers a light output of 770 lumens at only 7.5 watts power consumption. The light color is a pleasant warm white at 3000 Kelvin, creating a cozy atmosphere. Thanks to a high luminous efficacy of over 102 lumens per watt, the spotlight is particularly energy-efficient and saves electricity costs. The LED has an impressive lifespan of 50,000 hours, ensuring infrequent lamp replacements.

Excellent Color Rendering and Flexible Light Direction

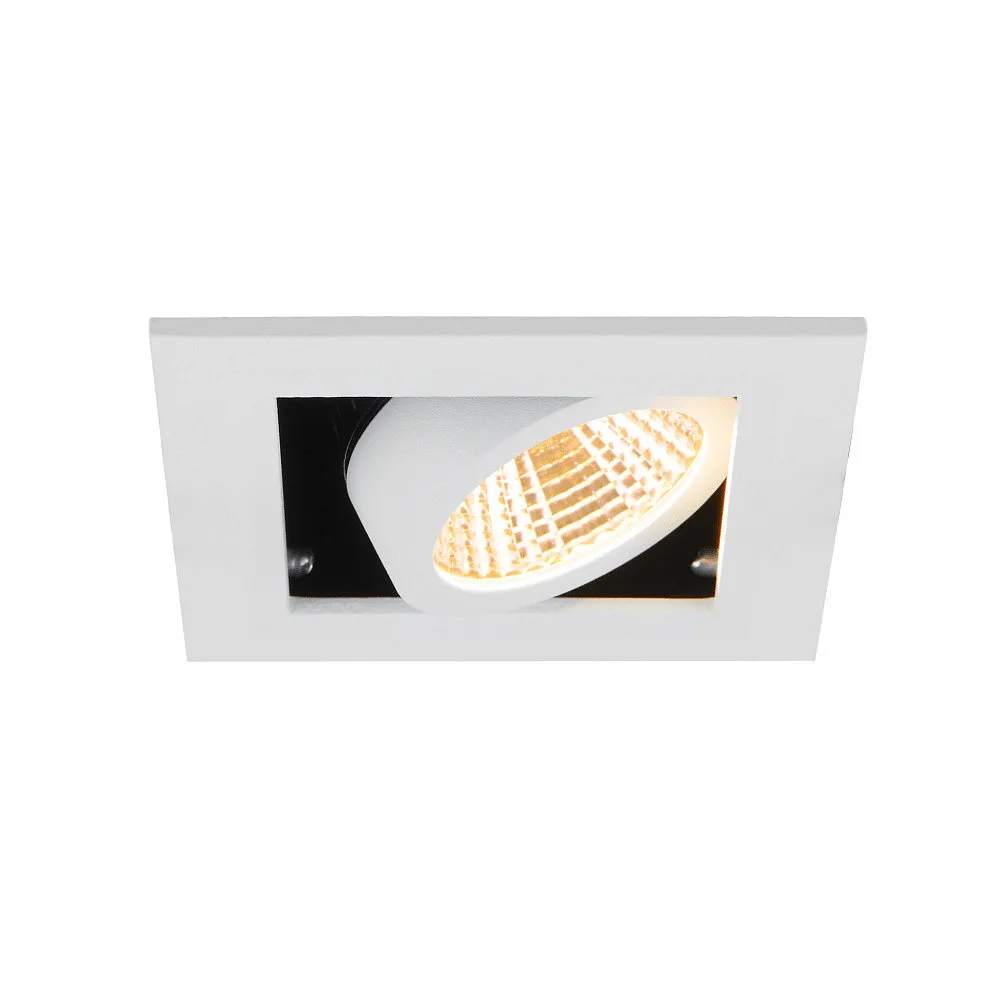

With a color rendering index (CRI) of over 90, the KADUX spotlight provides natural and vivid color representation, ideal for demanding lighting situations. The swiveling lamp head can be adjusted 20 degrees to each side, allowing precise alignment of the light beam. The beam angle of 38 degrees enables targeted illumination of areas or objects without glare.

Easy to Install and Dimmable

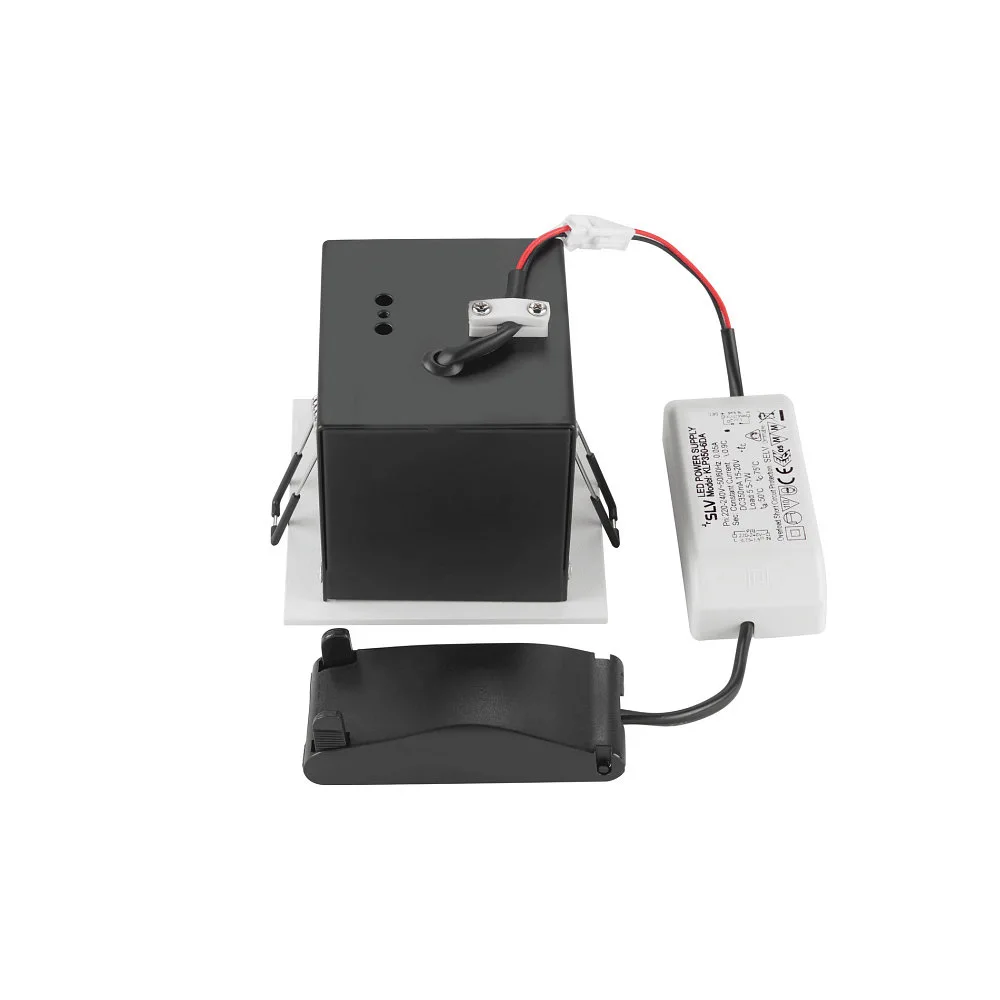

The recessed light is delivered including a connection box and external driver, which ensure safe and efficient power supply. The operating voltage is 220-240 volts, while the spotlight operates with a constant current of 350 mA. The dimming function is compatible with both leading-edge and trailing-edge dimmers, allowing brightness adjustment according to individual needs. Protection class 2 guarantees safe handling without grounding connection.

Versatile Applications and Accessories

The KADUX SINGLE PHASE LED recessed spotlight is ideal for use in hollow ceilings with a maximum material thickness of 3 cm. The housing is painted and offers good heat dissipation, supported by the external driver. In addition to the single-lamp version, two- and three-lamp variants are also available, as well as other models from the KADUX series with integrated LED modules or replaceable reflector lamps. On request, a light distribution curve can be provided for planning purposes.
