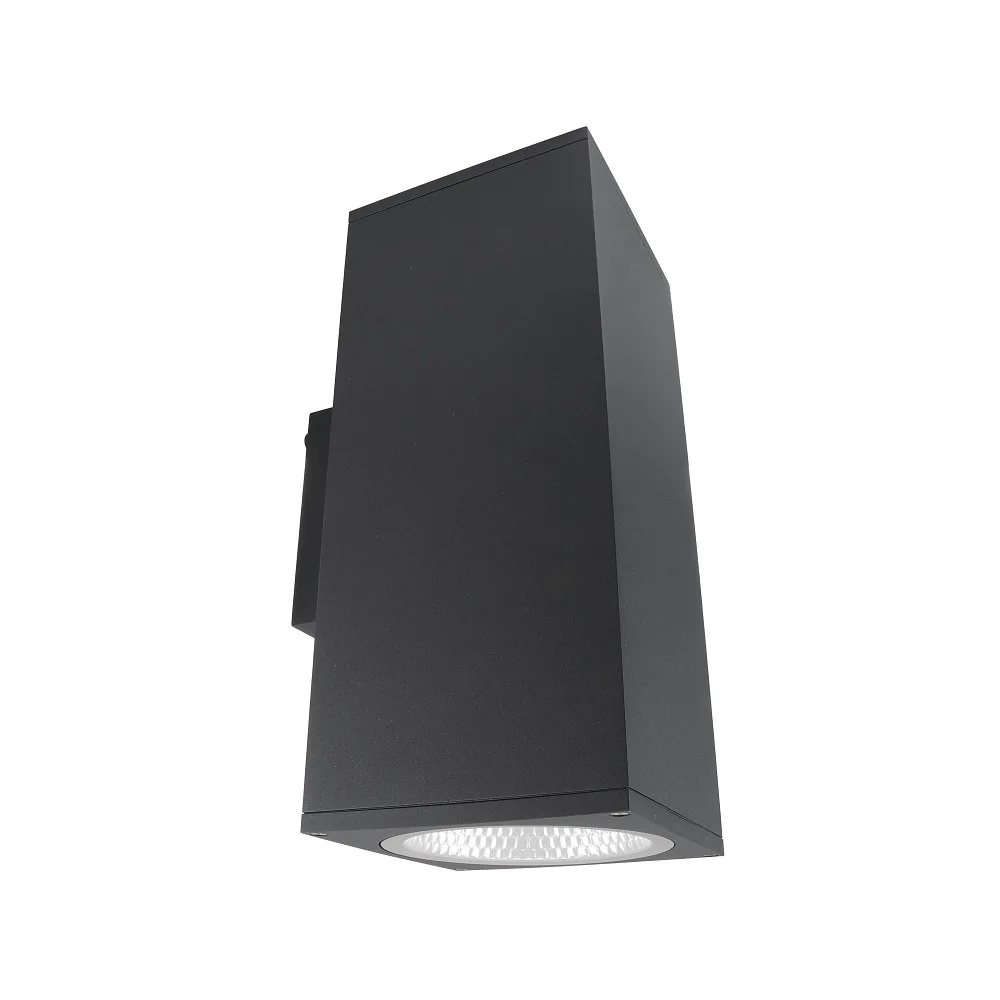

facade spotlight SHORELINE PRO SQUARE 140 UP&DOWN 2 flames, square, CCT Switch IP65, dark grey dimmable

Deko-Light



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

Efficient and High-Quality LED Lighting

The LED façade spotlight SHORELINE PRO SQUARE 140 UP&DOWN from Deko-Light impresses with its high performance and energy efficiency. With a power consumption of only 31.5 watts, it produces a luminous flux of up to 3400 lumens at a beam angle of 36 degrees. The luminous efficacy of 107 lumens per watt ensures bright yet energy-efficient lighting. Thanks to an average lifespan of 50,000 hours, the spotlight is especially durable and low-maintenance.

Adjustable Light Color and Excellent Color Rendering

The light color of the SHORELINE PRO SQUARE 140 can be set between warm white (3000K) and neutral white (4000K), allowing the lighting to be optimally adapted to different moods and requirements. With a color rendering index (CRI) of over 90, the spotlight offers very good color representation, making colors appear natural and vibrant. The color consistency is particularly uniform thanks to a low tolerance of 3 SDCM, which ensures a harmonious overall appearance when using multiple fixtures.

Robust and Versatile Design

The housing of the façade spotlight is made of durable aluminum in dark gray color and features a compact cuboid shape with dimensions of 14 x 33.2 x 18.45 cm. Thanks to the IP65 protection class, the spotlight is protected against dust and water, while the IK08 rating provides high resistance against mechanical impacts such as vandalism or hail. Additionally, the device is resistant to sea air, making it suitable for special application areas with high humidity.

Flexibility and Easy Installation

The SHORELINE PRO SQUARE 140 is equipped with two light sources that emit light both upwards and downwards, providing attractive accent lighting. The integrated through-wiring simplifies installation in series, as multiple spotlights can be connected via a single cable. The mounting plate is removable and secured by a plug connection, further easing handling. Moreover, the spotlight is analog dimmable with both phase-cut and phase-control dimmers.

Customizable Features and Extensive Accessories

The scope of delivery already includes glass, a light color switch, the driver, and through-wiring. Additionally, the spotlight can be expanded with further accessories such as light slot attachments (gobos), various reflectors with different beam angles (24°, 36°, 60°), or spacers. These options make the SHORELINE PRO SQUARE 140 a versatile and adaptable solution for different lighting projects and requirements.

Colour:
dark grey
Glass color:
clear
Reflector color:
chrome
Dimension:
total-B∕ H∕ T: 14∕ 33,2∕ 18,45 cm
spot-B∕ H∕ T: 14∕ 33,2∕ 14 cm
base-B∕ H∕ T: 8∕ 13∕ 4,45 cm
Material:
aluminium
Weight:
3,548 kg
Product type:
facade spotlight
Accessories:
through wiring - included in delivery
glass - included in delivery
light colour switch - included in delivery
driver - included in delivery
spacer - not included in delivery
dimmer - not included in delivery
Gobo - not included in delivery
reflector - not included in delivery
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
trailing edge,leading edge
Power frequency:
50/60 Hz
Power consumption:
31,5 W
Emitting angle:
36 °
Number of bulbs:
2
Voltage:
Clamp
Light colour:
warm white / neutral white (in steps)
Beam direction:
up / down
Light flux:
3200/3400 lm
Light yield:
107 lm/W
Colour temperature:
3000 / 4000 K
Average life span of a bulb in hours:
50000 h
Switching cycles:
100000
Colour rendering index:
92 Ra
UGR:
< 12
Colour rendering index:
1A
IK-Rating:
IK08 up to 5.00 Joule
Protection class:
1
IP-protection class:
IP65
Additional information:
Efficiency: 87%
ambient temperature:
-20 … +40 °C
Tc (°C):
36 °C
Energy efficiency category:
E
Energy consumption:
32 kWh/1.000 h
Article number:
D-731188
Purchasing quantity:
1 piece
Brand:
Deko-Light
Manufacturer:
Deko-Light
Manufacturer information
Deko-Light Elektronik Vertriebs GmbH, Auf der Hub 2, 76307, Karlsbad, Germany, deko@deko-light.com
