facade spotlight SHORELINE PRO SQUARE 140 UP&DOWN 2 flames, square, CCT Switch IP65, light grey dimmable

Modern Design and High-Quality Craftsmanship

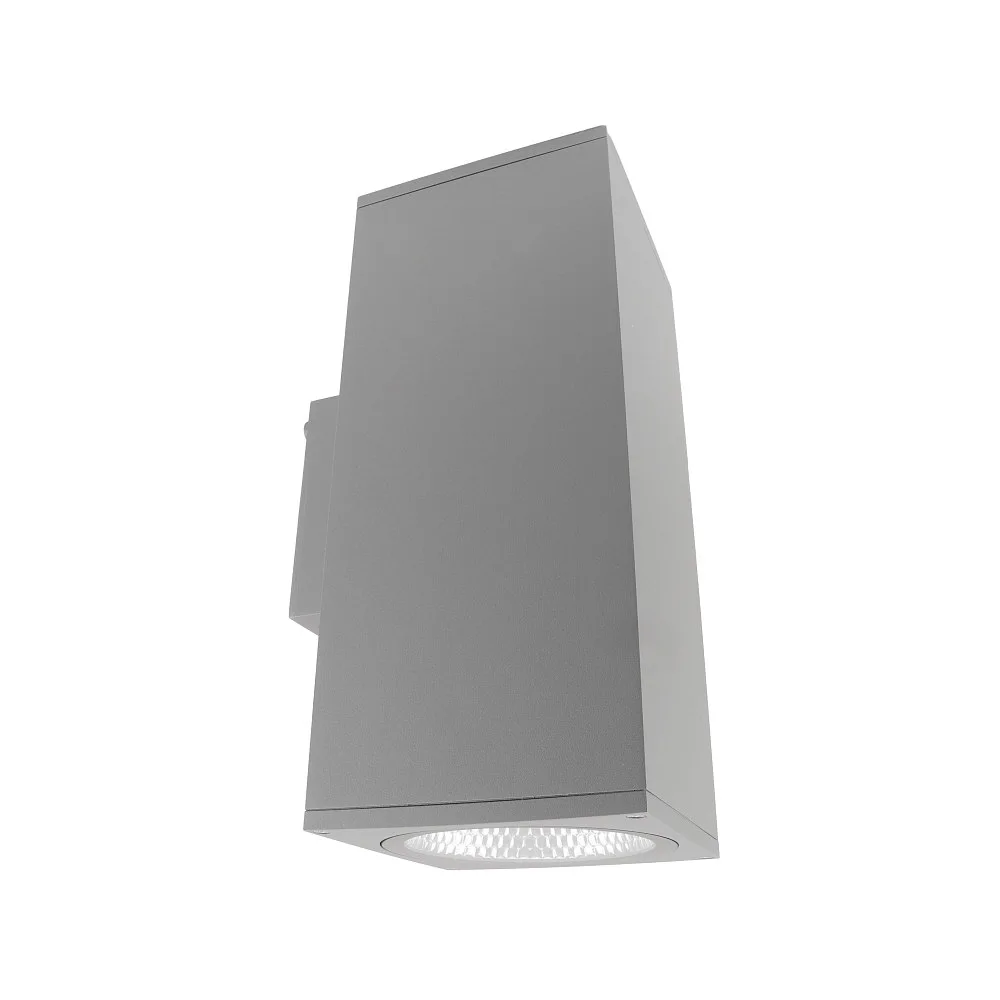

The LED facade spotlight SHORELINE PRO SQUARE 140 UP&DOWN impresses with its elegant, light gray aluminum housing featuring a compact cuboid body measuring 14 x 14 cm. With its robust construction and protection rating of IP65, it is well protected against dust and splashing water. Additionally, the IK08 certification ensures high resistance to vandalism, accidents, or hail damage. This durable material and high-quality workmanship make the spotlight a long-lasting and reliable lighting solution.

Bright and Efficient Light Output

With a power consumption of 55 watts, the facade spotlight delivers an impressive luminous efficacy of 105 lumens per watt, resulting in a luminous flux of up to 5800 lumens. The 36° wide beam angle ensures targeted and effective illumination. The fixture is equipped with two LEDs that emit light both upwards and downwards, enabling an attractive and balanced light distribution. The average lamp life is 50,000 hours, guaranteeing long-lasting and low-maintenance operation.

Flexible Light Colors and Dimmable Control

The SHORELINE PRO SQUARE 140 offers two selectable color temperatures: warm white at 3000 Kelvin and neutral white at 4000 Kelvin. This allows the lighting ambiance to be individually adjusted. The very good color rendering with a CRI value above 92 ensures natural and vivid colors in the surroundings. Moreover, the spotlight is analog dimmable and supports both trailing-edge and leading-edge dimmers, allowing simple and stepless light control. The glare-free design with a UGR value below 16 provides pleasant light without disturbing reflections.

Practical Installation and Versatile Applications

The facade spotlight features a detachable mounting plate with a secure plug connection and angled fixing screw, enabling easy and stable installation. Thanks to through-wiring, installation in series with only one cable is possible without problems, saving time and materials. It operates on a mains voltage of 220-240 volts and is also suitable for a wide voltage range from 176-250 volts DC. The high switching endurance of up to 100,000 switching cycles ensures reliable use over many years.

Accessories and Customization Options

The scope of delivery includes important components such as the glass, driver, light color switch, and through-wiring. Optionally, the spotlight can be expanded with various accessories, including light slit attachments (gobos), interchangeable reflectors with different beam angles (24°, 36°, 60°), and spacers. These customization options offer maximum flexibility for individual lighting concepts. The fixture is also sea air resistant, making it suitable for demanding environments.
