LED Furniture luminaire ECOLITE F HO, 8W, 3000K, IP20, white

LED Surface-mounted linear luminaire EcoLite F HO

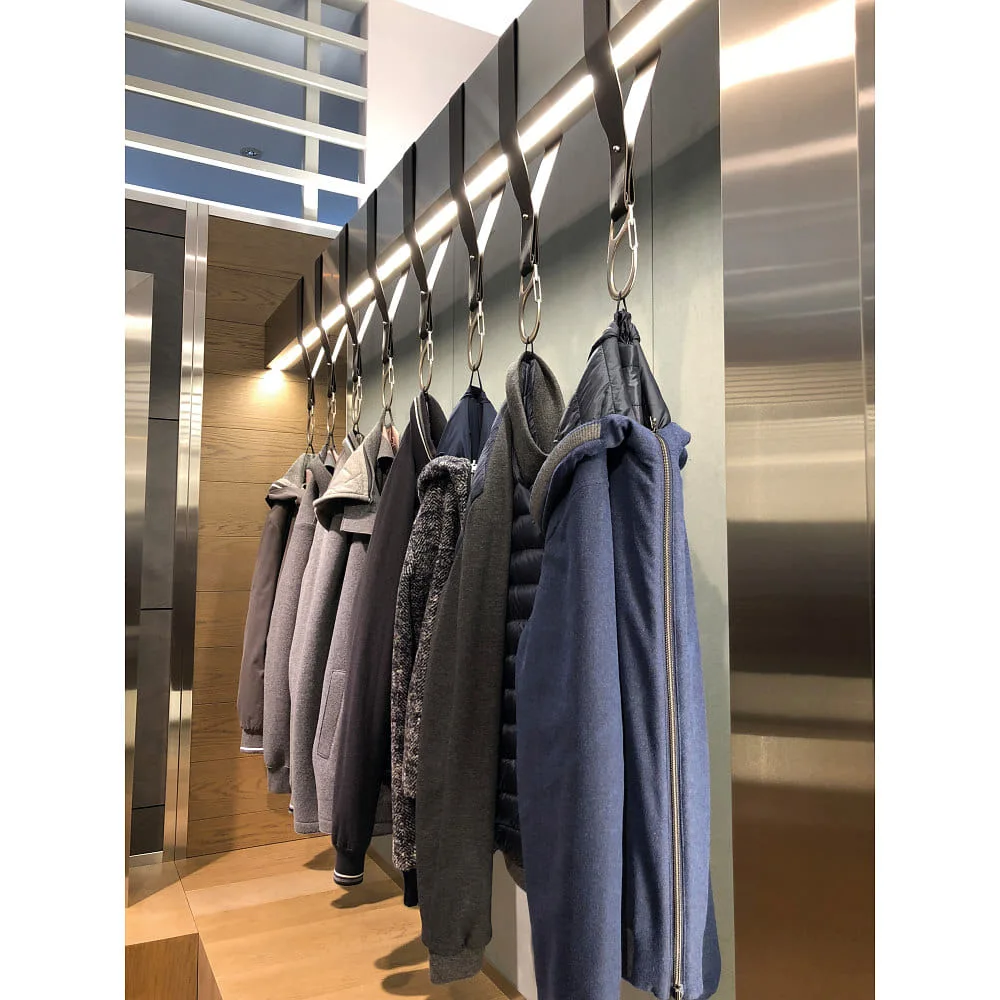

The LED surface-mounted linear luminaire EcoLite F HO from Hera is a slim LED linear luminaire that allows for minimal luminaire spacing to create homogeneous light bands. With a total power of up to 200 watts, individual luminaires can be connected, both in different lengths and for various applications such as under-cabinet lighting, furniture lighting, or object lighting in dry indoor spaces.

Technical details and accessories

The luminaire has a power consumption of 8.5W and a luminous flux of 960lm with a light output of 110lm/W. The color rendering index is between 80-89Ra and the light color is warm white. The luminaire features a white housing made of plastic and metal, a diffuser with a width of 2.75 cm, and an IP protection rating of IP20. The individual luminaires can be easily connected using a direct connector, while mounting clips are available for surface mounting.

Installation and operation

The LED surface-mounted linear luminaire EcoLite F HO from Hera is designed for connection to a 230V AC mains voltage. The required LED driver is already integrated into the luminaire. Daisy chaining, i.e. installing multiple luminaires in a row, is possible. The maximum current load is 2.5A and the average lamp life is 50000 hours.

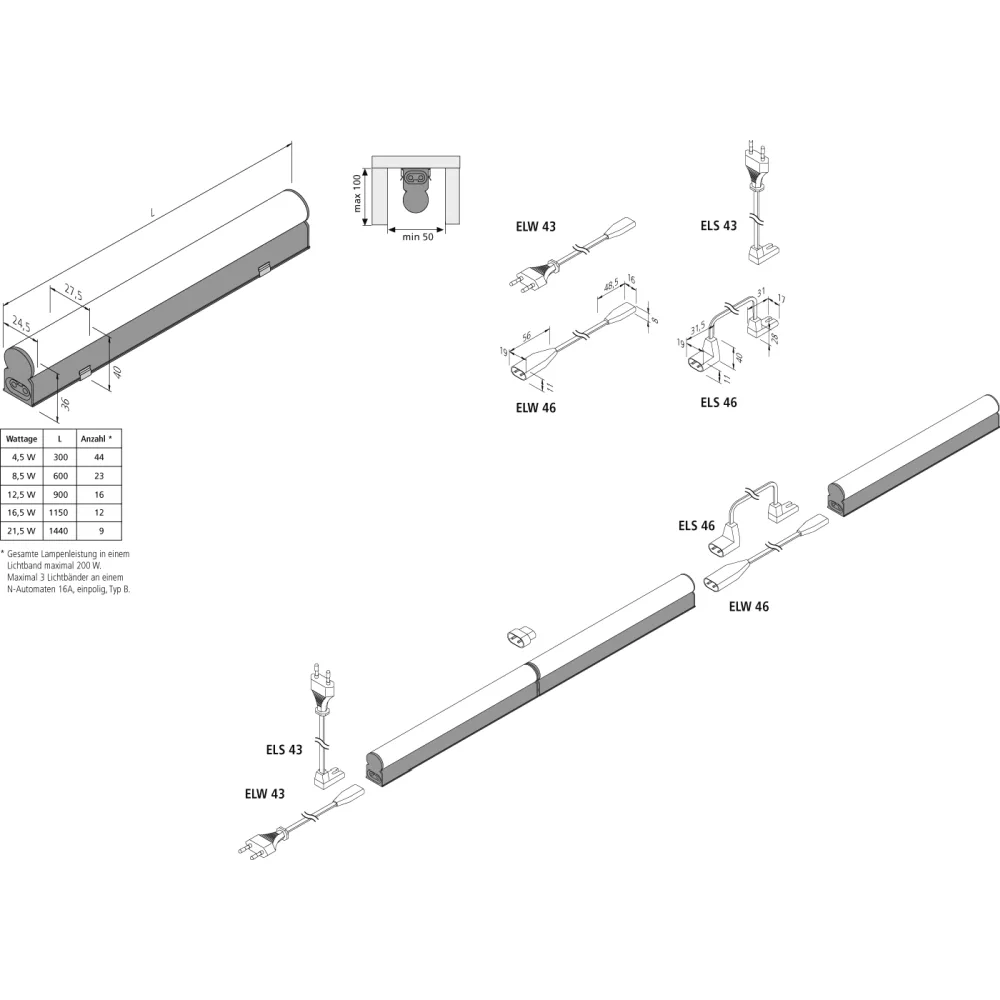

Mounting and connection

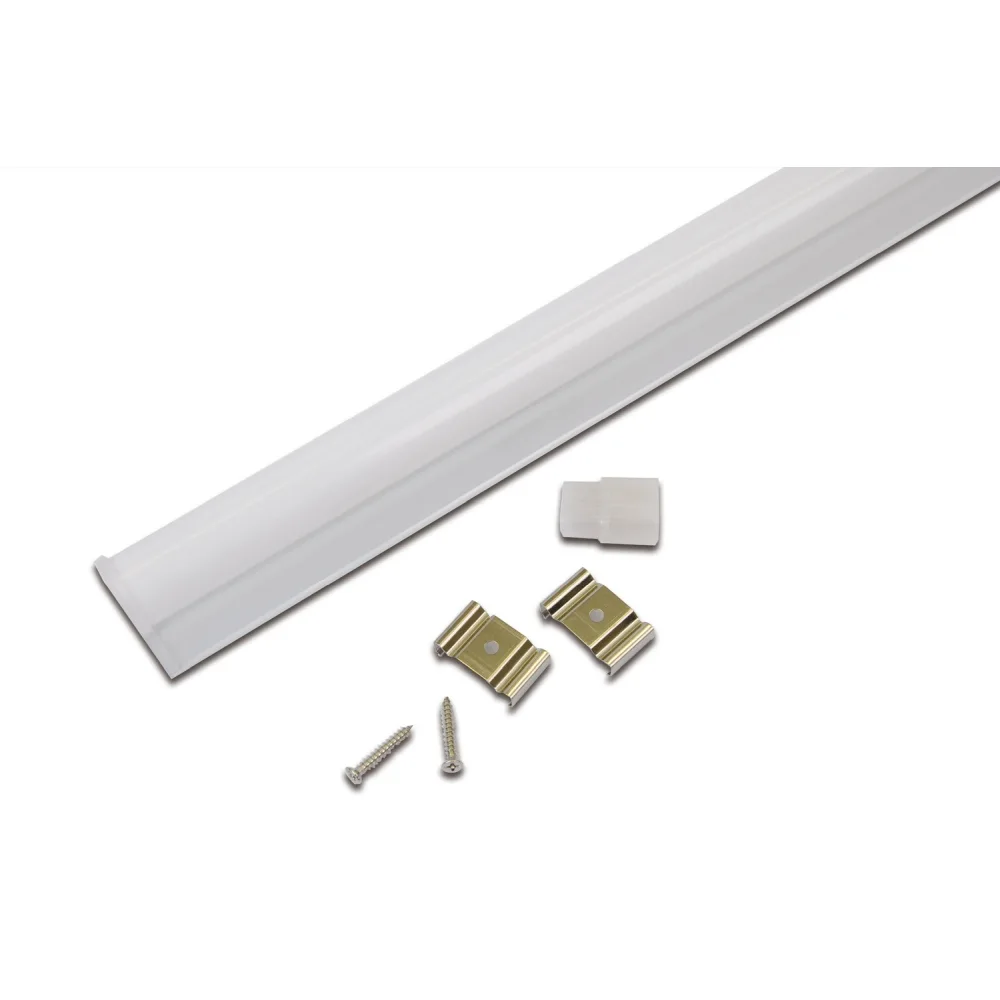

The luminaire can be expanded with accessories such as connection cables, linking cables, and magnet clips, and can be mounted in a versatile manner. For connecting the first luminaire in the light band, the appropriate connection cable is required. The dimensions of the frame when installed in glare protection frames are a maximum of 10cm depth and a minimum of 5cm width. The luminaire is suitable for indoor use only and cannot be used outdoors.

Energy efficiency and additional information

The LED surface-mounted linear luminaire EcoLite F HO has an energy efficiency class of E and an energy consumption of 9kWh/1000h. The color rendering grade is 1B and the luminaire is non-dimmable. With a color temperature of 3000K, it provides pleasant warm white light and diffuse light distribution. The light sources are included in the delivery and the luminaire cannot be replaced by LEDs.
