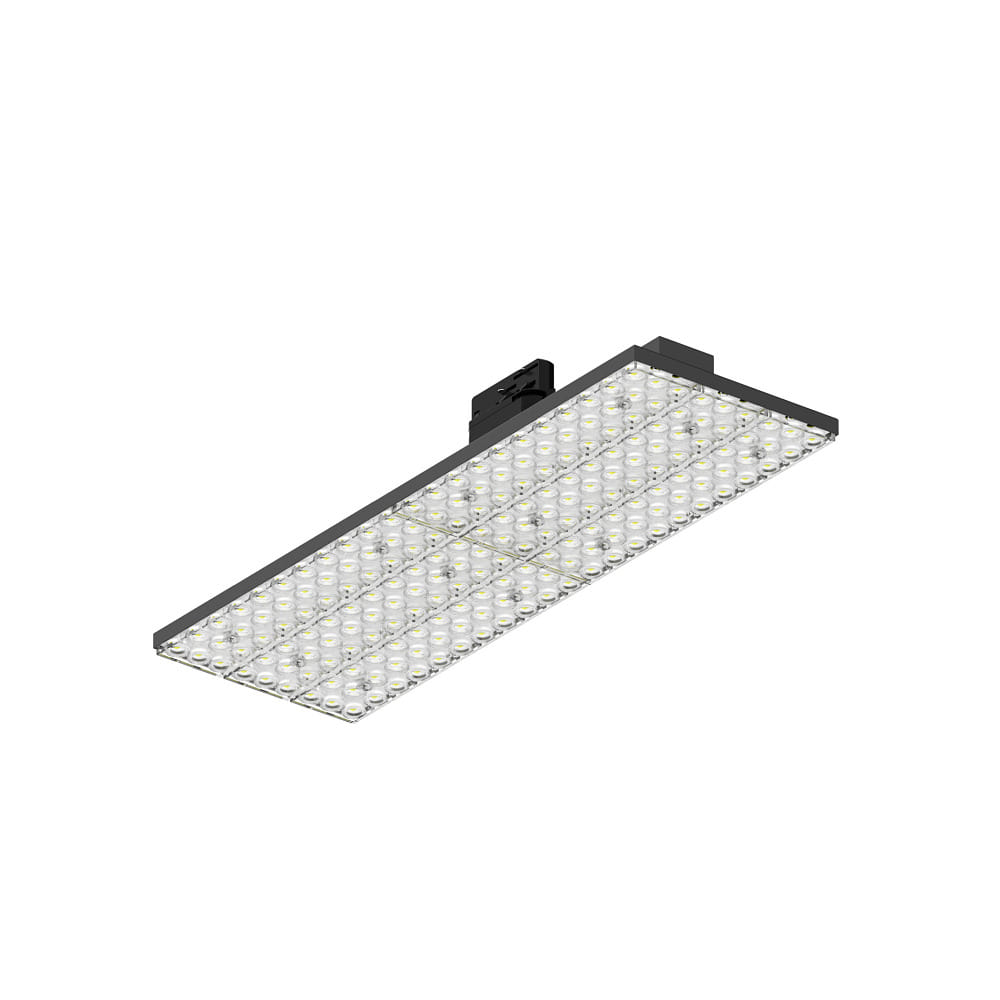

3-phase luminaire TRACK PANEL IP20, black

Modern Design and High-Quality Craftsmanship

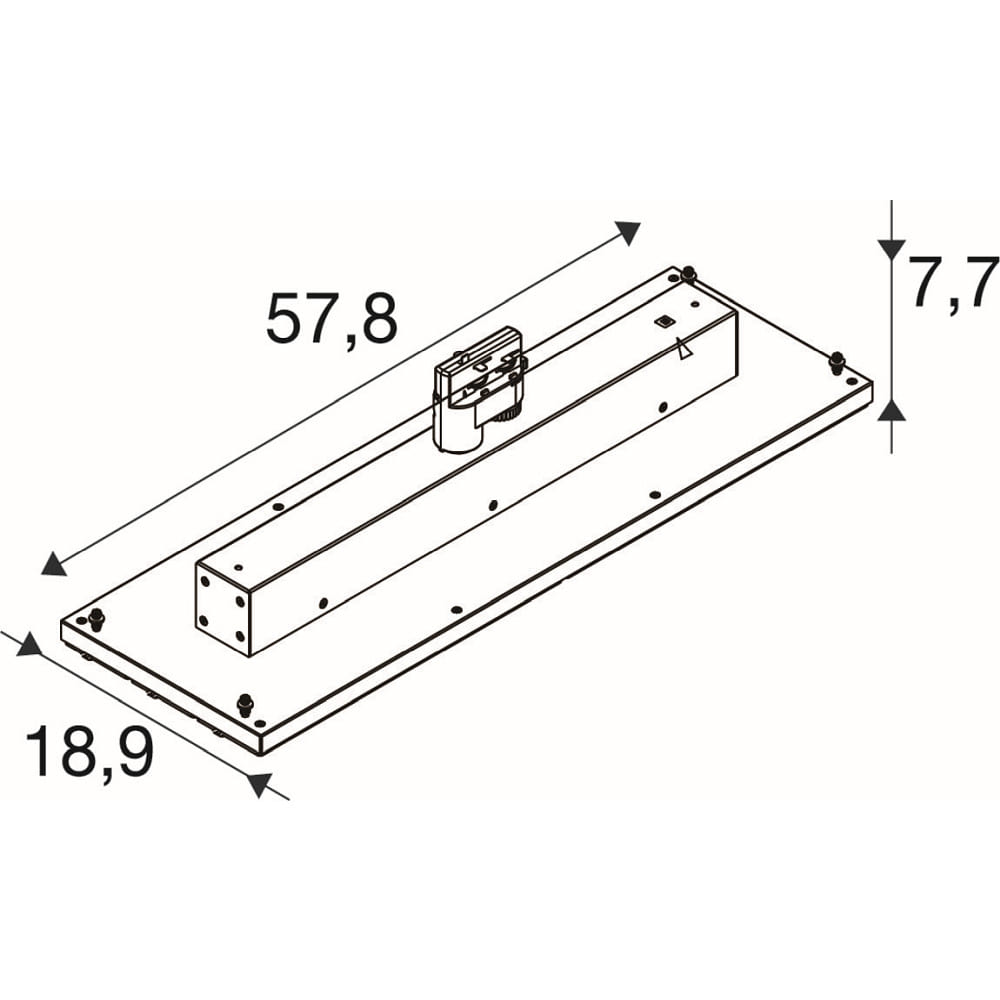

The LED 3-phase luminaire TRACK PANEL from SLV impresses with its elegant and functional design in black. The housing, made of robust steel, guarantees durability and stability. With dimensions of 57.8 cm length, 18.9 cm width, and 10.5 cm height, the luminaire fits harmoniously into various environments while offering a compact design.

Efficient Light Output with Adjustable Color Temperature

The luminaire has a power consumption of 40 watts and achieves an impressive luminous efficacy of 175 lumens per watt. It produces a luminous flux of either 7000 or 12,300 lumens. The color temperature is adjustable in steps and can be selected between warm white (3000 K) and neutral white (4000 K) to meet different lighting needs.

Optimal Illumination Thanks to Wide Beam Angle

With a beam angle of 90°, the TRACK PANEL provides an extremely wide light distribution of over 80°. The integrated diffuser lens distributes the light evenly and without glare, ensuring pleasant and efficient illumination. The luminaire is not adjustable but offers optimal light distribution through its design.

Easy Installation and Reliable Technology

The 3-phase luminaire is connected via a track adapter, enabling quick and straightforward installation. The included LED driver is current-controlled and replaceable, facilitating maintenance. With protection class 1 and protection rating IP20, the luminaire is designed to be safe and robust for its intended application.

Reliability and Safety in Operation

The TRACK PANEL is designed for ambient temperatures from -20 to 40 °C and meets high quality standards, including a color consistency within the McAdam ellipse SDCM3, ensuring uniform color rendering. Additionally, the maximum number of luminaires per circuit breaker is up to 20 with a B16 and up to 34 with a C16, making it ideal for versatile applications.
