3-phase luminaire TRACK PANEL IP20, black dimmable

High-Quality LED 3-Phase Luminaire from SLV

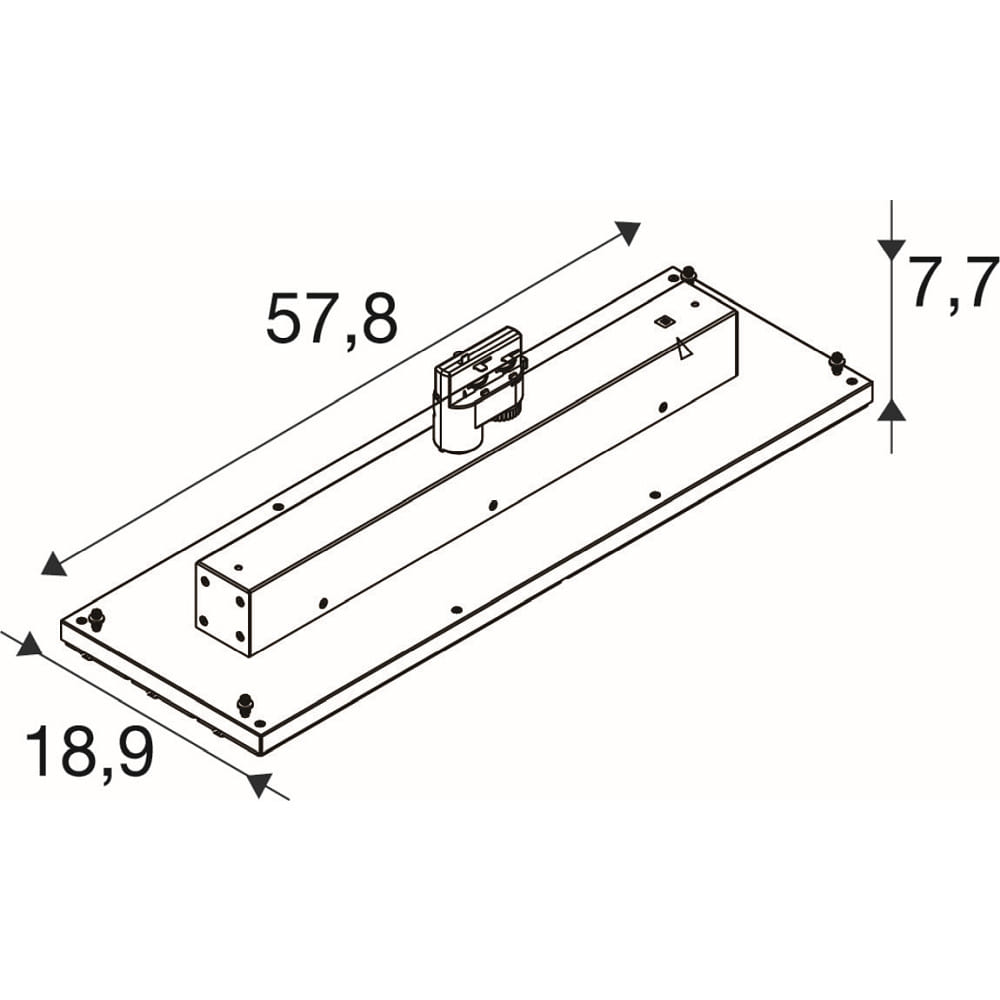

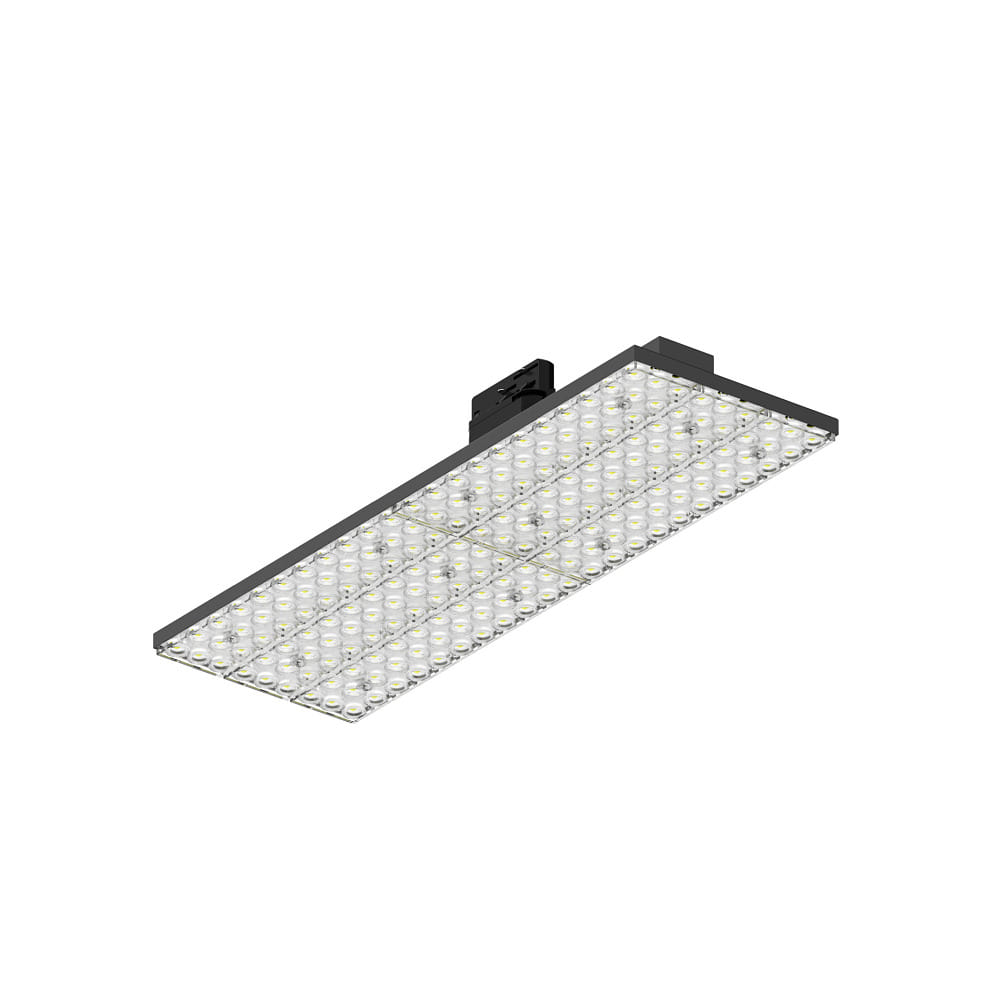

The LED 3-phase luminaire TRACK PANEL from SLV impresses with its modern technology and appealing design in elegant black. Made of robust steel, it is durable and stable. With dimensions of 57.8 x 18.9 x 10.5 cm, the luminaire seamlessly integrates into various lighting concepts. The easy installation is done via a power rail adapter, allowing flexible mounting.

Efficient Light Output and Flexible Color Temperature

With a power consumption of 40 watts, the luminaire produces an impressive luminous flux of up to 12,300 lumens. This ensures excellent illumination with low energy consumption. The luminous efficacy is 169.23 lumens per watt, indicating very efficient energy use. The color temperature can be adjusted stepwise between warm white (3000K) and neutral white (4000K), allowing the lighting to be customized to individual needs.

Wide Beam Angle and High-Quality Light Distribution

The TRACK PANEL luminaire features a wide beam angle of 90 degrees, providing broad and even light distribution. Thanks to the integrated light diffuser with a diffuser lens, the light is softly scattered, reducing glare and creating a pleasant atmosphere. The luminaire is not adjustable but offers an extremely wide beam angle of over 80 degrees due to its design.

DALI Dimmability and Easy Control

The LED luminaire is equipped with a current-controlled, replaceable driver that enables DALI and DALI-2 dimming. This allows continuous brightness adjustment, providing flexible lighting moods and saving energy. The luminaire is ideal for applications requiring precise light control. Furthermore, the color consistency (McAdam ellipse SDCM3) ensures uniform light color without visible color deviations.

Safety and Technical Details

Protection class 1 guarantees safe use, while the IP20 rating makes it suitable for use in protected environments. The luminaire operates reliably at ambient temperatures from -20 to 40 degrees Celsius and can be operated with up to 19 luminaires on a B16 circuit breaker or up to 31 luminaires on a C16 circuit breaker. The included driver ensures uncomplicated commissioning and long product life.
