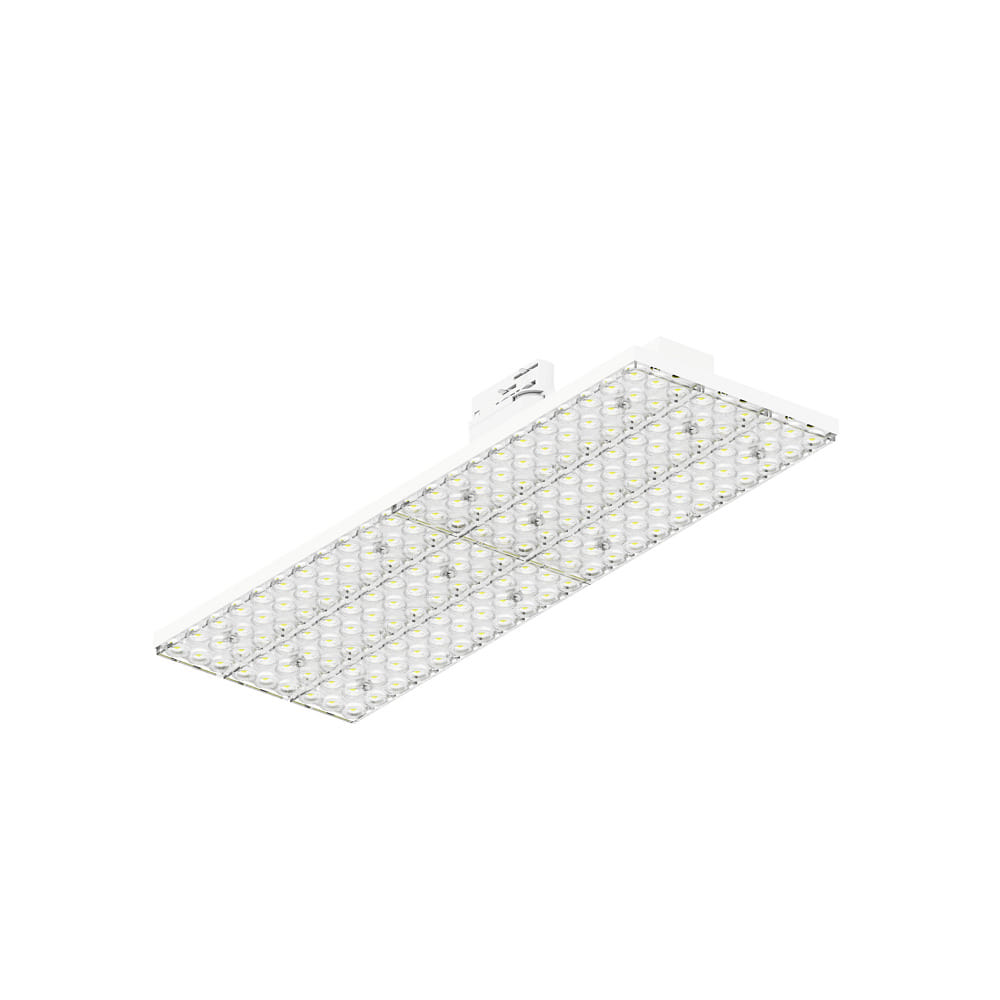

3-phase luminaire TRACK PANEL IP20, white

High-Quality LED 3-Phase Luminaire with Versatile Light Colors

The LED 3-phase luminaire TRACK PANEL from SLV impresses with its flexible color temperature, which can be adjusted stepwise between warm white (3000K) and neutral white (4000K). This allows the light to be customized to various individual needs. With a power consumption of 40 watts, the luminaire delivers an impressive luminous efficacy of 175 lumens per watt, ensuring efficient and bright illumination. The choice between two luminous flux levels of 7000 and 12300 lumens guarantees optimal lighting of large areas.

Precise Beam Angle and High-Quality Optics

The beam angle of the luminaire is 90°, which distributes the light widely and evenly. Additionally, the product is equipped with a diffuser lens that acts as a light distributor, providing pleasant, glare-free illumination. This technology enables an extremely wide beam distribution of more than 80°, effectively and uniformly lighting rooms. The luminaire is non-adjustable, making its positioning simple and secure.

Robust Construction and Easy Installation

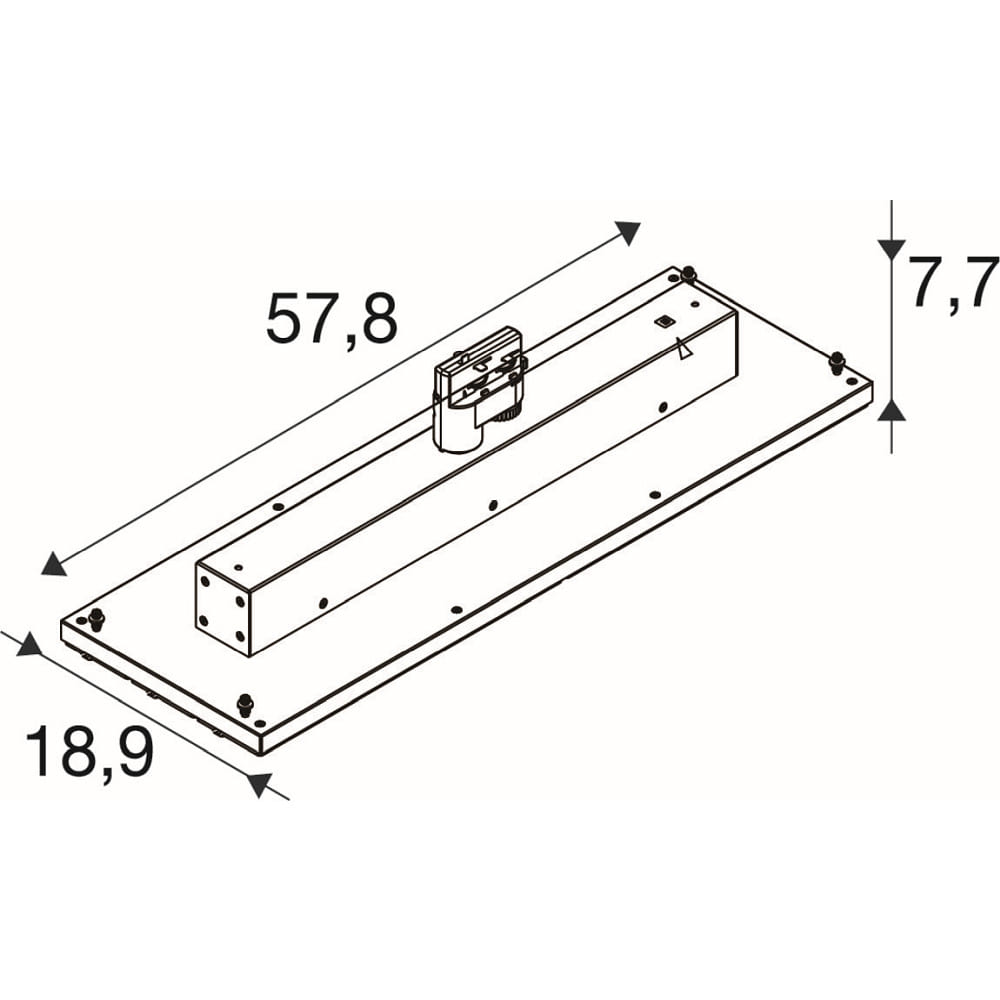

Made of durable steel and finished in elegant white, the luminaire seamlessly integrates into modern environments. Its compact size of 57.8 x 18.9 x 10.5 cm allows for unobtrusive installation. The 3-phase luminaire comes with a power rail adapter, enabling quick and uncomplicated mounting. The replaceable LED driver is already included in the delivery, providing additional convenience for maintenance and operation.

Technical Safety and Energy Efficiency

The luminaire is certified according to protection class 1 and features an IP20 rating, ensuring protection against solid foreign objects. It operates reliably at ambient temperatures between -20 and 40 degrees Celsius. The color consistency of the light source corresponds to the McAdam ellipse SDCM3, ensuring uniform light color without disturbing color deviations. With a maximum connection capacity of up to 34 luminaires on C16 circuit breakers, the luminaire is also well suited for larger lighting installations.

Optimal Combination of Design and Functionality

The LED 3-phase luminaire TRACK PANEL combines modern design with high functionality. The combination of efficient lighting technology, easy operation, and durable materials makes this product a sustainable choice for those who value quality and performance. Thanks to the current-controlled LED driver, stable and energy-saving operation is ensured, while the stepwise adjustable color temperature provides flexible lighting.
