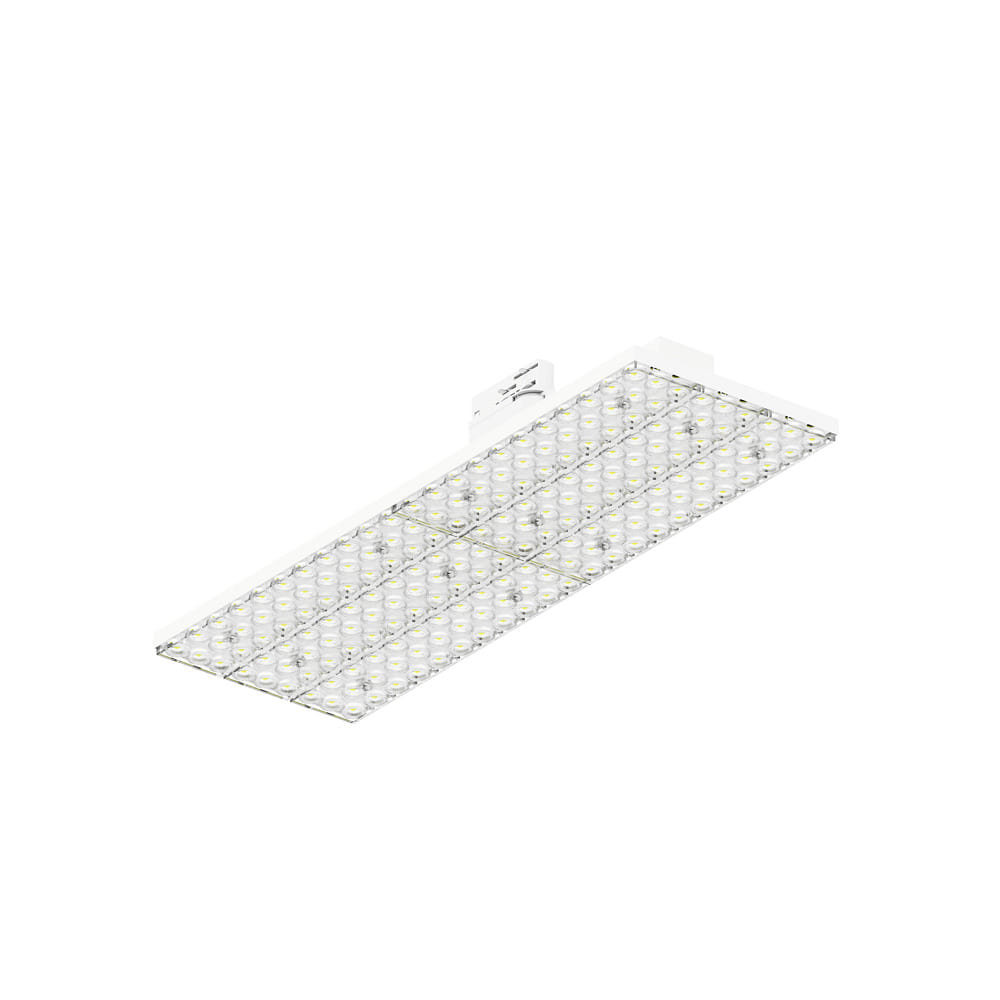

3-phase luminaire TRACK PANEL IP20, white dimmable

Modern Design and High-Quality Materials

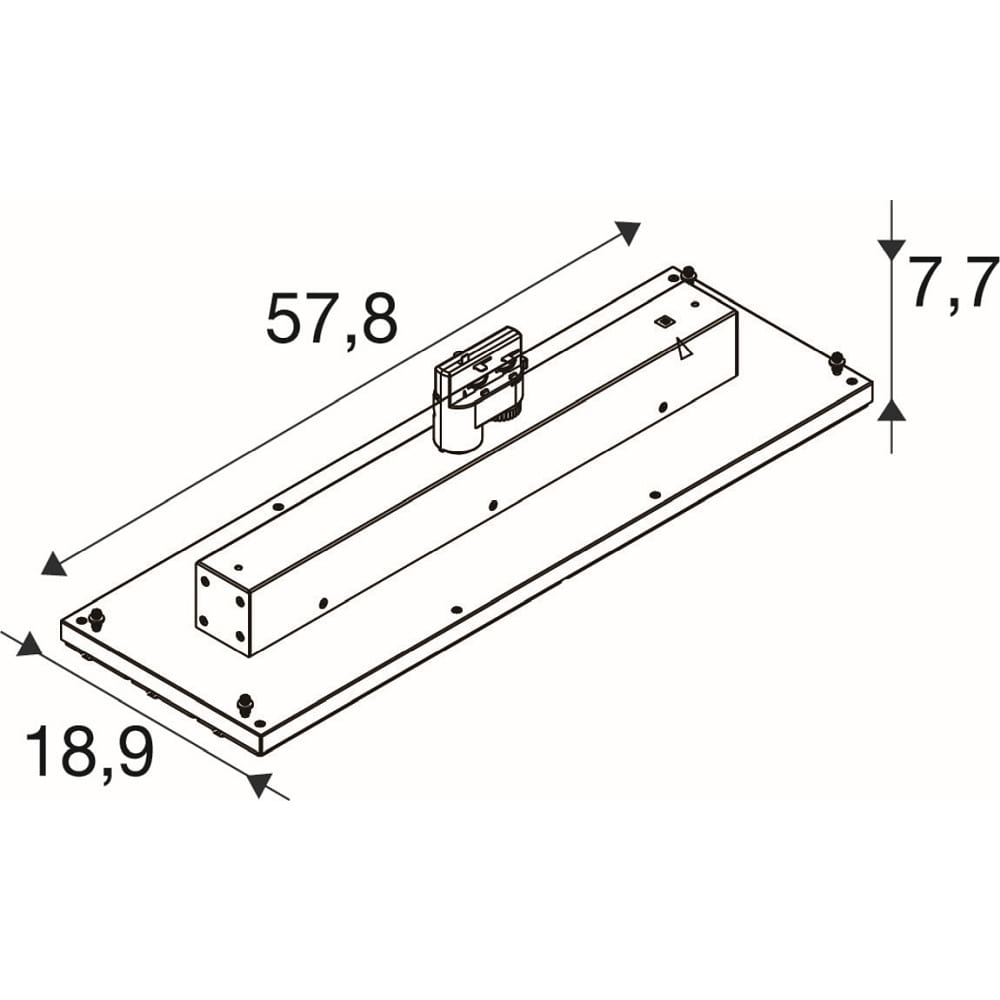

The LED 3-phase TRACK PANEL luminaire from SLV impresses with its elegant and functional design in timeless white. Made from robust steel, it offers not only durability but also a high-quality appearance that harmoniously fits into various environments. With compact dimensions of 57.8 cm length, 18.9 cm width, and 10.5 cm height, the luminaire is discreet yet present. The product is equipped with a track adapter that allows for easy and flexible installation.

Efficient and Adjustable Light Output

The TRACK PANEL luminaire operates at a power of 40 watts and achieves an impressive luminous efficacy of 169.23 lumens per watt. It offers two selectable light outputs with 6600 lumens for warm white light (3000K) and 12300 lumens for neutral white light (4000K). The color temperature can be adjusted stepwise, allowing the lighting to be optimally adapted to individual needs. The extremely wide beam light with a beam angle of over 80° ensures even illumination of large areas.

Intelligent DALI Dimming Function for More Comfort

The luminaire is equipped with DALI and DALI-2 dimming functions, enabling stepless control of light intensity. This creates a pleasant atmosphere while saving energy. The mains-powered LED driver is replaceable and included in the scope of delivery, simplifying maintenance and replacement. Thanks to the high color consistency (SDCM3), the light color remains constant throughout the entire service life, guaranteeing consistent quality.

Reliability and Safety in Operation

With protection class 1 and IP20 protection rating, the luminaire is safe to handle and suitable for many applications. It operates reliably at ambient temperatures from -20 to 40 degrees Celsius. Thanks to the integrated light distributor with diffuser lens, it provides glare-free and pleasant light distribution. The luminaire is not adjustable, ensuring stable and uniform illumination. Additionally, up to 19 luminaires can be connected to a B16 circuit breaker and up to 31 luminaires to a C16 circuit breaker.

Perfect Combination of Technology and Functionality

The 3-phase TRACK PANEL luminaire is a well-thought-out solution that combines technical precision and practical utility. The ability to individually control color temperature and light output makes it especially flexible. The combination of durable materials, high energy efficiency, and ease of use ensures sustainable and comfortable lighting. With its high-quality driver and simple installation via track adapters, it is the ideal choice for a modern and efficient lighting solution.
