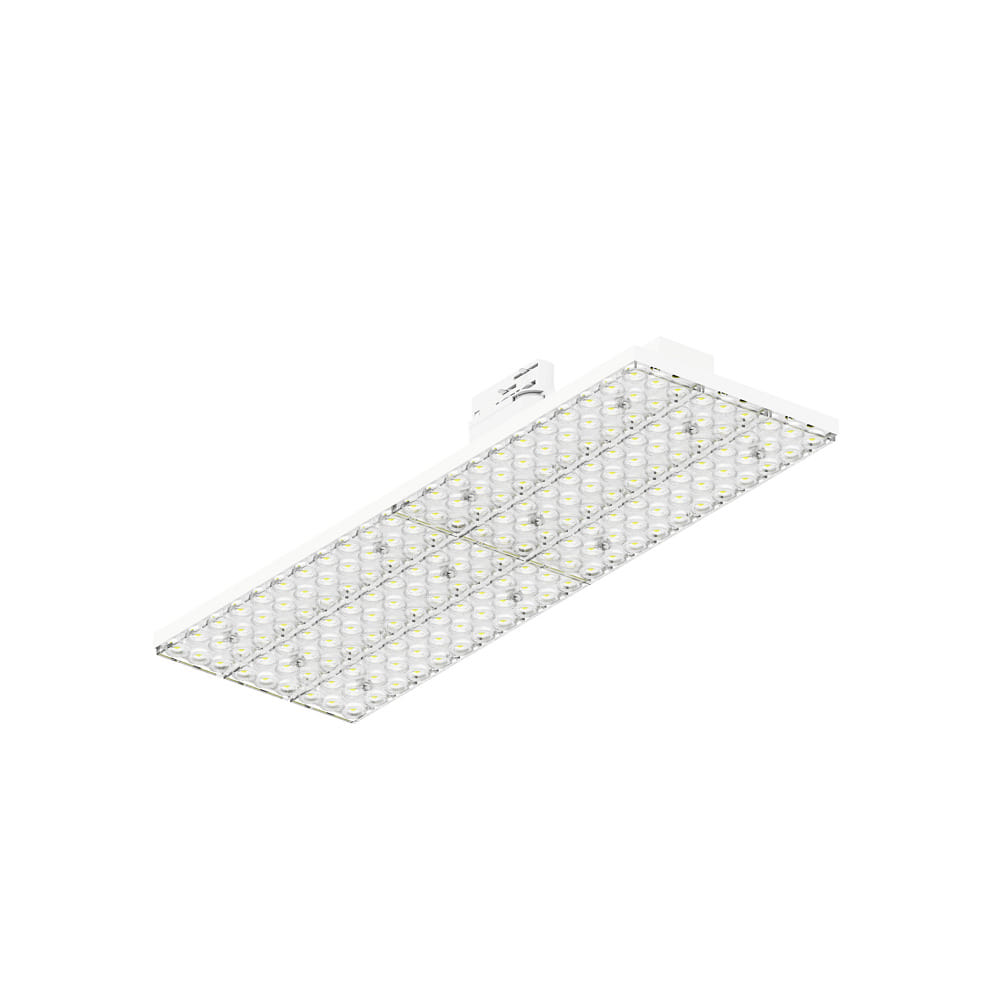

3-phase luminaire TRACK PANEL IP20, white

Efficient LED 3-Phase Luminaire with High Light Output

The LED 3-phase luminaire TRACK PANEL from SLV impresses with a powerful luminous efficacy of 165 lumens per watt and a maximum brightness of up to 12,000 lumens. With a power consumption of only 40 watts, this luminaire offers an efficient lighting solution that is also energy-saving. The light is evenly distributed thanks to the generous beam angle of 120°, optimally illuminating large areas.

Flexibly Selectable Color Temperatures for Different Moods

The luminaire is equipped with two stepwise adjustable color temperatures: warm white (3000K) and neutral white (4000K). This feature allows individual adjustment of the light color according to needs and creates a pleasant atmosphere. Color consistency is guaranteed by the McAdam ellipse SDCM3, ensuring uniform color quality without visible deviations.

Robust Design and Easy Installation

Made from high-quality steel in elegant white, the TRACK PANEL stands out with its robust and modern design. The dimensions of 57.8 x 18.9 x 10.5 cm make the luminaire compact and easy to integrate. Installation is straightforward via a track adapter that enables a quick and secure connection. The integrated driver is mains-controlled and exchangeable, simplifying maintenance and replacement.

Practical Technical Details for Versatile Use

The luminaire has protection class 1 and an IP20 rating, making it suitable for many applications. It operates reliably at ambient temperatures between -20°C and 40°C. The light is evenly distributed by a special diffuser lens, ensuring glare-free and pleasant lighting conditions. The luminaire is not adjustable but offers wide illumination due to its free-radiating design.

Maximum Safety and Compatibility in Operation

The TRACK PANEL LED luminaire can be operated with B16 circuit breakers for up to 20 luminaires and with C16 for up to 34 luminaires. This guarantees safe and reliable installation in larger lighting systems. The supplied driver is already included in the scope of delivery, so no additional components are needed. This well-thought-out technology makes the luminaire an efficient and durable solution for a wide range of lighting requirements.
