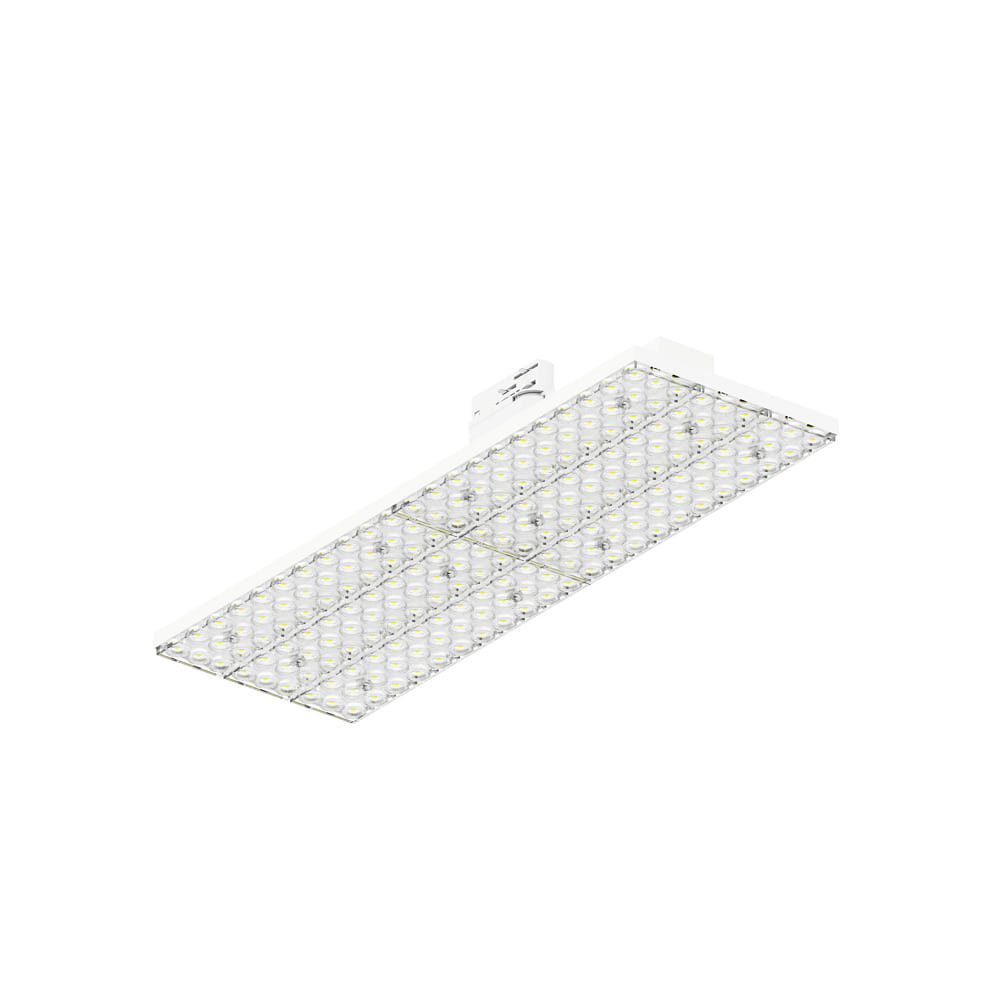

3-phase luminaire TRACK PANEL IP20, white dimmable

High-Quality LED 3-Phase Luminaire with Efficient Light Output

The LED 3-Phase luminaire TRACK PANEL from SLV impresses with its strong performance and modern technology. With a power consumption of 40 watts, it produces a luminous flux of up to 12,000 lumens, ensuring very bright and even illumination. The luminous efficacy is an impressive 169.23 lumens per watt, making the luminaire particularly energy-efficient. The housing made of robust white steel provides an appealing look and durability.

Flexibly Adjustable Light Color and Luminous Flux

This luminaire offers the option to select the color temperature stepwise between warm white (3000K) and neutral white (4000K). This allows the light to be individually adapted to different needs. Additionally, the luminous flux is continuously dimmable, enabling precise control of brightness. DALI and DALI-2 compatibility facilitates integration into intelligent lighting systems and ensures comfortable operation.

Thoughtful Design with Optimal Light Distribution

The TRACK PANEL features a wide beam angle of 120 degrees, which guarantees large-area and uniform illumination. The free-beam light distribution is achieved through a specially developed diffuser lens that provides soft and glare-free light emission. The luminaire is not adjustable, ensuring simple installation and a fixed light orientation.

Easy Installation and High Safety

The luminaire is connected via a power track adapter, allowing quick and flexible mounting. The scope of delivery includes a replaceable LED driver that operates with current control and ensures a long service life. Protection class 1 and protection rating IP20 provide safe operation at ambient temperatures ranging from -20 to 40 degrees Celsius. The maximum number of luminaires that can be operated on a circuit breaker is up to 31 with C16 and 19 with B16.

Precise Color Consistency and Sustainable Quality

With a color consistency according to the McAdam ellipse of SDCM3, the TRACK PANEL luminaire guarantees a consistent and high-quality light color without disturbing color deviations. The high-quality LED driver is replaceable, which facilitates maintenance and repair and extends the service life of the luminaire. This combination of technical sophistication and high-quality workmanship makes the SLV LED 3-Phase luminaire an excellent choice for diverse lighting requirements.
